RC110p ROPS

RC110PROPS cable harnesses Diagram

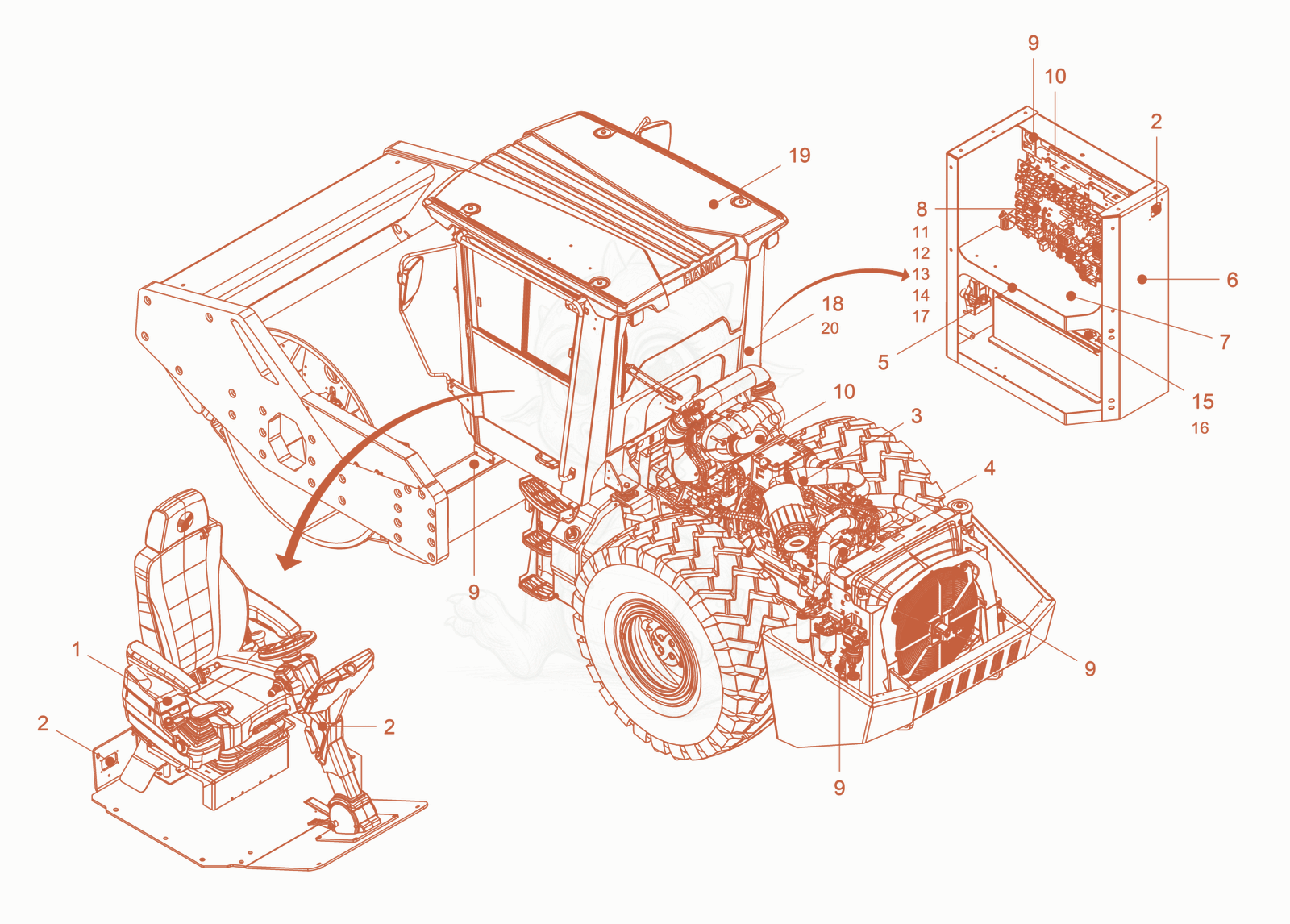

Exploded parts diagram of the cable harnesses of a Wacker Neuson RC110PROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100078975Not stocked
    wire harness widiag×1
  • 25100074394Not stocked
    cable harness×1
  • 35100075098Not stocked
    wire harness starter×1
  • 45100075103Not stocked
    wire harness alternator×1
  • 55100075054Not stocked
    ground cable×1
  • 65100074686Not stocked
    ground cable×1
  • 75100074693Not stocked
    battery cable×1
  • 85100023551Not stocked
    Cable harness×1
  • 95100078958Not stocked
    main wire harness×1
  • 105100078960Not stocked
    cable harness×1
  • 115100078962Not stocked
    cable harness×1
  • 125100078965Not stocked
    ground cable×1
  • 135100078968Not stocked
    cable harness×1
  • 145100035271
    $27.45
    cable harness - 5100035271×1
  • 155100075111Not stocked
    battery cable×1
  • 165100074704Not stocked
    cable harness×1
  • 175100035274
    $1,382.28
    cable harness - 5100035274×1
  • 185100075132Not stocked
    cable harness×1
  • 195100078978Not stocked
    wire harness operating cabin×1
  • 205100075145Not stocked
    cable harness×1
