RC110p ROPS

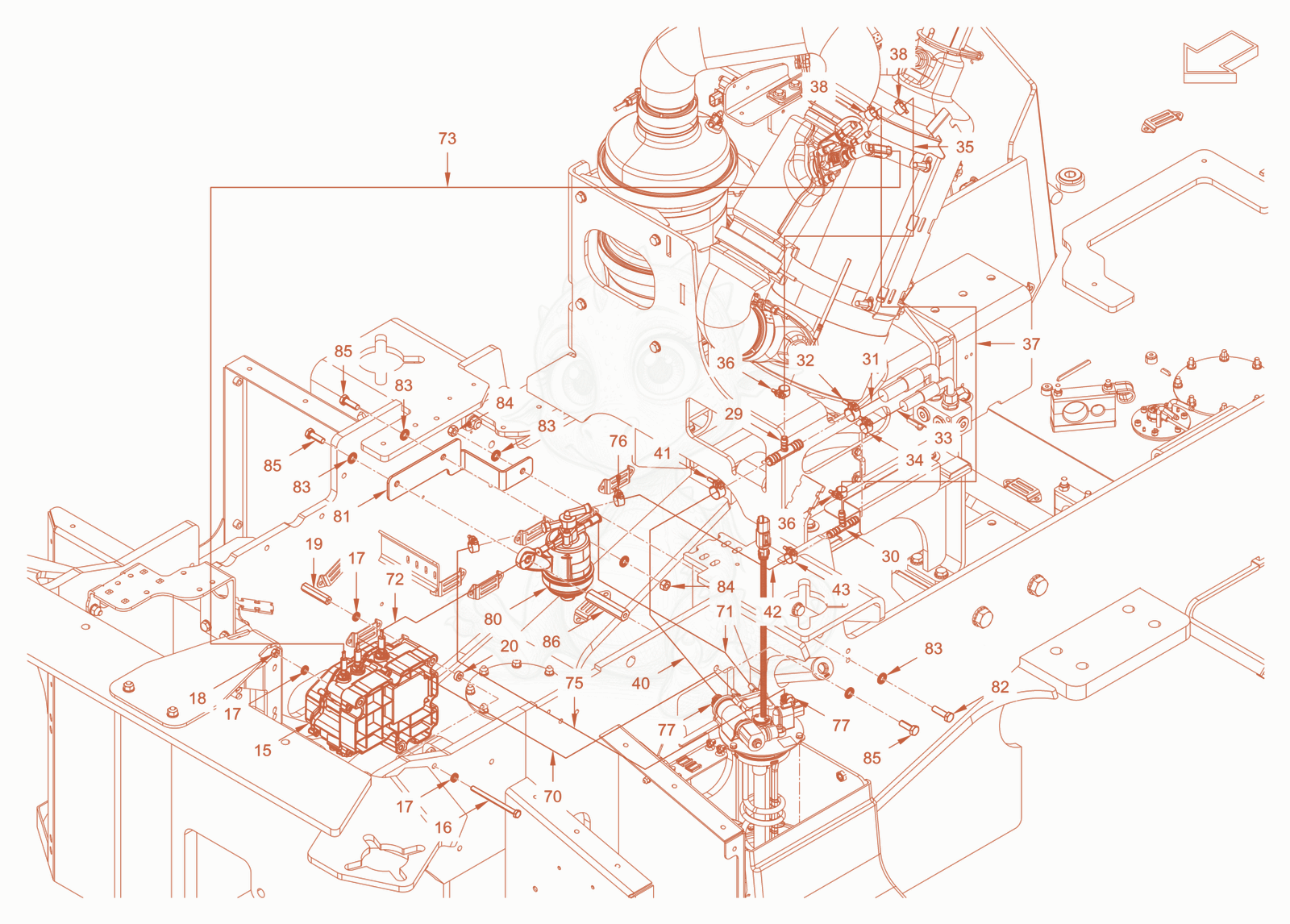

RC110PROPS exhaust aftertreatment Diagram

Exploded parts diagram of the exhaust aftertreatment of a Wacker Neuson RC110PROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 155100078823Not stocked
    def dosing unit pump×1
  • 165100078824Not stocked
    hexagon screw×3
  • 175100012966
    $1.57
    Locking washer - 5100012966×6
  • 185100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 195100074886Not stocked
    bolt×1
  • 205100011870
    $2.79
    Distance bush - 5100011870×3
  • 295100078826Not stocked
    tee fitting×1
  • 305100078827Not stocked
    tee fitting×1
  • 315100074607Not stocked
    hose×1
  • 325100035003Not stocked
    hose clamp×1
  • 335100074628Not stocked
    hose×1
  • 345100064077Not stocked
    hose clamp×1
  • 355100013217
    $18.03
    Cooling-water hose - 5100013217×0.3
  • 365100078828Not stocked
    hose clamp×2
  • 375100024981
    $31.08
    cooling-water hose - 5100024981×0.57
  • 385100034989
    $4.59
    hose clamp - 5100034989×2
  • 405100074633Not stocked
    hose×1.05
  • 415100035003Not stocked
    hose clamp×1
  • 425100074639Not stocked
    hose×0.48
  • 435100064077Not stocked
    hose clamp×1
  • 705100078829Not stocked
    def line×1
  • 715100078830Not stocked
    def line×1
  • 725100078831Not stocked
    def line×1
  • 735100078832Not stocked
    def line×1
  • 755100074639Not stocked
    hose×0.67
  • 765100064077Not stocked
    hose clamp×3
  • 775100035003Not stocked
    hose clamp×1
  • 805100078885Not stocked
    filter×1
  • 815100074678Not stocked
    holder×1
  • 825100013416
    $1.49
    Hexagon screw - 5100013416×1
  • 835100012967
    $1.57
    Locking washer - 5100012967×6
  • 845100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 855100012617
    $2.84
    Hexagon screw - 5100012617×3
  • 865100074689Not stocked
    threaded bolt×1
