RC50p

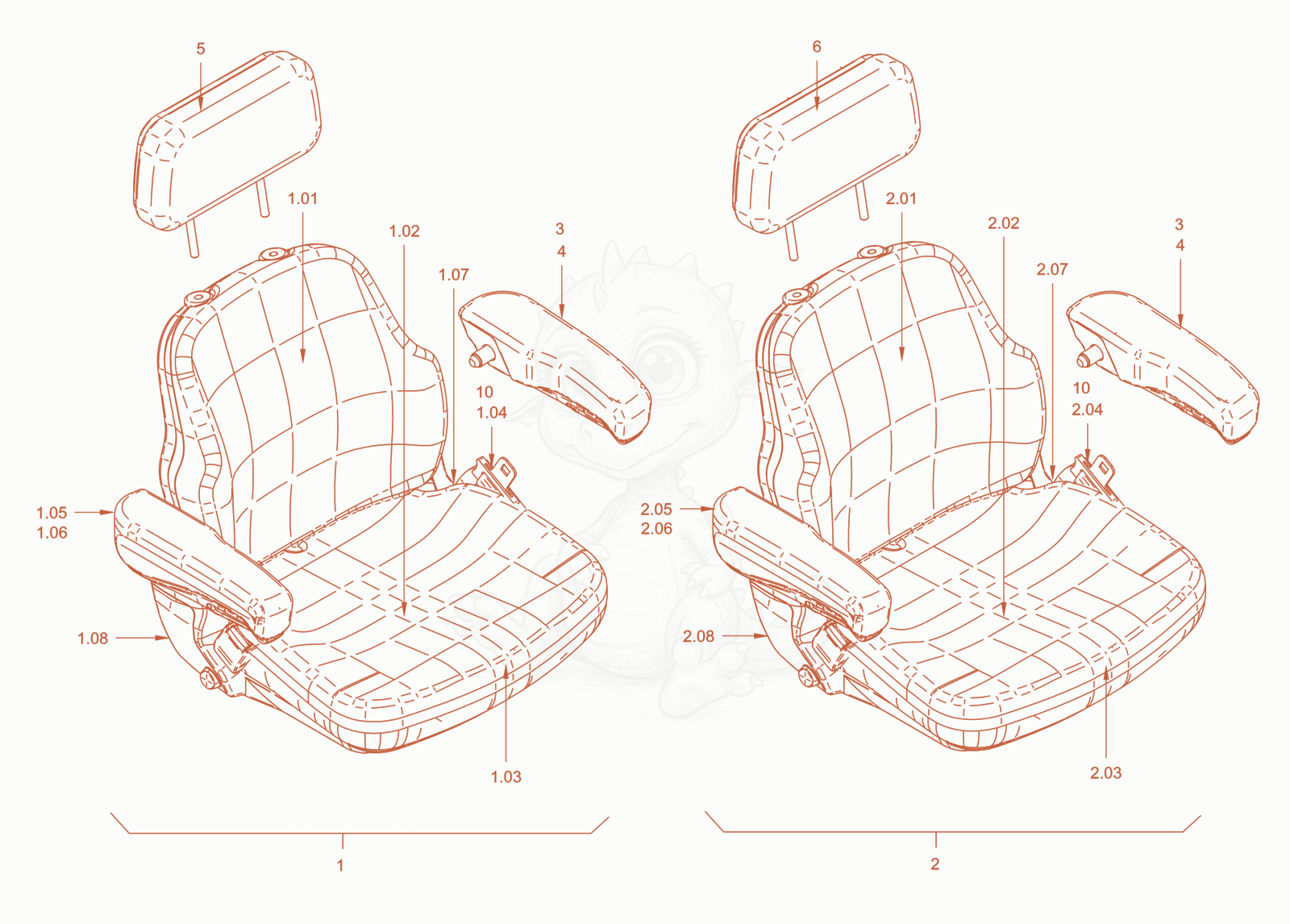

RC50PDPFCAB operator's seat withadjustment Diagram

Exploded parts diagram of the operator's seat withadjustment of a Wacker Neuson RC50PDPFCAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100023019
    $480.16
    lap belt - 5100023019Unknown×1
  • 15100023051
    $608.62
    seat contact switch - 5100023051Unknown×1
  • 15100023054
    $91.53
    clamp bolt - 5100023054Unknown×1
  • 15100023123
    $1,118.02
    backrest cushion, cloth - 5100023123Unknown×1
  • 15100023125
    $879.97
    seat cushion, cloth - 5100023125Unknown×1
  • 15100023187
    $34.41
    covering part - 5100023187Unknown×1
  • 15100023188
    $41.94
    covering part - 5100023188Unknown×1
  • 15100023304
    $457.55
    armrest - 5100023304Unknown×1
  • 15100040540Not stocked
    seat upper part, cloth×1
  • 25100040541Not stocked
    seat upper part, imit. leather×1
  • 25100023304
    $457.55
    armrest - 5100023304×1
  • 25100023188
    $41.94
    covering part - 5100023188×1
  • 25100023187
    $34.41
    covering part - 5100023187×1
  • 25100023054
    $91.53
    clamp bolt - 5100023054×1
  • 25100023051
    $608.62
    seat contact switch - 5100023051×1
  • 25100023029
    $757.01
    seat cushion, imitat. leather - 5100023029×1
  • 25100023028
    $813.01
    backrest cushion, imi. leather - 5100023028×1
  • 25100023019
    $480.16
    lap belt - 5100023019×1
  • 35100023303
    $457.55
    armrest - 5100023303×1
  • 45100023054
    $91.53
    clamp bolt - 5100023054×1
  • 55100022988
    $500.37
    seat extension, cloth - 5100022988×1
  • 65100022987
    $626.20
    seat extension, imit. leather - 5100022987×1
  • 105100025888
    $859.63
    lap belt - 5100025888×1
