RC50p

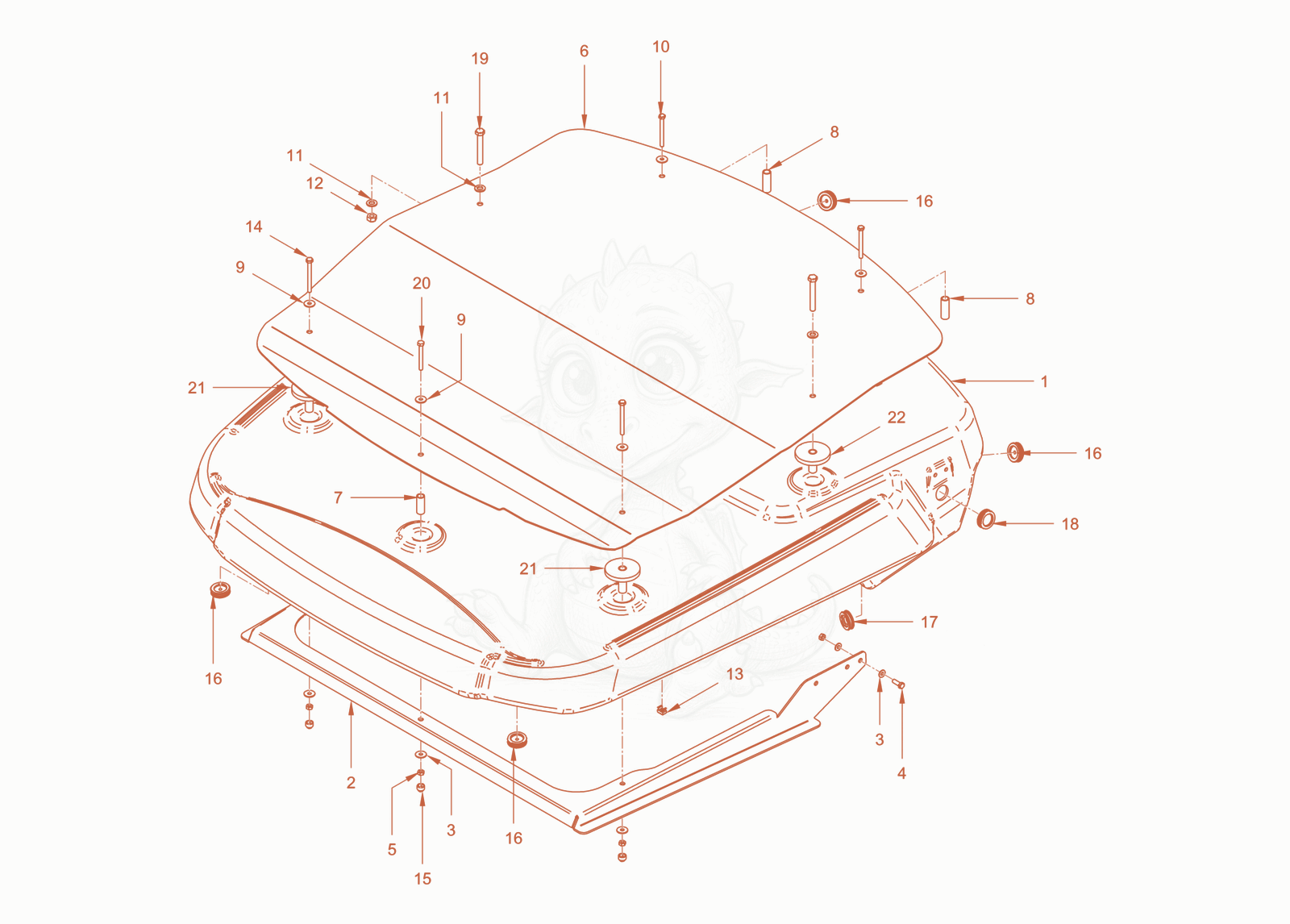

RC50PDPFCAB fops Diagram

Exploded parts diagram of the fops of a Wacker Neuson RC50PDPFCAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100080170Not stocked
    protective roof×1
  • 25100080172Not stocked
    metal plate×1
  • 35100012966
    $1.57
    Locking washer - 5100012966×12
  • 45100012613
    $1.57
    Hexagon screw - 5100012613×6
  • 55100011476
    $1.49
    Safety nut - 5100011476×9
  • 65100080173Not stocked
    canopy, fops×1
  • 75100080174Not stocked
    pipe×1
  • 85100080175Not stocked
    pipe×2
  • 95100013359Not stocked
    Washer×8
  • 105100023200
    $3.15
    hexagon screw - 5100023200×2
  • 115100013577
    $1.57
    Washer - 5100013577×4
  • 125100012602
    $1.57
    Safety nut - 5100012602×2
  • 135100034716
    $6.12
    clip nut - 5100034716×2
  • 145100059529Not stocked
    hexagon screw×2
  • 155100080176Not stocked
    protective cap×4
  • 165100080177Not stocked
    cable support sleeve×4
  • 175100080179Not stocked
    cable support sleeve×1
  • 185100034805
    $14.67
    cable support sleeve - 5100034805×1
  • 195100080180Not stocked
    hexagon screw×2
  • 205100040612Not stocked
    hexagon screw×1
  • 215100080181Not stocked
    sleeve×2
  • 225100080182Not stocked
    sleeve×2
