RD11AEC ROLLER,DOUBLE DRUM

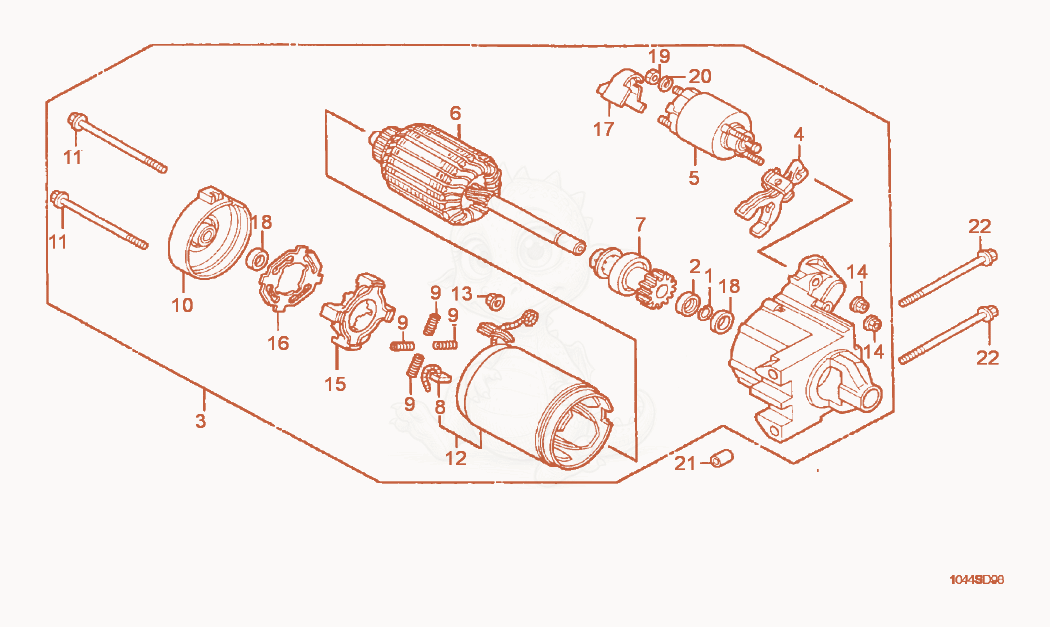

RD11AEC Starter Diagram
- RING-SNAP - 5000152566×1
- RING-SET STOP,CLUTCH - 5000152565×1
- MOTOR-ASSY,STARTER - 5000152567×1
- LEVER-DRIVE,PINION - 5000152568×1
- SWITCH-MAGNET - 5000152569×1
- ROTOR-COMPLETE - 5000152570×1
- CLUTCH-COMPLETE - 5000152571×1
- BRUSH - 5000152572×4
- SPRING-BRUSH - 5000152573×4
- cover - 5000152574×1
- BOLT-THROUGH - 5000152575×2
- YOKE COMPLETE - 5000152576×1
- NUT-HEX 8MM - 5000152577×1
- NUT-FLANGE 5MM - 5000152578×2
- HOLDER-BRUSH - 5000152579×1
- INSULATOR-HOLDER,BRUSH - 5000152580×1
- COVER-TERMINAL - 5000152581×1
- BEARING-A - 5000152582×2
- NUT M8,HEX - 5000071076×1
- WASHER-SPRING 8MM - 5000152584×1
- PIN-DOWEL (10X12) - 5000151748×2
- BOLT-FLANGE (8X110) - 5000151749×2
