RD11AEC ROLLER,DOUBLE DRUM

RD11AEC Rear Drum Diagram

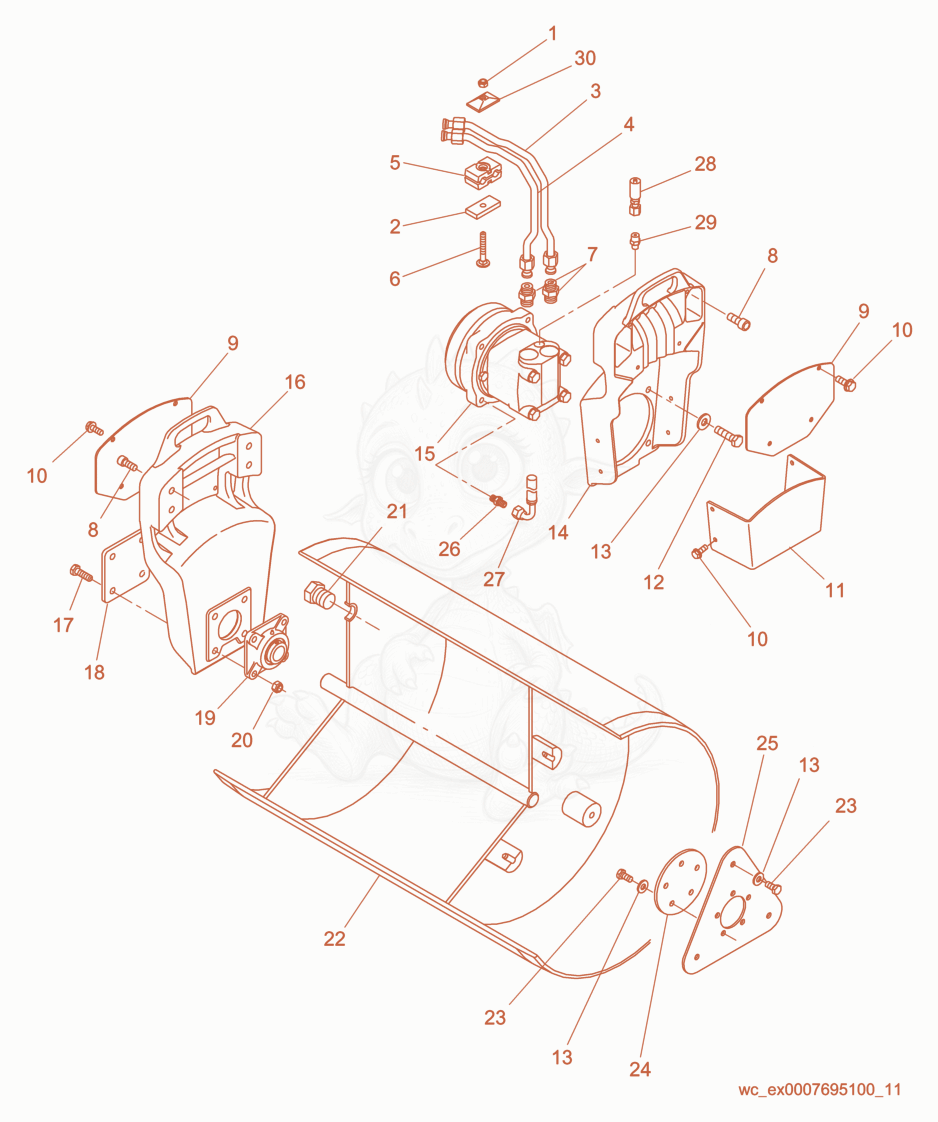

Exploded parts diagram of the Rear Drum of a Wacker Neuson RD11AEC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×1
  • 25000111952
    $83.47
    SPACER-TUBE - 5000111952×1
  • 35000111271
    $50.56
    TUBE-ASSY. - 5000111271×1
  • 45000111270
    $49.56
    TUBE-ASSY. - 5000111270×1
  • 55000111267
    $5.84
    CLAMP-TWIN SET - 5000111267×1
  • 65000111328
    $0.68
    BOLT-CARRIAGE, M8X60 - 5000111328×1
  • 75000080734
    $0.56
    O-RING .924 X.116 DURO90 3-912 - 5000080734×1
  • 75000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 75000112404
    $13.22
    FITTING-HYD. 8-12 ST. - 5000112404×2
  • 85000017087
    $2.33
    SCREW M12 X 30 10.9,SOC - 5000017087×8
  • 95000111119
    $19.47
    COVER-DRUM SUPPORT P-5000176420 - 5000111119×2
  • 105000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×12
  • 115000111510
    $71.90
    GUARD-DRIVE MOTOR - 5000111510×1
  • 125000011420
    $1.38
    SCREW M12 X 45 HX.HD. - 5000011420×4
  • 135000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×12
  • 145000111340
    $612.01
    BRACKET-DRUM SUPPORT - 5000111340×1
  • 155000111288
    $3,589.16
    MOTOR-WHEEL W/BRAKE - 5000111288×1
  • 165000111264
    $521.69
    BRACKET-DRUM SUPPORT P-5000176420 - 5000111264×1
  • 175000011300
    $0.93
    SCREW M12 X 45 HX.HD. - 5000011300×4
  • 185000112692
    $9.20
    COVER-BEARING P-5000176420 - 5000112692×1
  • 195000111048
    $51.29
    FLANGE-BEARING - 5000111048×1
  • 205000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 215000078305
    $8.54
    FITTING-PLUG 1 NPT,HEX.HEAD - 5000078305×1
  • 225000111133
    $2,906.41
    DRUM-STATIC - 5000111133×1
  • 235000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×8
  • 245000113965
    $28.84
    PLATE-BACKING - 5000113965×1
  • 255000111511
    $909.87
    PLATE-DRIVE P-5000112007 - 5000111511×1
  • 265000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 265000111282
    $3.22
    FITTING-HYD,SAE #4 - 5000111282×1
  • 265000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×1
  • 275000111310
    $110.06
    HOSE-ASSEMBLY - 5000111310×1
  • 285000111304
    $71.90
    HOSE-ASSEMBLY - 5000111304×1
  • 295000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 295000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
  • 295000112405
    $5.40
    FITTING-HYD. 4-6 ST. - 5000112405×1
  • 305000075953
    $1.54
    PLATE-HOSE SUPPORT COVER - 5000075953×1
