RD11AEC ROLLER,DOUBLE DRUM

RD11AEC Engine Compartment/Hydraulics Diagram

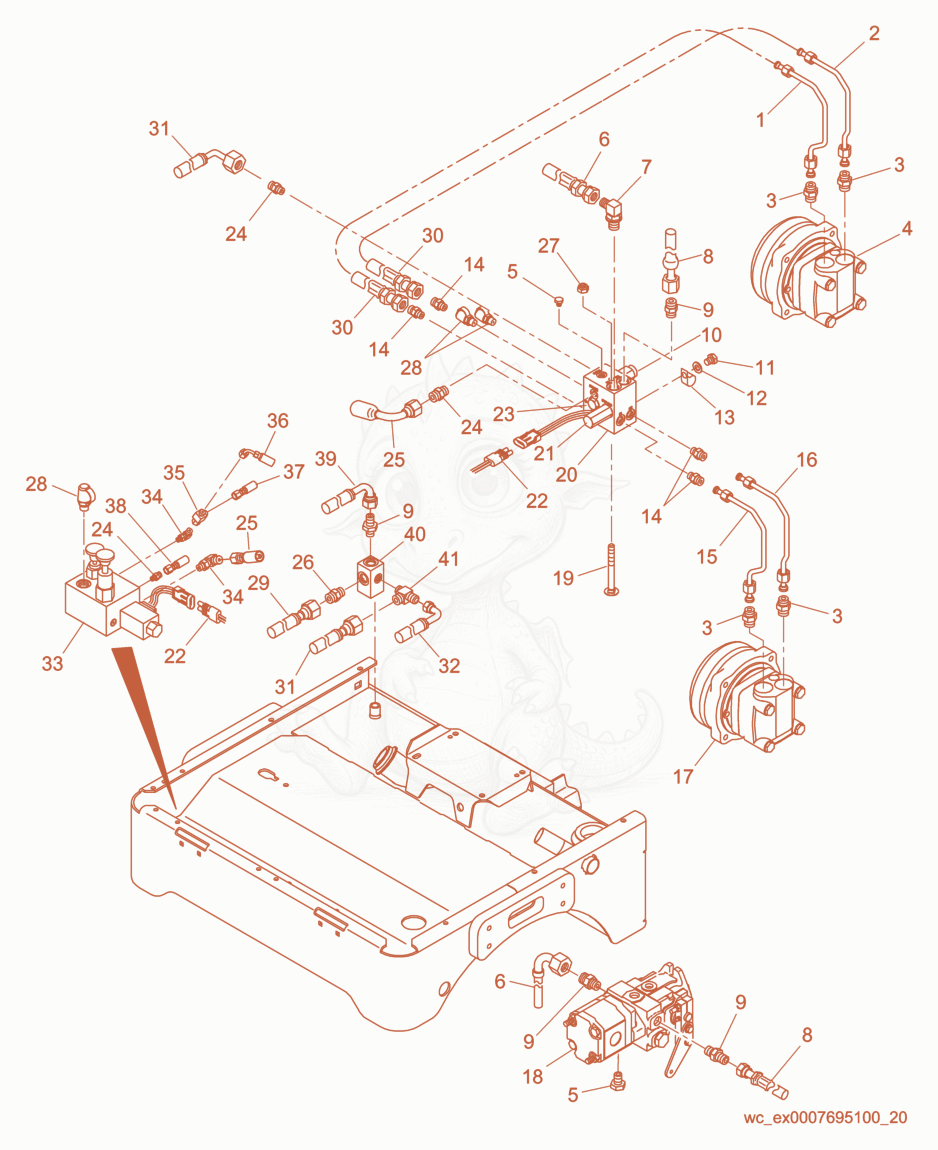

Exploded parts diagram of the Engine Compartment/Hydraulics of a Wacker Neuson RD11AEC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000111270
    $49.56
    TUBE-ASSY. - 5000111270×1
  • 25000111271
    $50.56
    TUBE-ASSY. - 5000111271×1
  • 35000112404
    $13.22
    FITTING-HYD. 8-12 ST. - 5000112404×4
  • 35000080734
    $0.56
    O-RING .924 X.116 DURO90 3-912 - 5000080734×1
  • 35000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 45000111288
    $3,589.16
    MOTOR-WHEEL W/BRAKE - 5000111288×1
  • 55000114590
    $2.13
    PLUG-HOLLOW HEX,SAE #4 - 5000114590×1
  • 65000111295
    $75.17
    HOSE-ASSEMBLY - 5000111295×1
  • 75000111272
    $12.45
    FITTING-HYD,SAE #8 90 ELBOW - 5000111272×1
  • 75000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 75000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 85000111296
    $67.16
    HOSE-ASSEMBLY - 5000111296×1
  • 95000081583
    $4.00
    FITTING #8 - 5000081583×4
  • 95000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 95000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 105000118669
    $345.51
    VALVE-3000PSI RED #10 - 5000118669×1
  • 115000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×1
  • 125000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 135000111274
    $0.58
    CLAMP-HOSE - 5000111274×1
  • 145000078816
    $4.99
    FITTING-MALE ADAPTER,STRAIGHT - 5000078816×4
  • 155000111268
    $36.90
    TUBE-ASSY. - 5000111268×1
  • 165000111269
    $50.56
    TUBE-ASSY. - 5000111269×1
  • 175000111287
    $4,667.28
    MOTOR-WHEEL W/BRAKE - 5000111287×1
  • 185000111062
    $3,582.00
    PUMP-HYDRAULIC, DRIVE - 5000111062×1
  • 195000119309
    $2.46
    BOLT-CARR.M10X120 CL4.6 - 5000119309×1
  • 205000118385
    $868.05
    NLA MANIFOLD-BYPASS ASSEMBLY - 5000118385×1
  • 215000111273
    $338.51
    VALVE-SOLENOID,N.O. - 5000111273×1
  • 225000152768
    $367.02
    WIRING HARNESS,MAIN,EC - 5000152768×1
  • 235000118668
    $31.82
    VALVE-SHUTTLE #8 - 5000118668×1
  • 245000111282
    $3.22
    FITTING-HYD,SAE #4 - 5000111282×2
  • 255000118666
    $50.41
    HOSE-ASSEMBLY - 5000118666×1
  • 265000111276
    $6.36
    FITTING-HYD,SAE #6-8 - 5000111276×1
  • 265000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 265000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
  • 275000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 285000160864
    $29.02
    FITTING-TEST W/METAL CAP - 5000160864×3
  • 295000111307
    $53.91
    HOSE-ASSEMBLY - 5000111307×1
  • 305000111353
    $35.49
    HOSE-ASSEMBLY - 5000111353×2
  • 315000118667
    $54.29
    HOSE-ASSEMBLY - 5000118667×1
  • 325000111305
    $50.46
    HOSE-ASSEMBLY - 5000111305×1
  • 335000111289
    $1,720.25
    MANIFOLD-BRAKE CONTROL - 5000111289×1
  • 345000111285
    $4.64
    FITTING-HYD,SAE #4 90 ELBOW - 5000111285×2
  • 345000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 345000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×1
  • 355000111280
    $19.56
    FITTING-HYD,SAE#4 SWVL RUN TEE - 5000111280×1
  • 355000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×2
  • 365000111309
    $110.61
    HOSE-ASSEMBLY - 5000111309×1
  • 375000111310
    $110.06
    HOSE-ASSEMBLY - 5000111310×1
  • 385000111308
    $31.14
    HOSE-ASSEMBLY - 5000111308×1
  • 395000111302
    $88.51
    HOSE-ASSEMBLY - 5000111302×1
  • 405000111084
    $487.91
    MANIFOLD-RETURN - 5000111084×1
  • 415000111278
    $19.62
    FITTING-HYD,SAE #4 RUN TEE - 5000111278×1
  • 415000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 415000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×1
