RD15-ROLLER,DOUBLE DRUM

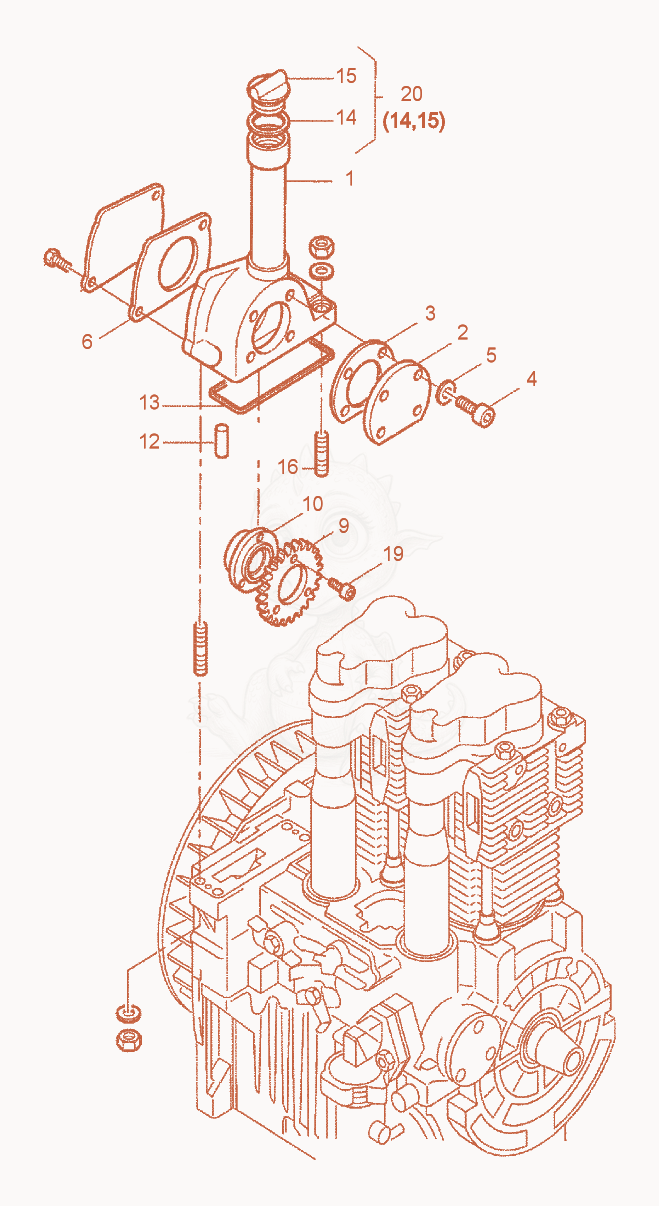

RD15 Pump cpl. Diagram
- Housing - 5000107452×1
- Cover - 5000107453×1
- GASKET - 5000107454×1
- SCREW-COUNTERSINK - 5000095000×4
- SEAL-RING 6.5 X 9.5 - 5000013440×4
- GASKET - 5000107455×2
- GEAR - 5000107456×1
- CLUTCH-HUB - 5000107457×1
- STUD-CYLINDER 6M6X14 9 - 5000107458×2
- GASKET - 5000107459×1
- RING-SEALING - 5000151217×1
- STUD M8 X 30,10.9 A3C - 5000129515×2
- SCREW M6 X 16 SOC.HD. - 5000011553×3
- CAP-SEALING,COMPL - 5000128851×1
