RD15-ROLLER,DOUBLE DRUM

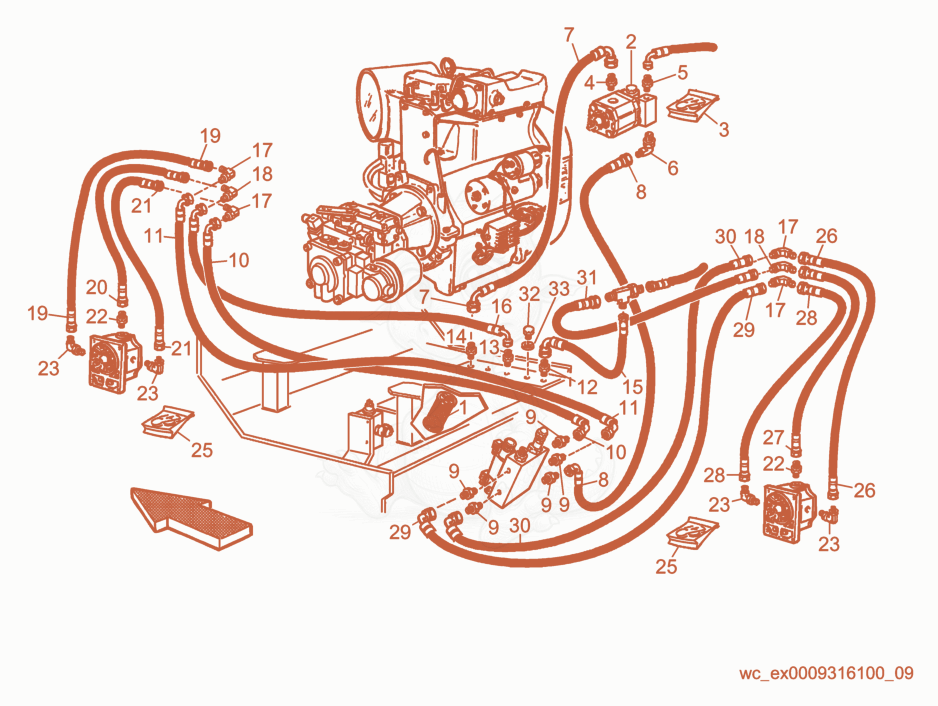

RD15 Vibrating Hydraulic System Diagram
- FILTER-OIL - 5000156825×1
- PUMP-HYDRAULIC - 5000157666×1
- KIT-GASKET - 5000157667×1
- FITTING - 5000112912×1
- NLA FITTING-NIPPLE - 5000113318×1
- connector - 5000157631×1
- hose - 5000157658×1
- hose - 5000157659×1
- NLA FITTING-NIPPLE - 5000113318×5
- hose - 5000157636×1
- hose - 5000157637×1
- NLA FITTING-NIPPLE - 5000113318×1
- NLA FITTING-NIPPLE - 5000113318×1
- FITTING - 5000112912×1
- hose - 5000157663×1
- hose - 5000157634×1
- NLA CONNECTOR - 5000113532×4
- NLA CONNECTOR - 5000112928×2
- NLA HOSE - 5000157656×1
- hose - 5000157635×1
- hose - 5000157645×1
- NLA FITTING - 5000112911×2
- NLA CONNECTOR - 5000113528×4
- gasket set - 5000156803×2
- hose - 5000157708×1
- NLA HOSE - 5000157707×1
- hose - 5000157709×1
- hose - 5000157642×1
- hose - 5000157642×1
- hose - 5000157648×1
- PLUG - 5000112899×1
- WASHER-COPPER - 5000112840×1
