RD24e-100

RD24-100E roller drum with oscillator Diagram

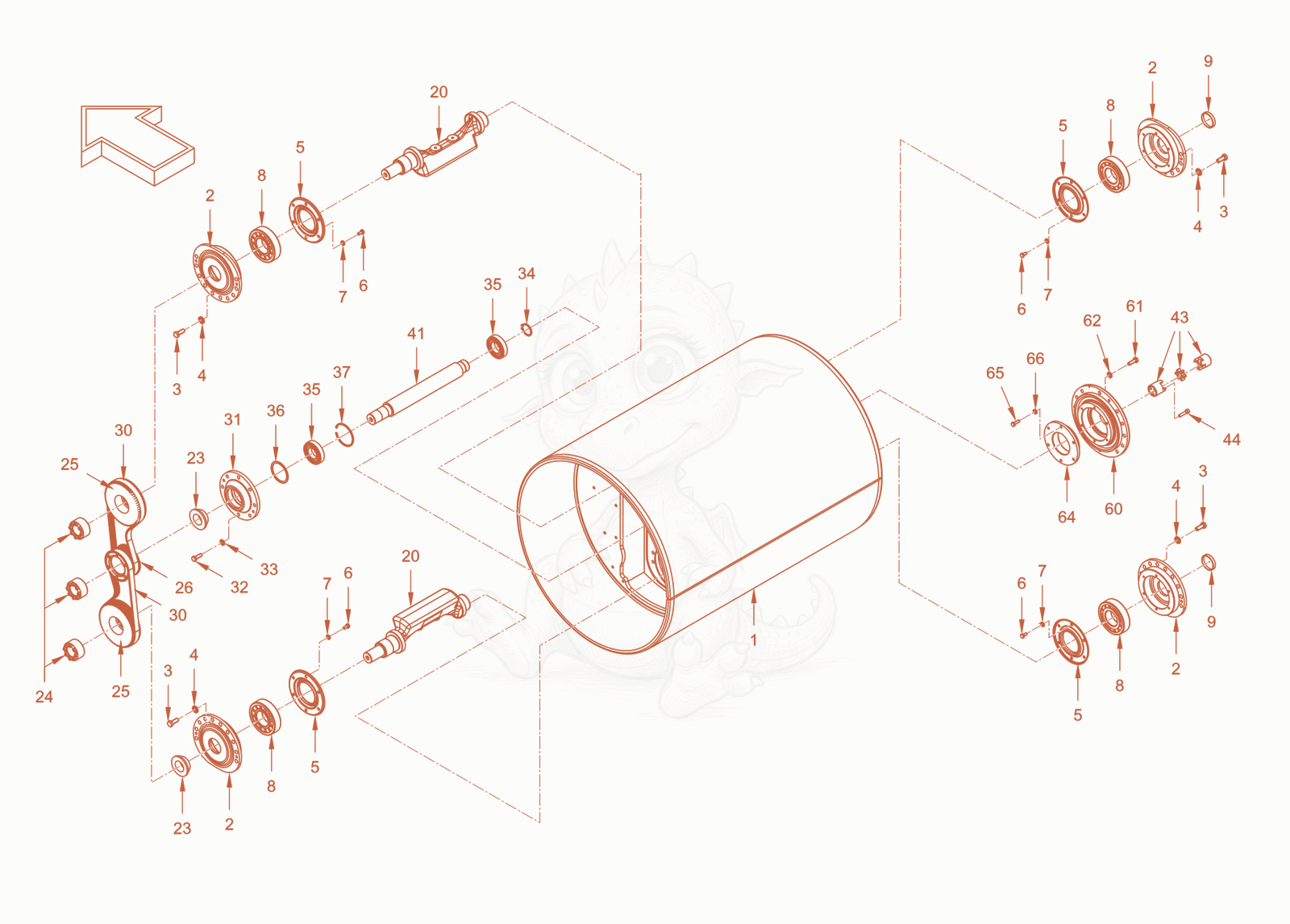

Exploded parts diagram of the roller drum with oscillator of a Wacker Neuson RD24-100E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013237Not stocked
    Roller drum×1
  • 25100013238
    $725.67
    Flange - 5100013238×4
  • 35100012525
    $2.27
    Hexagon screw - 5100012525×40
  • 45100012968
    $1.57
    Locking washer - 5100012968×40
  • 55100012003
    $45.83
    Cover - 5100012003×4
  • 65100012516
    $1.57
    Hexagon screw - 5100012516×24
  • 75100012966
    $1.57
    Locking washer - 5100012966×24
  • 85100012226
    $328.70
    Cylindrical roller bearing - 5100012226×4
  • 95100011663
    $46.79
    Cap - 5100011663×2
  • 205100066896Not stocked
    unbalance shaft×2
  • 235100059495Not stocked
    distance ring×2
  • 245100048638Not stocked
    annular spring×3
  • 255100073223Not stocked
    toothed belt pulley×2
  • 265100073225Not stocked
    toothed belt pulley×1
  • 305100073227Not stocked
    toothed belt×2
  • 315100012975
    $1,072.74
    Flange - 5100012975×1
  • 325100012522
    $1.49
    Hexagon screw - 5100012522×8
  • 335100012967
    $1.57
    Locking washer - 5100012967×8
  • 345100012949
    $10.43
    Locking ring - 5100012949×1
  • 355100073229Not stocked
    grooved ball bearing×2
  • 365100012974
    $52.21
    Ring - 5100012974×1
  • 375100012971
    $7.47
    Locking ring - 5100012971×1
  • 415100066898Not stocked
    drive shaft×1
  • 435100012088
    $338.34
    Coupling - 5100012088×1
  • 445100013511
    $1.57
    Cheese-head screw - 5100013511×3
  • 605100012315
    $935.46
    Flange - 5100012315×1
  • 615100012522
    $1.49
    Hexagon screw - 5100012522×12
  • 625100012967
    $1.57
    Locking washer - 5100012967×12
  • 645100013349
    $167.22
    Flanged bearing - 5100013349×1
  • 655100012519
    $1.57
    Hexagon screw - 5100012519×6
  • 665100012966
    $1.57
    Locking washer - 5100012966×6
