RD24e-100

RD24-100E operator's seat withadjustment Diagram

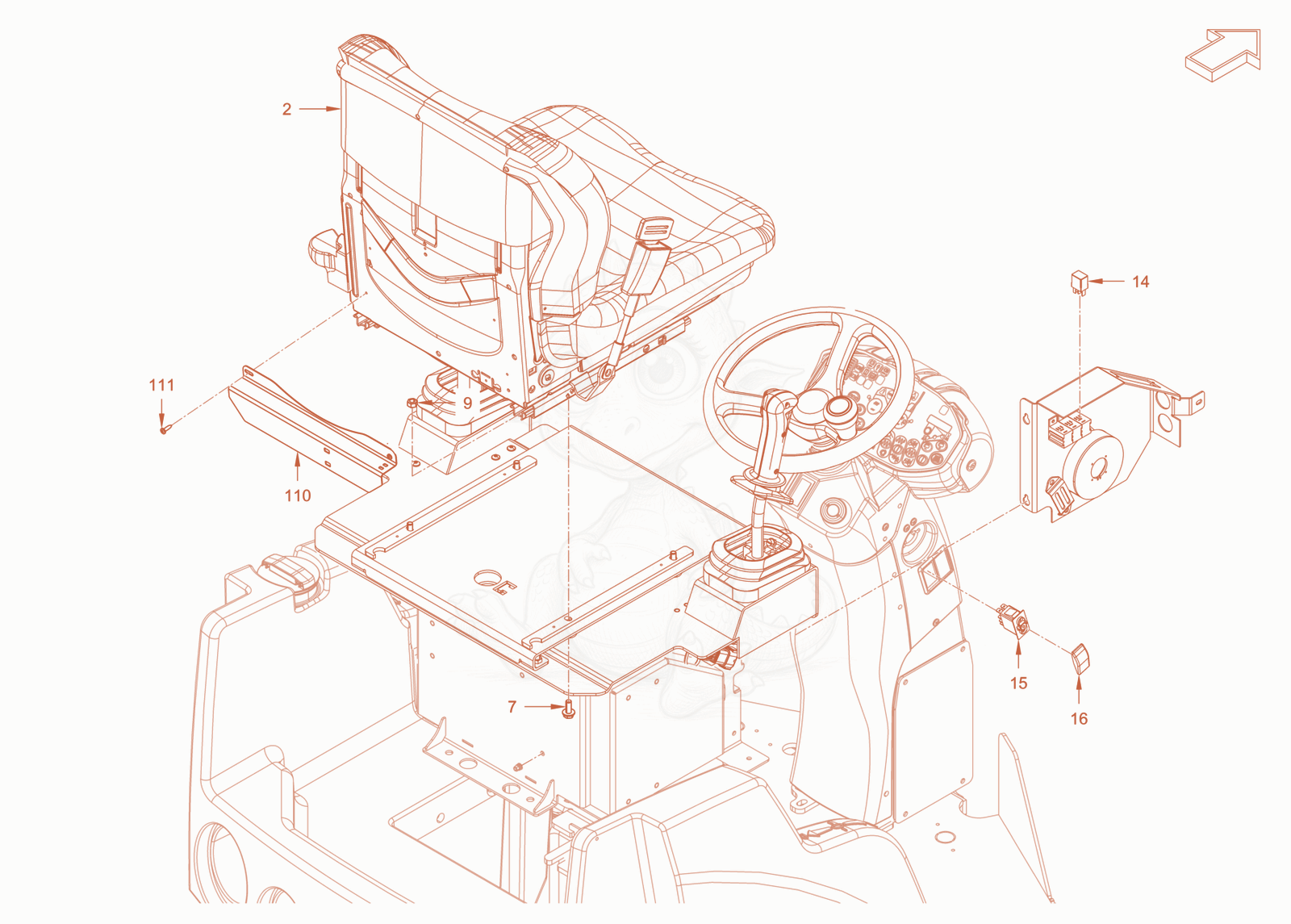

Exploded parts diagram of the operator's seat withadjustment of a Wacker Neuson RD24-100E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100029596
    $4,885.58
    driver's seat - 5100029596×1
  • 75100064082Not stocked
    safety screw×4
  • 95100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 145100073112Not stocked
    relay×1
  • 155100011579
    $102.54
    Switch - 5100011579×1
  • 165100011938Not stocked
    Bogie, seat heating×1
  • 1105100012306
    $50.11
    Protecting plate - 5100012306×1
  • 1115100011634
    $1.57
    Sheet metal screw - 5100011634×2
