RD24e-100

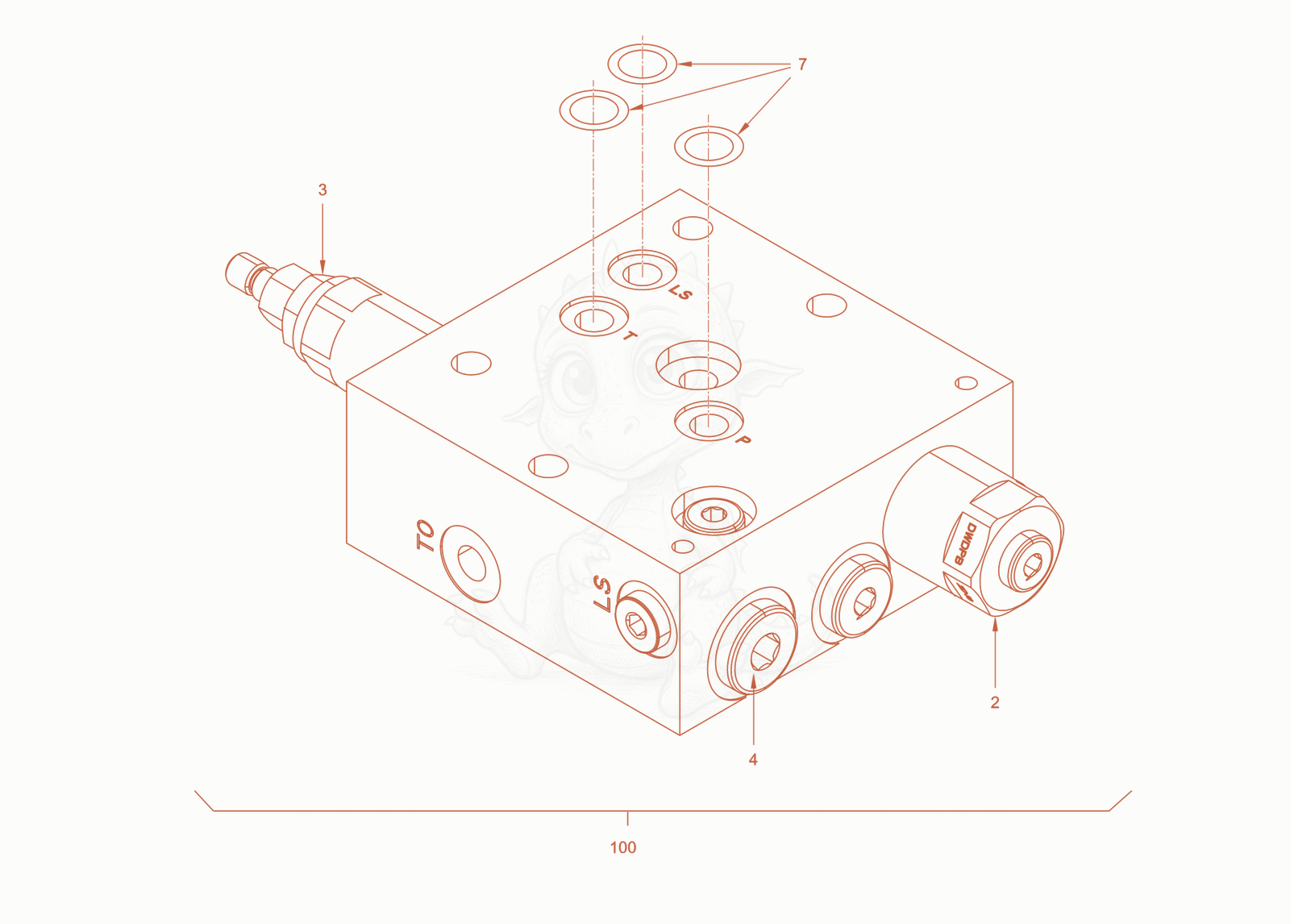

RD24-100E valve block Diagram

Exploded parts diagram of the valve block of a Wacker Neuson RD24-100E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100077766Not stocked
    pressure-relief valve×1
  • 35100077760Not stocked
    pressure-relief valve×1
  • 45100077734Not stocked
    control valve×1
  • 75100077697Not stocked
    o-ring seal×3
  • 1005100073246Not stocked
    valve×1
