RD24e-100

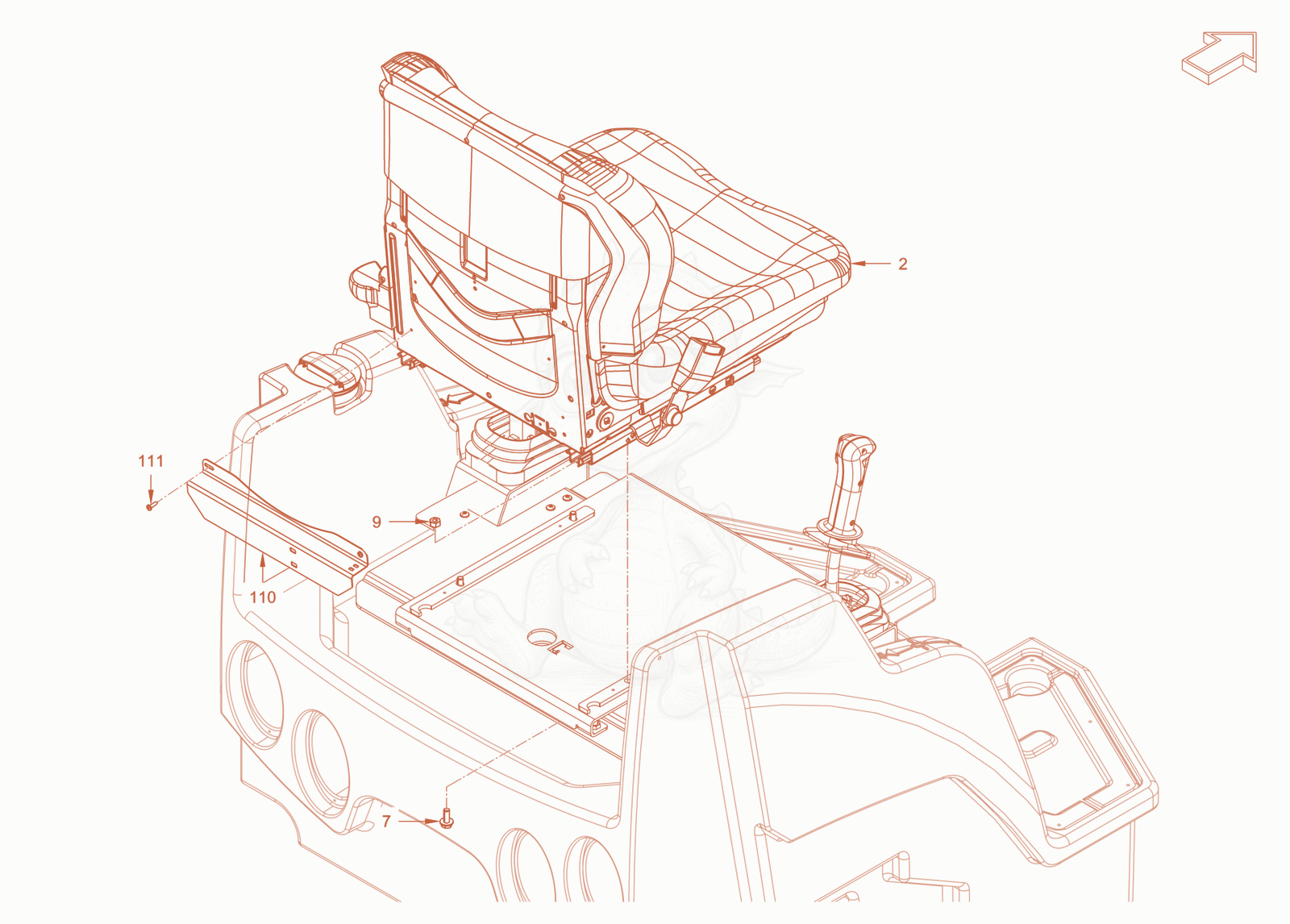

RD24-100E operator's seat withadjustment Diagram

Exploded parts diagram of the operator's seat withadjustment of a Wacker Neuson RD24-100E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100029584
    $2,039.93
    driver's seat - 5100029584×1
  • 75100064082Not stocked
    safety screw×4
  • 95100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 1105100012306
    $50.11
    Protecting plate - 5100012306×1
  • 1115100011634
    $1.57
    Sheet metal screw - 5100011634×2
