RD24e-100

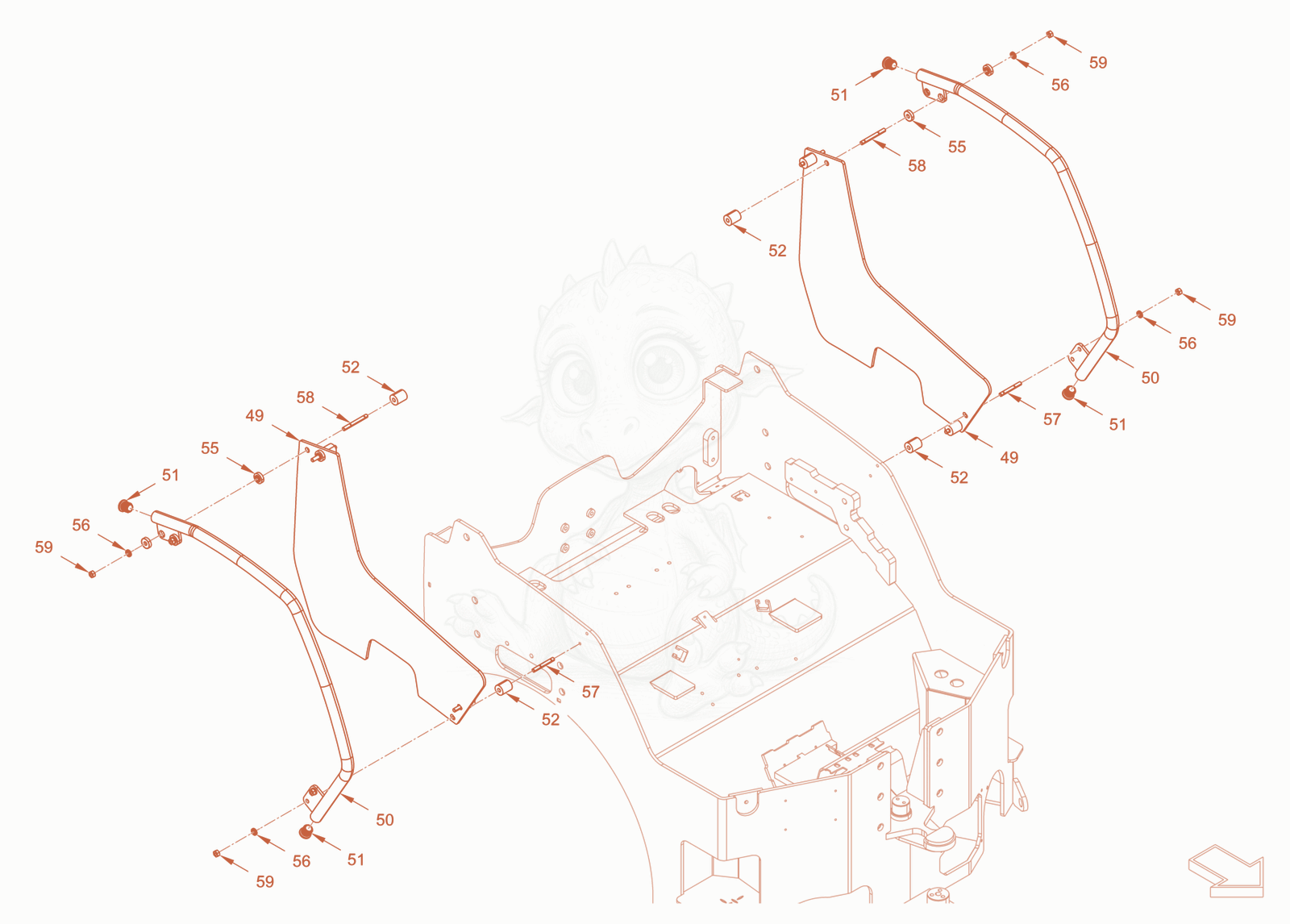

RD24-100E main frame and assemblies Diagram
- cover - 5100016196×2
- Handle - 5100012853×2
- Filler cap - 5100012529×4
- Bushing - 5100016503×8
- Silentbloc - 5100011498×8
- Locking washer - 5100012966×8
- Stud bolt - 5100012946×4
- Stud bolt - 5100012977×4
- Hexagon nut - 5100012546×8
