RD24-100E main frame and assemblies Diagram

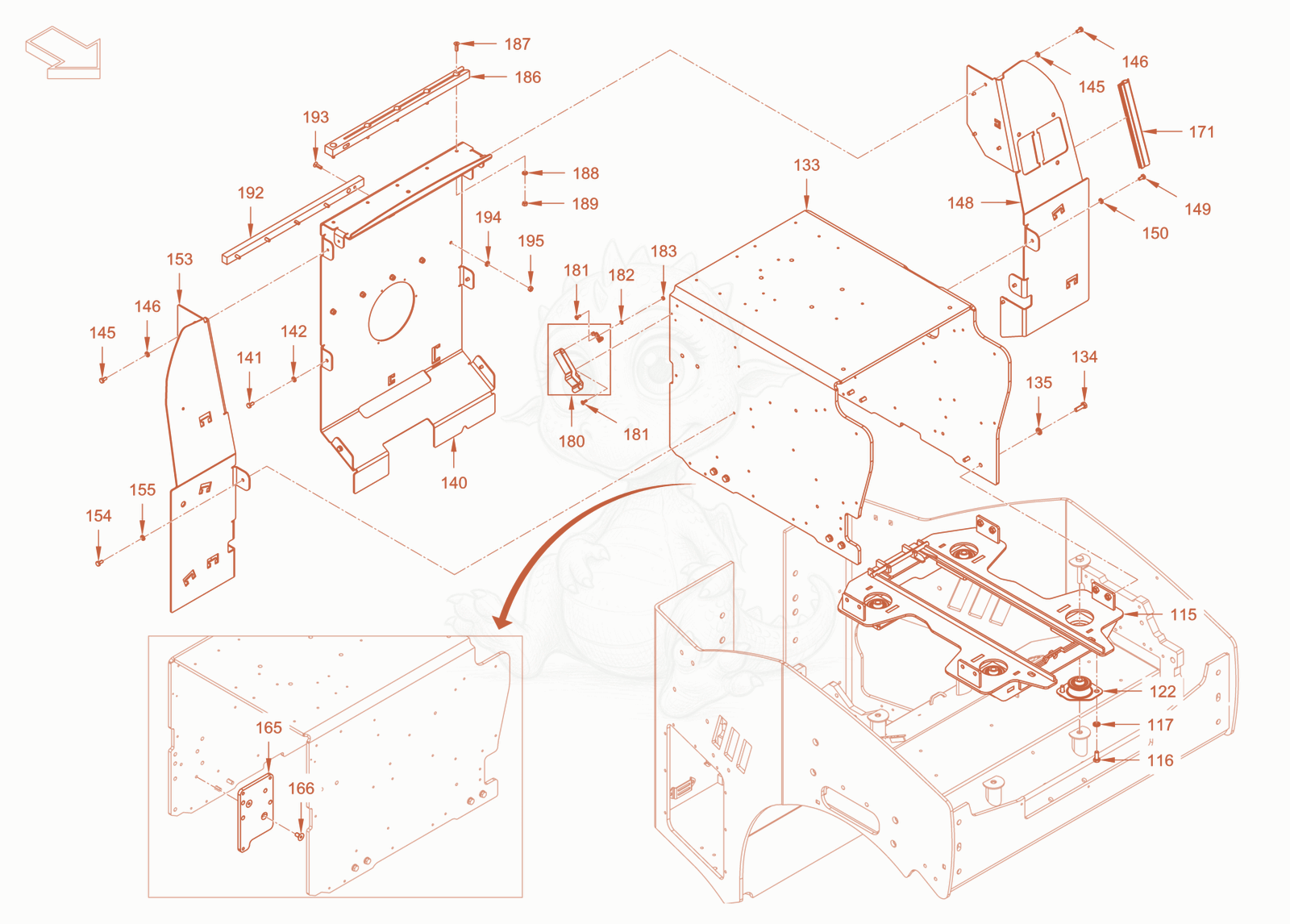

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RD24-100E, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1155100076247Not stocked
holder×1
1165100012517
$1.57
Hexagon screw - 5100012517×8
1175100012966
$1.57
Locking washer - 5100012966×8
1225100012209
$176.12
Silentbloc - 5100012209×4
1335100076259Not stocked
metal plate×1
1345100012613
$1.57
Hexagon screw - 5100012613×8
1355100012966
$1.57
Locking washer - 5100012966×8
1405100076271Not stocked
metal plate×1
1415100012572
$20.09
Hexagon screw - 5100012572×4
1425100012965
$3.01
Locking washer - 5100012965×4
1455100012572
$20.09
Hexagon screw - 5100012572×4
1465100012965
$3.01
Locking washer - 5100012965×4
1485100076283Not stocked
metal plate×1
1495100012572
$20.09
Hexagon screw - 5100012572×5
1505100012965
$3.01
Locking washer - 5100012965×5
1535100076291Not stocked
metal plate×1
1545100012572
$20.09
Hexagon screw - 5100012572×5
1555100012965
$3.01
Locking washer - 5100012965×5
1655100076292Not stocked
metal plate×1
1665100034697
$1.57
countersunk screw - 5100034697×2
1715100013642
$33.65
Sealing profile - 5100013642×2.1
1805100076293Not stocked
turnbuckle×2
1815100086729Not stocked
fillister head screw×8
1825100013438
$1.57
Washer - 5100013438×4
1835100022855
$2.18
hexagonal nut - 5100022855×4
1865100076295Not stocked
rail×1
1875100012665
$1.49
Countersunk screw - 5100012665×5
1885100012965
$3.01
Locking washer - 5100012965×5
1895100012545
$1.57
Hexagon nut - 5100012545×5
1925100076297Not stocked
rail×1
1935100012665
$1.49
Countersunk screw - 5100012665×5
1945100012965
$3.01
Locking washer - 5100012965×5
1955100012545
$1.57
Hexagon nut - 5100012545×5
