RD24e-100

RD24-100E roller drum lighting Diagram

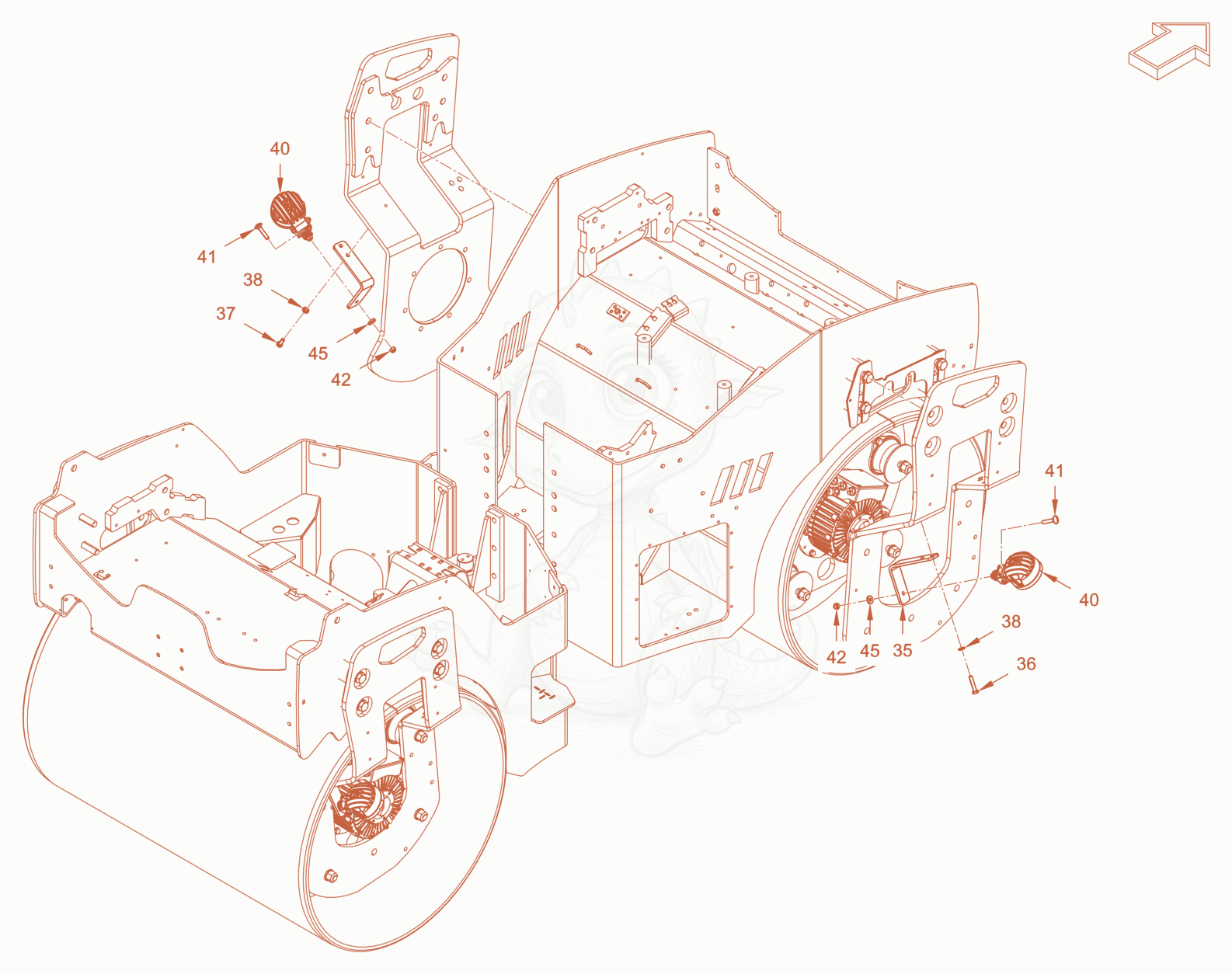

Exploded parts diagram of the roller drum lighting of a Wacker Neuson RD24-100E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 355100066907Not stocked
    holder×4
  • 365100035087
    $1.57
    hexagon screw - 5100035087×2
  • 375100012517
    $1.57
    Hexagon screw - 5100012517×2
  • 385100012966
    $1.57
    Locking washer - 5100012966×4
  • 405100066908Not stocked
    working light×4
  • 415100011578
    $1.57
    Mushroom head screw - 5100011578×4
  • 425100053004
    $1.57
    safety nut - 5100053004×4
  • 455100066909Not stocked
    bushing×4
