RD24e-100

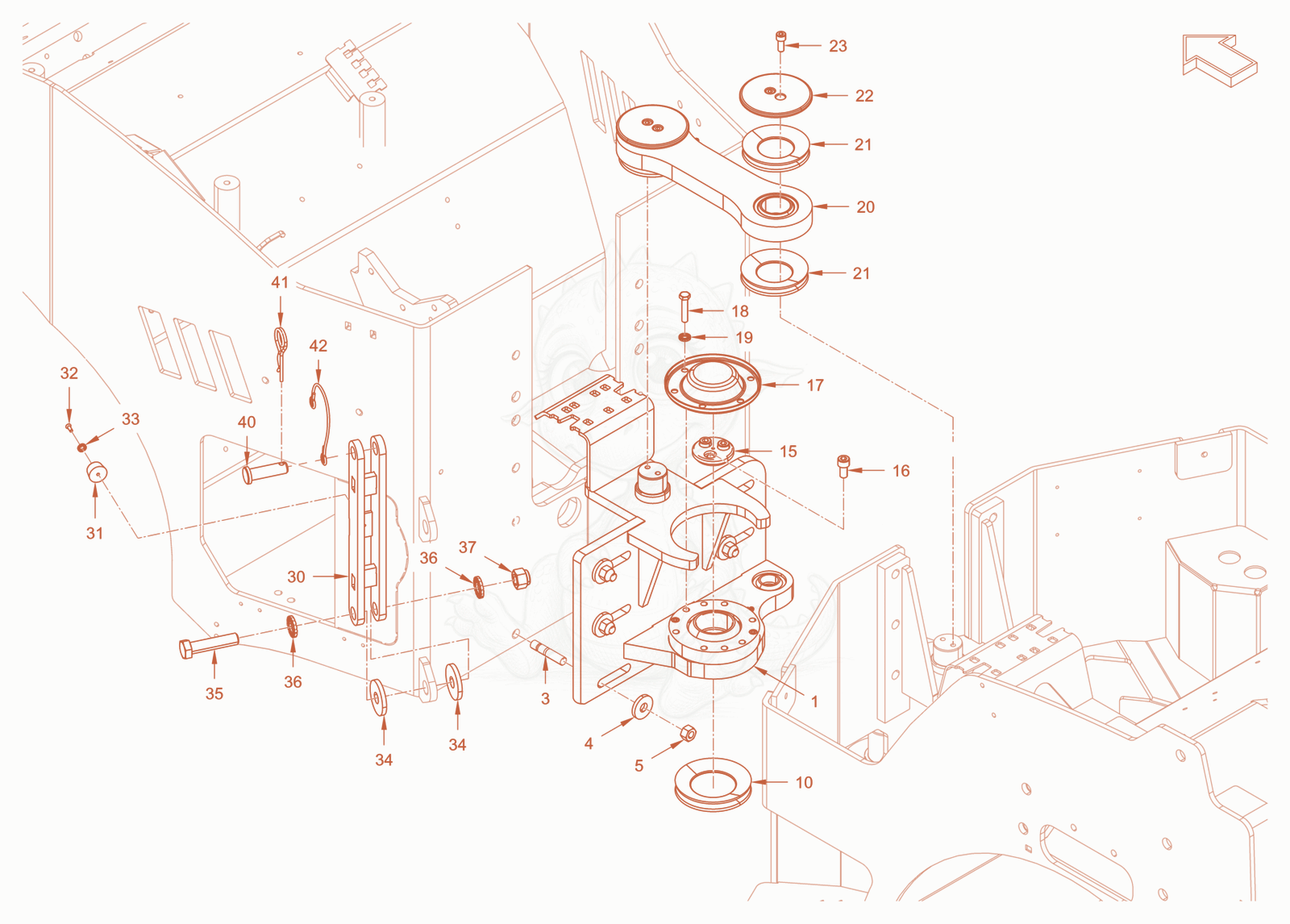

RD24-100E centre pivot assembly Diagram
- 15100073182Not stockedjoint×1
- Stud bolt - 5100012911×6
- Washer - 5100016501×6
- Hexagon nut - 5100012548×6
- Sealing ring - 5100011782×1
- Clamping piece - 5100011778×1
- Cheese-head screw - 5100012725×3
- Cover - 5100012084×1
- hexagon screw - 5100035087×6
- Locking washer - 5100012966×6
- Pendulum suspension - 5100011780×1
- Sealing ring - 5100011761×4
- Clamping piece - 5100011781×2
- Cheese-head screw - 5100012724×4
- Safety strut - 5100012245×1
- Rubber buffer - 5100013432×1
- Raised countersunk head screw - 5100013607×1
- Locking washer - 5100012965×1
- Rubber washer - 5100011731×2
- Hexagon screw - 5100011493×1
- Locking washer - 5100012969×2
- safety nut M16 lock - 5100035686×1
- Bolt - 5100012009×1
- W-clip - 5100011803×1
- Safety cord - 5100011590×1
