RD27-100 ROLLER, EU BASIC

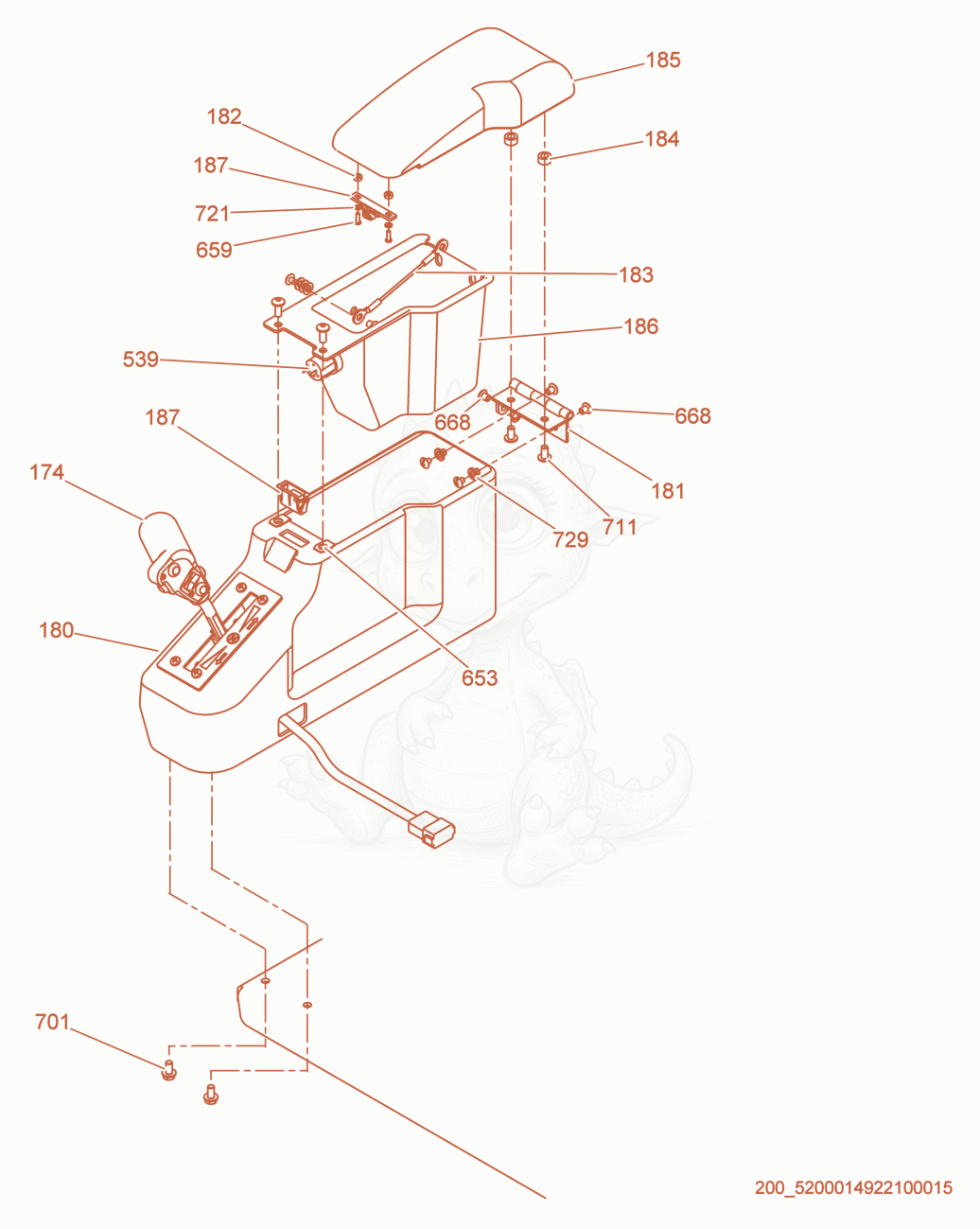

RD27-100 Control Lever cpl./Armrest cpl. Diagram

Exploded parts diagram of the Control Lever cpl./Armrest cpl. of a Wacker Neuson RD27-100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1745200007403
    $1,954.10
    LEVER-TRAVEL CONTROL - 5200007403×1
  • 1805200003066
    $121.39
    Console-Travel Lever Mount - 5200003066×1
  • 1815200009511
    $362.15
    HINGE-ARMREST P-5000112007 - 5200009511×1
  • 1825200009417
    $15.82
    Spacer-M4 x 4 - 5200009417×2
  • 1835200010053Not stocked
    Lanyard-armrest cover×1
  • 1845200009416
    $11.19
    Spacer-M8 x 8.5 - 5200009416×2
  • 1855200005454
    $164.68
    Armrest Assembly-Molded - 5200005454×1
  • 1865200005455
    $250.09
    Liner-Armrest - 5200005455×1
  • 1875200005457
    $22.66
    Latch-Snap In - 5200005457×1
  • 5395000182353
    $11.06
    RECEPTACLE-POWER POINT - 5000182353×1
  • 6535000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 6595000153280
    $0.53
    SCREW M4 X 14,10.9,BK OX - 5000153280×3
  • 6685200010258Not stocked
    Screw×4
  • 7015000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×4
  • 7115000163945
    $0.26
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×2
  • 7215000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 7295000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×5
