RD27-100 ROLLER, EU BASIC

RD27-100 Engine/Muffler cpl. Diagram

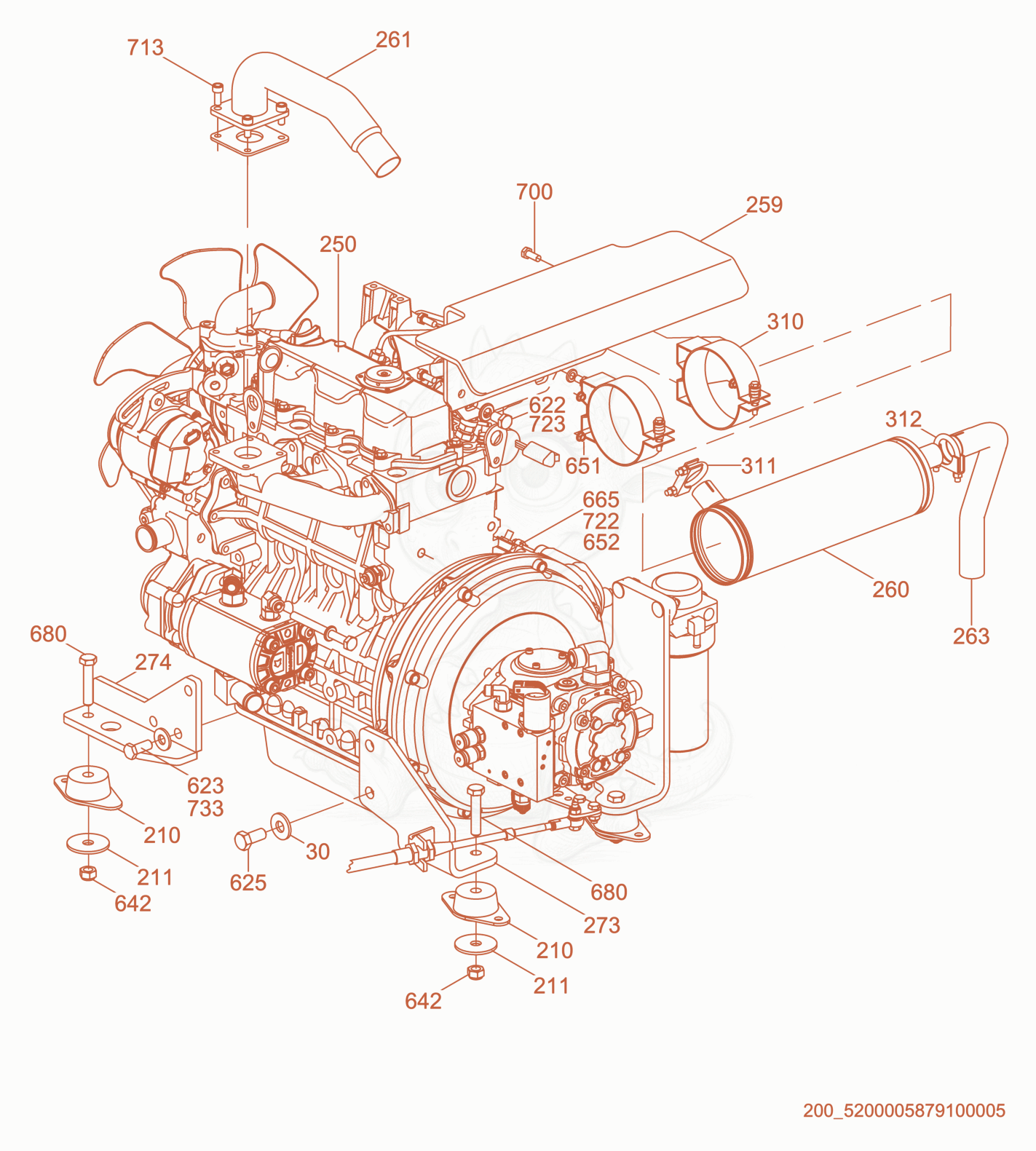

Exploded parts diagram of the Engine/Muffler cpl. of a Wacker Neuson RD27-100, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

305000080596
$2.08
WASHER 14 SPR.LOCK,MZP - 5000080596×2
2105200002486
$80.92
Shockmount-Engine 25641-4 - 5200002486×4
2115200002488
$5.59
Washer-Snubber HR Series - 5200002488×4
2505200005916
$22,461.54
ENGINE-KUBOTA D1803 - 5200005916×1
2525200002436
$1,616.60
Exciter-Steering Pump - 5200002436×1
2595200006752
$93.97
Bracket-Muffler Mount P-5000176420 - 5200006752×1
2605000172888
$1,401.41
MUFFLER-5.65 OD X 18 L - 5000172888×1
2615200002090
$68.43
PIPE-EXHAUST - 5200002090×1
2635200002091
$390.96
PIPE-MUFFLER - 5200002091×1
2735200002968
$45.16
MOUNT-ENGINE REAR LT,WELD - 5200002968×1
2745200003055
$293.74
MOUNT-ENGINE,FRONT LEFT P-5000176420 - 5200003055×1
3105000158795
$12.22
CLAMP-AIR CLEANER,5.72 INCH - 5000158795×2
3115000164412
$7.16
CLAMP-EXHAUST 1-5/8 HD - 5000164412×1
3125200007581
$5.51
Clamp-Muffler 1-7/8" - 5200007581×1
3935000081340
$24.83
FITTING-HYDRAULIC,ELBOW,90 - 5000081340×1
4055000078962
$11.04
FITTING-ELBOW 90,HYDRAULIC - 5000078962×1
6225000176455
$0.79
SCREW M12 X 1.25 X 20 HX.HD. - 5000176455×2
6235000187911
$0.63
Screw-M12 X 1.25 X 30,Zinc - 5000187911×3
6255200007342
$1.18
Screw-M14 x 1.5 x 30,DIN961,HHCS - 5200007342×2
6425000010366
$0.54
NUT-LOCK M12X1.75 HEX - 5000010366×4
6515000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
6525000010365
$0.20
NUT-LOCK M10 HEX. - 5000010365×2
6655000159005
$1.10
SCREW M10 X 110 HX.HD. - 5000159005×2
6805000011303
$1.44
SCREW M12 X 60 HX.HD. - 5000011303×2
7005000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×4
7135000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×4
7225000010621
$0.13
WASHER B10.5 FLAT - 5000010621×2
7235000010620
$0.26
WASHER B13 FLAT - 5000010620×2
7335000031565
$0.48
WASHER-LOCK A12 - 5000031565×3
