RD28-120c

RD28-120C suspension (tires) Diagram

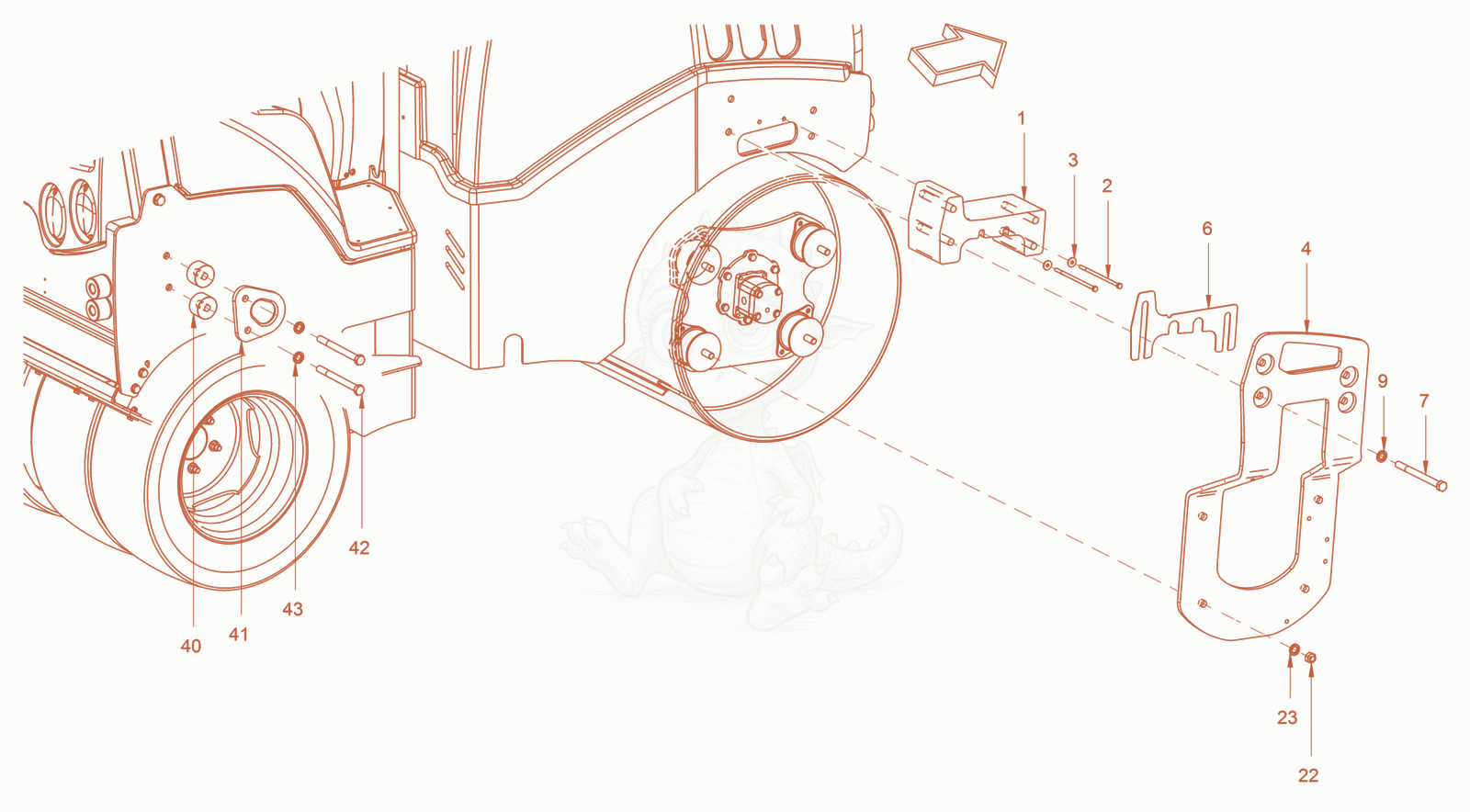

Exploded parts diagram of the suspension (tires) of a Wacker Neuson RD28-120C, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100012342
$964.08
Spacer block - 5100012342×1
25100053012
$10.25
hexagon screw - 5100053012×2
35100011933
$2.40
Cup spring - 5100011933×4
45100012025
$2,958.48
Bow plate - 5100012025×1
65100012027
$47.26
Metal plate - 5100012027×3
75100012958
$15.59
Hexagon screw - 5100012958×4
95100012969
$3.15
Locking washer - 5100012969×4
225100012405
$3.37
Hexagon nut - 5100012405×4
235100012969
$3.15
Locking washer - 5100012969×4
405100012350
$78.89
Spacer block - 5100012350×2
415100012447
$183.93
Towing loop - 5100012447×1
425100012502
$29.72
Hexagon screw - 5100012502×2
435100012969
$3.15
Locking washer - 5100012969×2
