RD28-120c

RD28-120C mounting Diagram

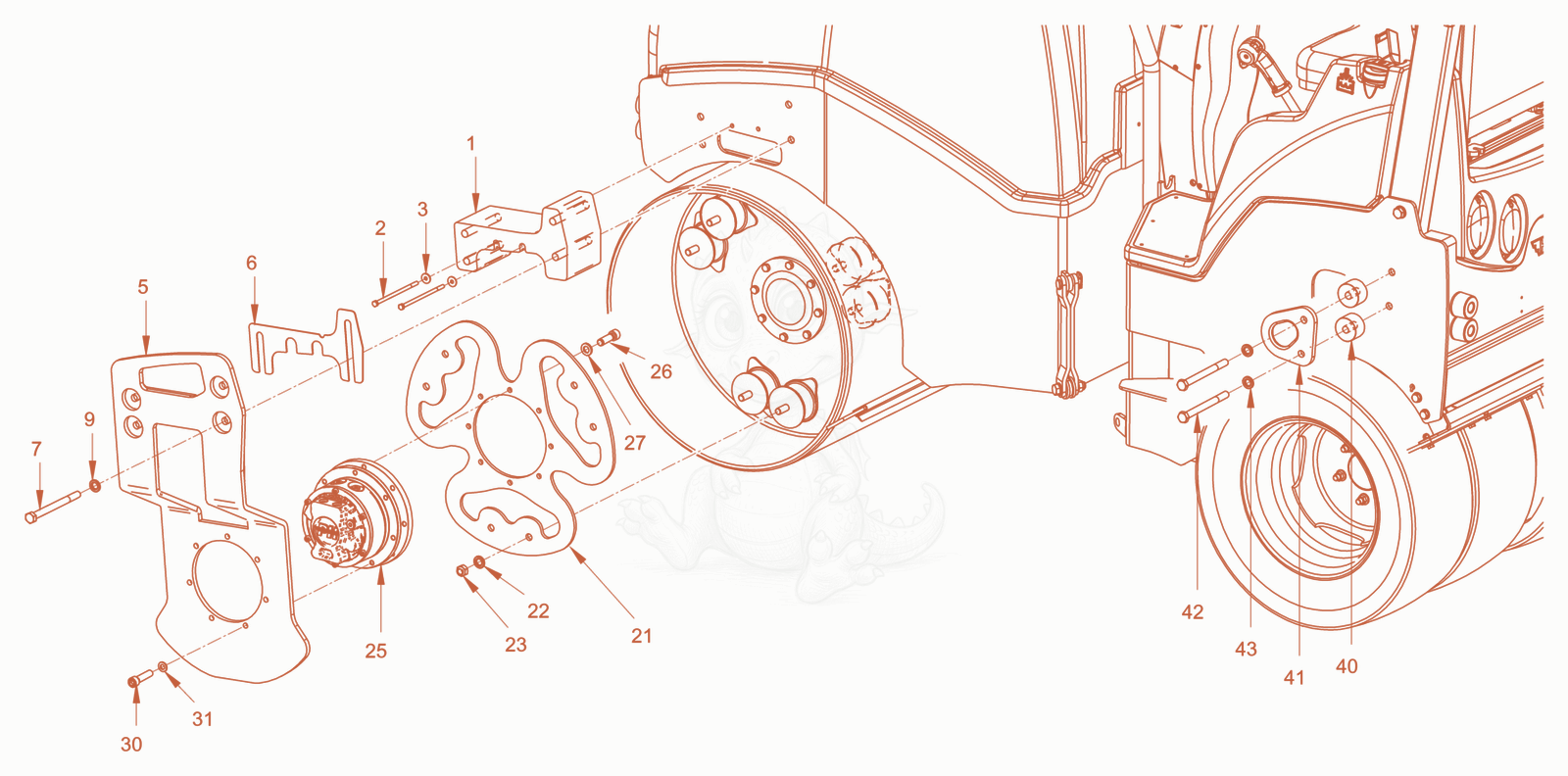

Exploded parts diagram of the mounting of a Wacker Neuson RD28-120C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012342
    $964.08
    Spacer block - 5100012342×1
  • 25100053012
    $10.25
    hexagon screw - 5100053012×2
  • 35100011933
    $2.40
    Cup spring - 5100011933×4
  • 55100012026
    $2,259.84
    Bow plate - 5100012026×1
  • 65100012027
    $47.26
    Metal plate - 5100012027×3
  • 75100012958
    $15.59
    Hexagon screw - 5100012958×4
  • 95100012969
    $3.15
    Locking washer - 5100012969×4
  • 215100053011
    $736.98
    driver - 5100053011×1
  • 225100012969
    $3.15
    Locking washer - 5100012969×6
  • 235100012405
    $3.37
    Hexagon nut - 5100012405×6
  • 255100052949Not stocked
    gear hub motor×1
  • 265100048107Not stocked
    cheese-head screw×8
  • 275100012968
    $1.57
    Locking washer - 5100012968×8
  • 305100048107Not stocked
    cheese-head screw×7
  • 315100012968
    $1.57
    Locking washer - 5100012968×7
  • 405100012350
    $78.89
    Spacer block - 5100012350×2
  • 415100012447
    $183.93
    Towing loop - 5100012447×1
  • 425100012502
    $29.72
    Hexagon screw - 5100012502×2
  • 435100012969
    $3.15
    Locking washer - 5100012969×2
