RD28-120c

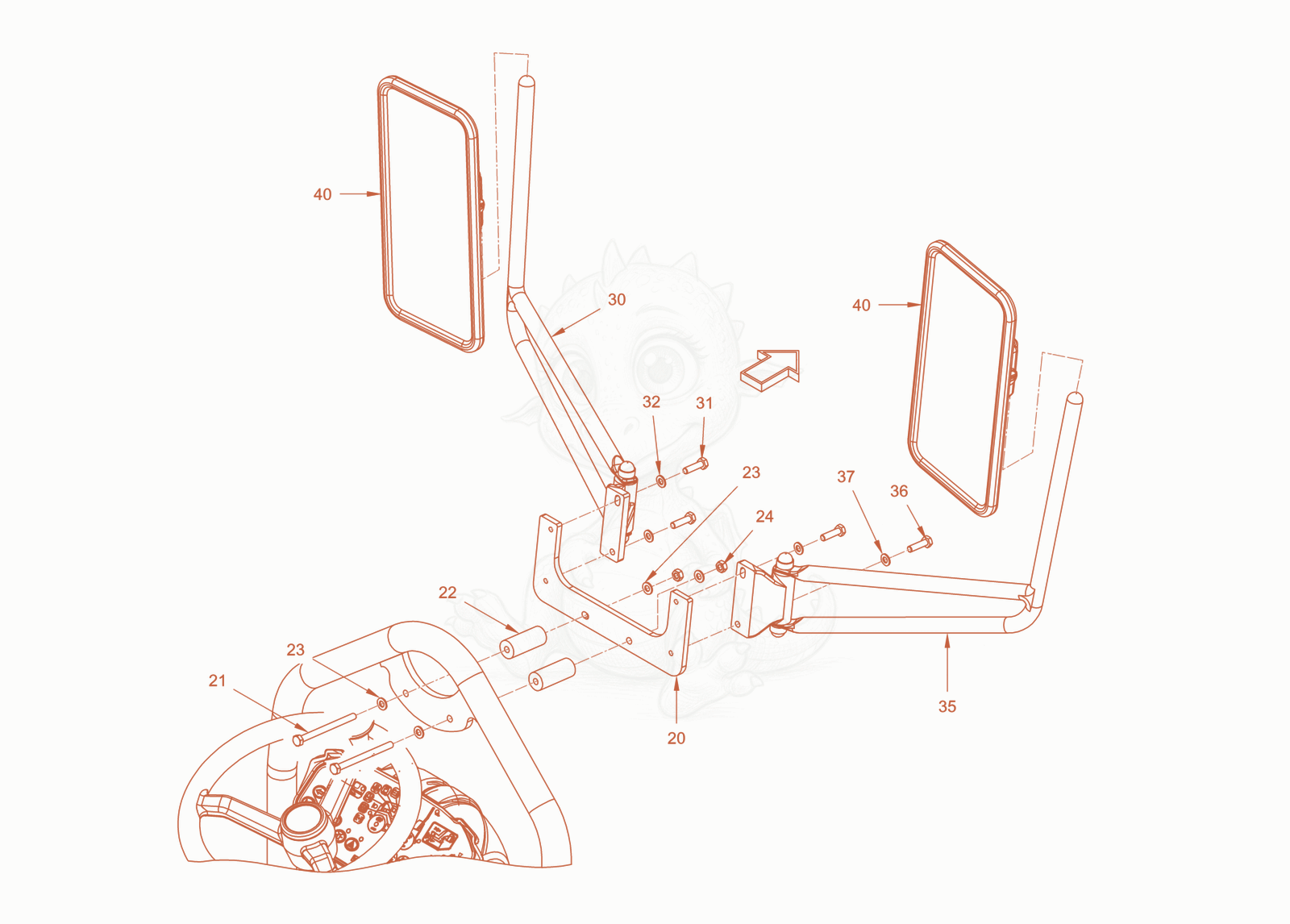

RD28-120C additional mirror Diagram

Exploded parts diagram of the additional mirror of a Wacker Neuson RD28-120C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100066910
    $57.94
    mirror-retainer - 5100066910×1
  • 215100066911Not stocked
    hexagon screw×2
  • 225100066912
    $16.74
    distance piece - 5100066912×2
  • 235100012966
    $1.57
    Locking washer - 5100012966×4
  • 245100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 305100067838
    $176.46
    stay bar - 5100067838×1
  • 315100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 325100012966
    $1.57
    Locking washer - 5100012966×2
  • 355100067837Not stocked
    stay bar×1
  • 365100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 375100012966
    $1.57
    Locking washer - 5100012966×2
  • 405100067839
    $83.58
    mirror - 5100067839×2
