RD40-130c.3

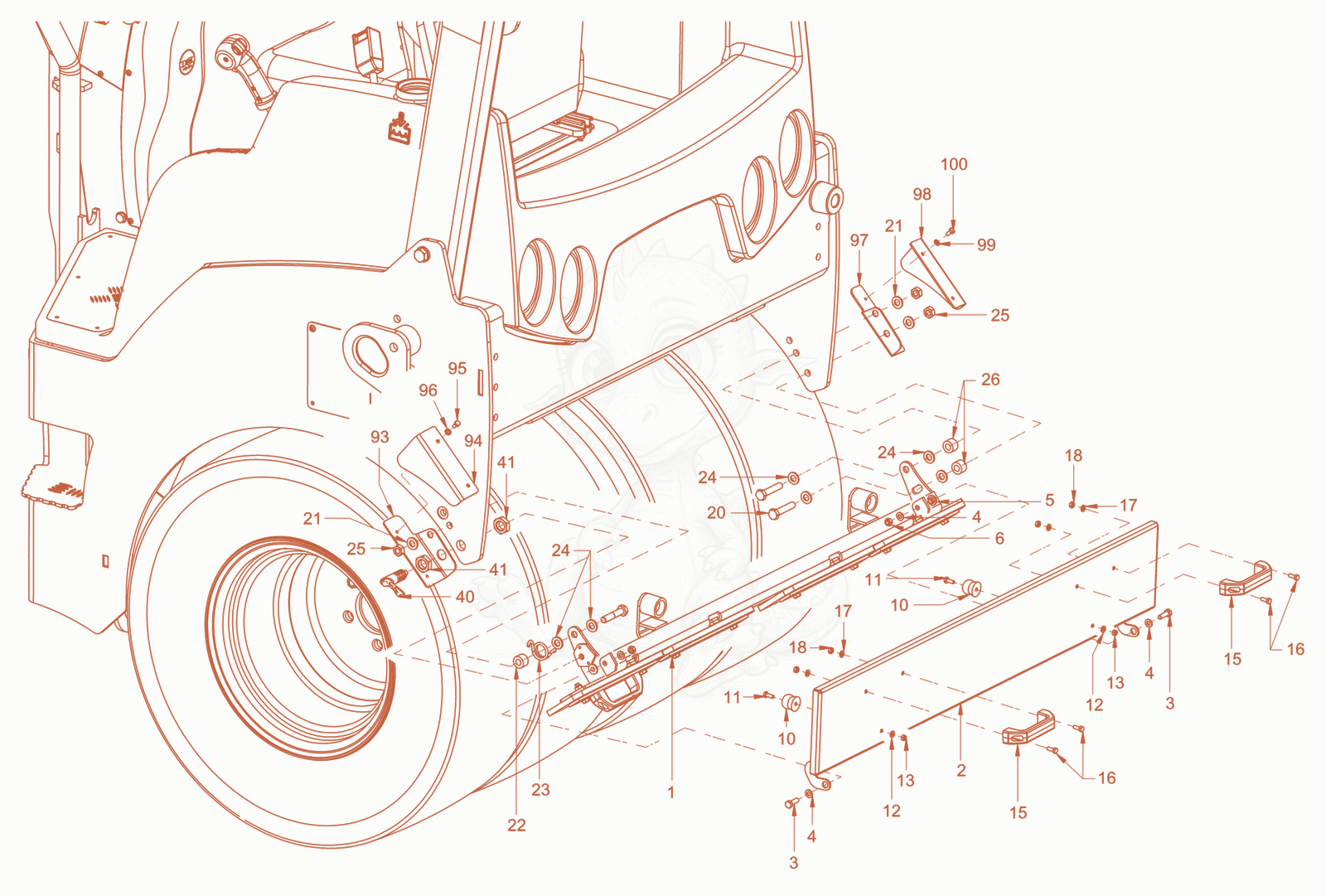

RD40-130C.3 scraper Diagram

Exploded parts diagram of the scraper of a Wacker Neuson RD40-130C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012138
    $4,001.68
    Scraper - 5100012138×1
  • 25100012142
    $474.18
    Cover - 5100012142×1
  • 35100013510
    $1.57
    Hexagon screw - 5100013510×2
  • 45100012966
    $1.57
    Locking washer - 5100012966×4
  • 55100012456
    $2.71
    Bushing - 5100012456×2
  • 65100053004
    $1.57
    safety nut - 5100053004×2
  • 105100012439
    $9.78
    Rubber piece - 5100012439×2
  • 115100012610
    $1.57
    Hexagon screw - 5100012610×2
  • 125100012965
    $3.01
    Locking washer - 5100012965×2
  • 135100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 155100012932
    $44.61
    Handle - 5100012932×2
  • 165100012600
    $1.57
    Hexagon screw - 5100012600×4
  • 175100012965
    $3.01
    Locking washer - 5100012965×4
  • 185100012545
    $1.57
    Hexagon nut - 5100012545×4
  • 205100034760
    $10.30
    hexagon screw - 5100034760×3
  • 215100013577
    $1.57
    Washer - 5100013577×3
  • 225100011682
    $4.76
    Bushing - 5100011682×3
  • 235100013629
    $31.21
    Yoke spring - 5100013629×1
  • 245100011657
    $0.85
    Washer - 5100011657×6
  • 255100035091
    $2.44
    safety nut - 5100035091×3
  • 265100065369Not stocked
    bushing×2
  • 405100013204
    $65.25
    Jack latch - 5100013204×1
  • 415100057816Not stocked
    Hexagonal nut×2
  • 935100065335Not stocked
    splash protection×1
  • 945100065344Not stocked
    splash protection×1
  • 955100012572
    $20.09
    Hexagon screw - 5100012572×2
  • 965100012965
    $3.01
    Locking washer - 5100012965×2
  • 975100065345Not stocked
    splash protection×1
  • 985100065347Not stocked
    splash protection×1
  • 995100012572
    $20.09
    Hexagon screw - 5100012572×2
  • 1005100012965
    $3.01
    Locking washer - 5100012965×2
