RD40-130c.3

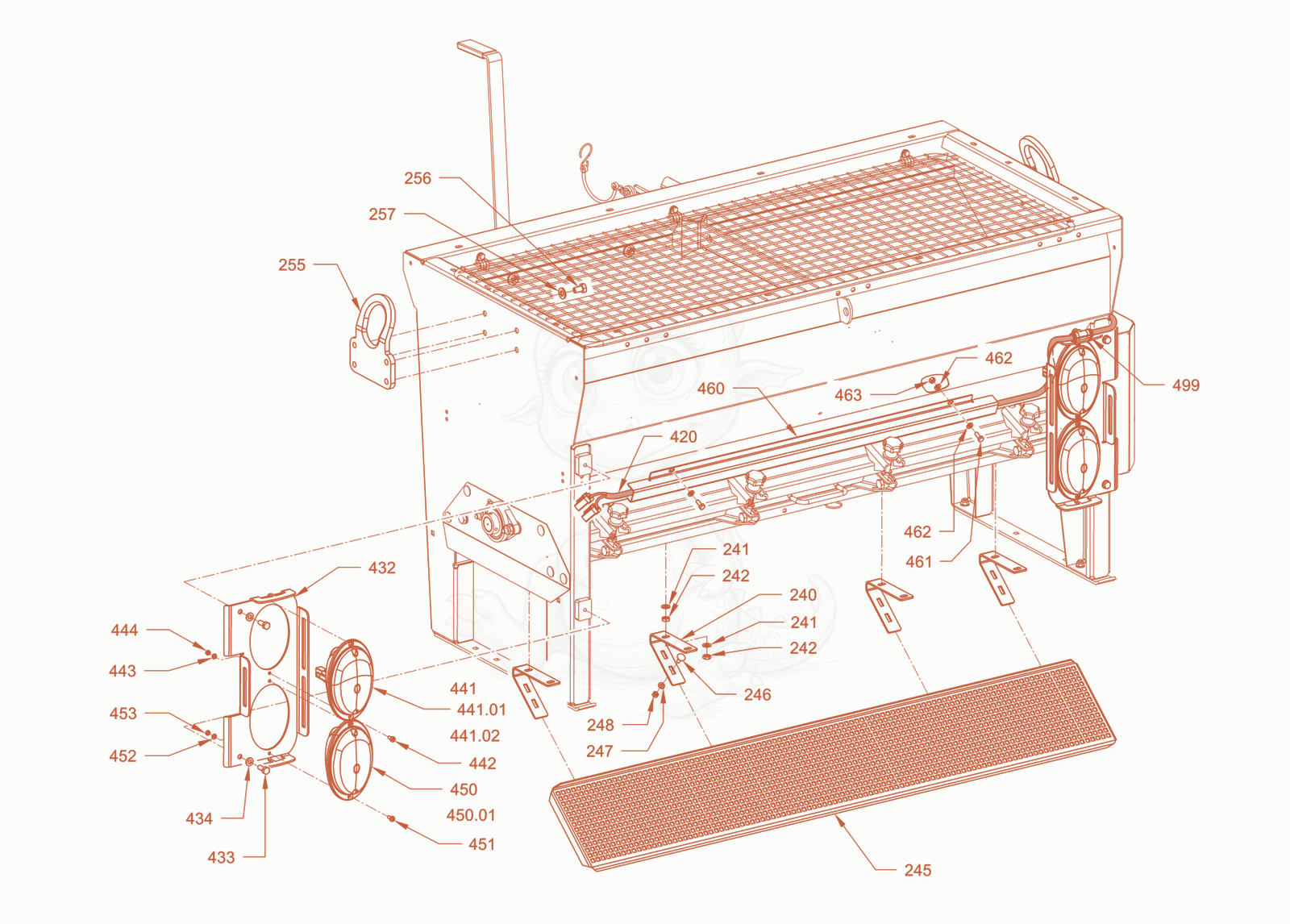

RD40-130C.3 chip spreader Diagram

Exploded parts diagram of the chip spreader of a Wacker Neuson RD40-130C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2405100013053Not stocked
    Bracket×4
  • 2415100012938
    $1.57
    Washer - 5100012938×16
  • 2425100013537
    $1.57
    Hexagon nut - 5100013537×16
  • 2455100013028Not stocked
    Perforated plate×1
  • 2465100012931
    $1.49
    Mushroom head screw - 5100012931×8
  • 2475100013523
    $1.57
    Washer - 5100013523×8
  • 2485100012545
    $1.57
    Hexagon nut - 5100012545×8
  • 2555100013076
    $385.10
    Towing loop - 5100013076×2
  • 2565100035014
    $1.57
    hexagon screw - 5100035014×8
  • 2575100012967
    $1.57
    Locking washer - 5100012967×8
  • 4205100012991Not stocked
    Wire harness×1
  • 4325100013023Not stocked
    Lamp support×2
  • 4335100012515
    $1.49
    Hexagon screw - 5100012515×4
  • 4345100012966
    $1.57
    Locking washer - 5100012966×4
  • 4415100013448
    $7.72
    Lamp - 5100013448×2
  • 4415100012213
    $40.63
    Lamp - 5100012213×2
  • 4415100011802
    $115.68
    Tail light - 5100011802×2
  • 4425100012591
    $1.49
    Fillister head screw - 5100012591×4
  • 4435100012936
    $2.27
    Washer - 5100012936×4
  • 4445100011599
    $3.01
    Hexagon nut - 5100011599×4
  • 4505100011801
    $108.15
    Reversing light - 5100011801×2
  • 4505100013448
    $7.72
    Lamp - 5100013448×2
  • 4515100012591
    $1.49
    Fillister head screw - 5100012591×4
  • 4525100012936
    $2.27
    Washer - 5100012936×4
  • 4535100011599
    $3.01
    Hexagon nut - 5100011599×4
  • 4605100013070Not stocked
    Silentbloc×1
  • 4615100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 4625100012965
    $3.01
    Locking washer - 5100012965×4
  • 4635100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 4995100013573
    $1.49
    Wire fastener - 5100013573×20
