RD40-130c.3

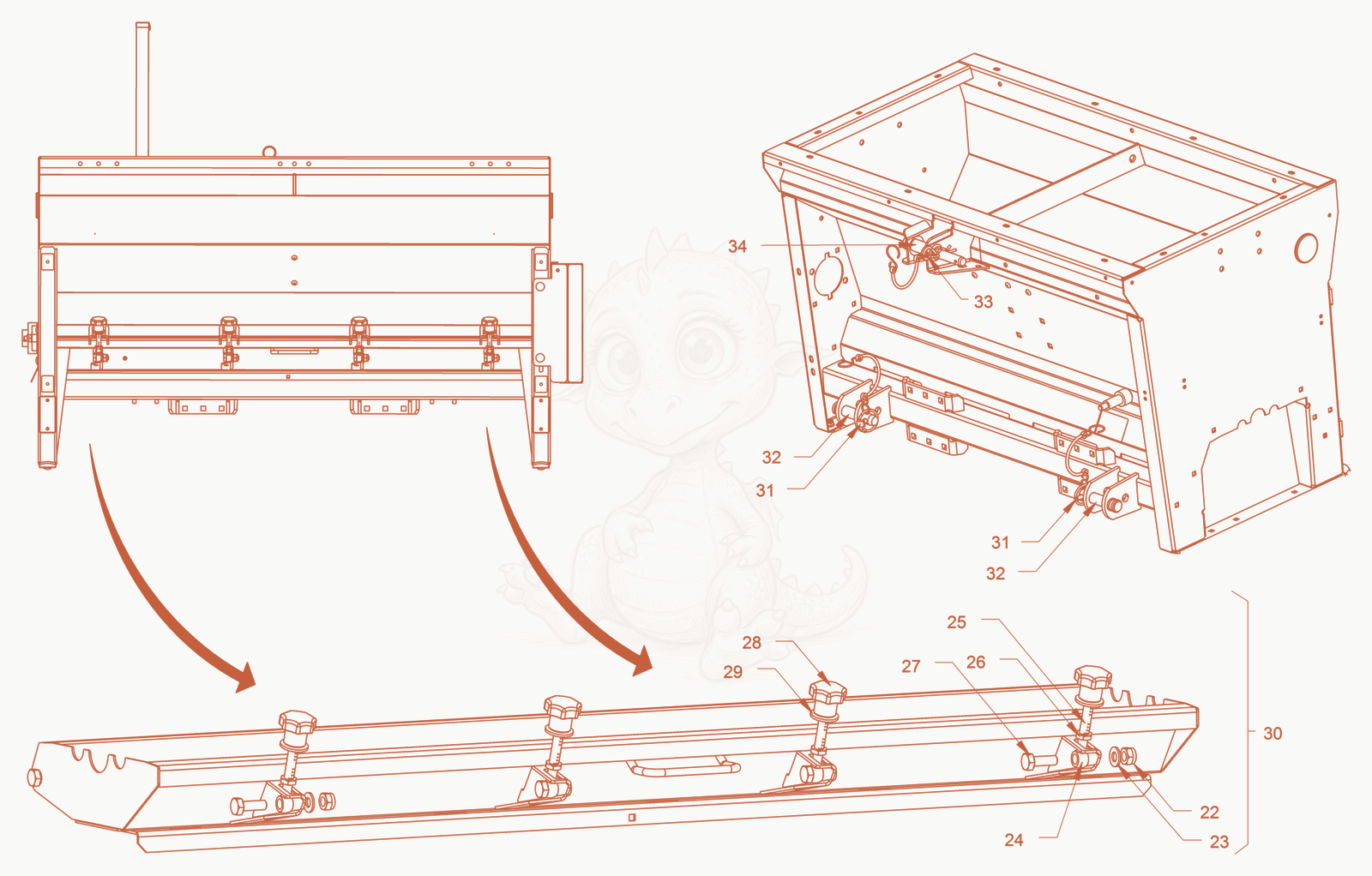

RD40-130C.3 chip spreader Diagram

Exploded parts diagram of the chip spreader of a Wacker Neuson RD40-130C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 225100013598
    $1.57
    Safety nut - 5100013598×4
  • 235100012939
    $1.57
    Washer - 5100012939×4
  • 245100013122Not stocked
    Eye bolt×4
  • 255100013118Not stocked
    Compression spring×4
  • 265100011533
    $0.85
    Hexagon nut - 5100011533×4
  • 275100013450
    $1.57
    Cheese-head screw - 5100013450×4
  • 285100013119Not stocked
    Handle screw×4
  • 295100013509
    $1.57
    Washer - 5100013509×4
  • 305100013112Not stocked
    Steel floor×1
  • 315100013020Not stocked
    Bolt×2
  • 325100013019Not stocked
    Split pin×2
  • 335100013114Not stocked
    W-clip×1
  • 345100013115Not stocked
    Bolt×1
