RD40-130 O

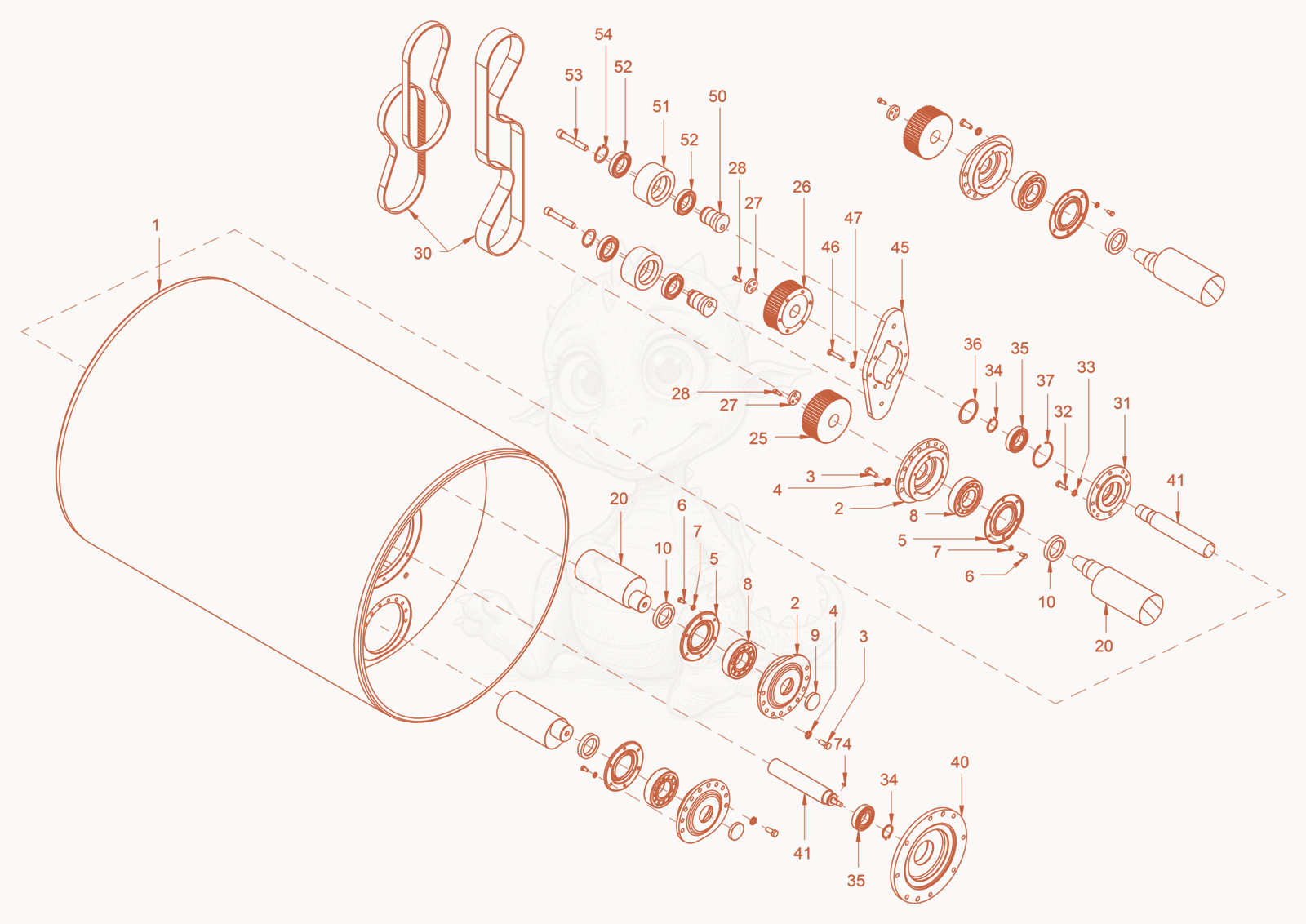

RD40-130O smooth roller drum with oscillator Diagram

Exploded parts diagram of the smooth roller drum with oscillator of a Wacker Neuson RD40-130O, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013245Not stocked
    Roller drum×1
  • 15100013344Not stocked
    Roller drum×1
  • 25100013238
    $725.67
    Flange - 5100013238×4
  • 35100012525
    $2.27
    Hexagon screw - 5100012525×40
  • 45100012968
    $1.57
    Locking washer - 5100012968×40
  • 55100012003
    $45.83
    Cover - 5100012003×4
  • 65100012516
    $1.57
    Hexagon screw - 5100012516×24
  • 75100012966
    $1.57
    Locking washer - 5100012966×24
  • 85100012226
    $328.70
    Cylindrical roller bearing - 5100012226×4
  • 95100011663
    $46.79
    Cap - 5100011663×2
  • 105100013348
    $32.65
    Ring - 5100013348×4
  • 205100013251
    $3,772.86
    Unbalance shaft - 5100013251×2
  • 205100013346
    $1,326.96
    Unbalance shaft - 5100013346×2
  • 255100011689
    $905.59
    Toothed belt pulley - 5100011689×2
  • 265100011690
    $1,395.88
    Toothed belt pulley - 5100011690Unknown×1
  • 265100033236Not stocked
    toothed belt pulley×1
  • 275100011688
    $84.94
    Locking washer - 5100011688×3
  • 285100012724
    $1.57
    Cheese-head screw - 5100012724×9
  • 305100039068Not stocked
    Toothed Belt×1
  • 305100013255
    $532.80
    Toothed belt - 5100013255×1
  • 315100012975
    $1,072.74
    Flange - 5100012975×1
  • 325100012522
    $1.49
    Hexagon screw - 5100012522×2
  • 335100012967
    $1.57
    Locking washer - 5100012967×2
  • 345100012949
    $10.43
    Locking ring - 5100012949×2
  • 355100011631
    $135.48
    Grooved ball bearing - 5100011631×2
  • 365100012974
    $52.21
    Ring - 5100012974×1
  • 375100012971
    $7.47
    Locking ring - 5100012971×1
  • 405100013253
    $1,032.55
    Flange - 5100013253×1
  • 415100013252
    $711.80
    Shaft - 5100013252×1
  • 415100013347
    $448.68
    Shaft - 5100013347×1
  • 455100013250
    $675.49
    Metal plate - 5100013250×1
  • 465100013597
    $4.15
    Hexagon screw - 5100013597×6
  • 475100012967
    $1.57
    Locking washer - 5100012967×6
  • 505100012953
    $167.39
    Shaft - 5100012953×2
  • 515100013254
    $285.14
    Ring - 5100013254×2
  • 525100012952
    $104.49
    Grooved ball bearing - 5100012952×4
  • 535100012823
    $6.81
    Cheese-head screw - 5100012823×2
  • 545100012950
    $15.37
    Locking ring - 5100012950×2
  • 745100013535
    $16.50
    Disk spring - 5100013535×1
