RD45-140o

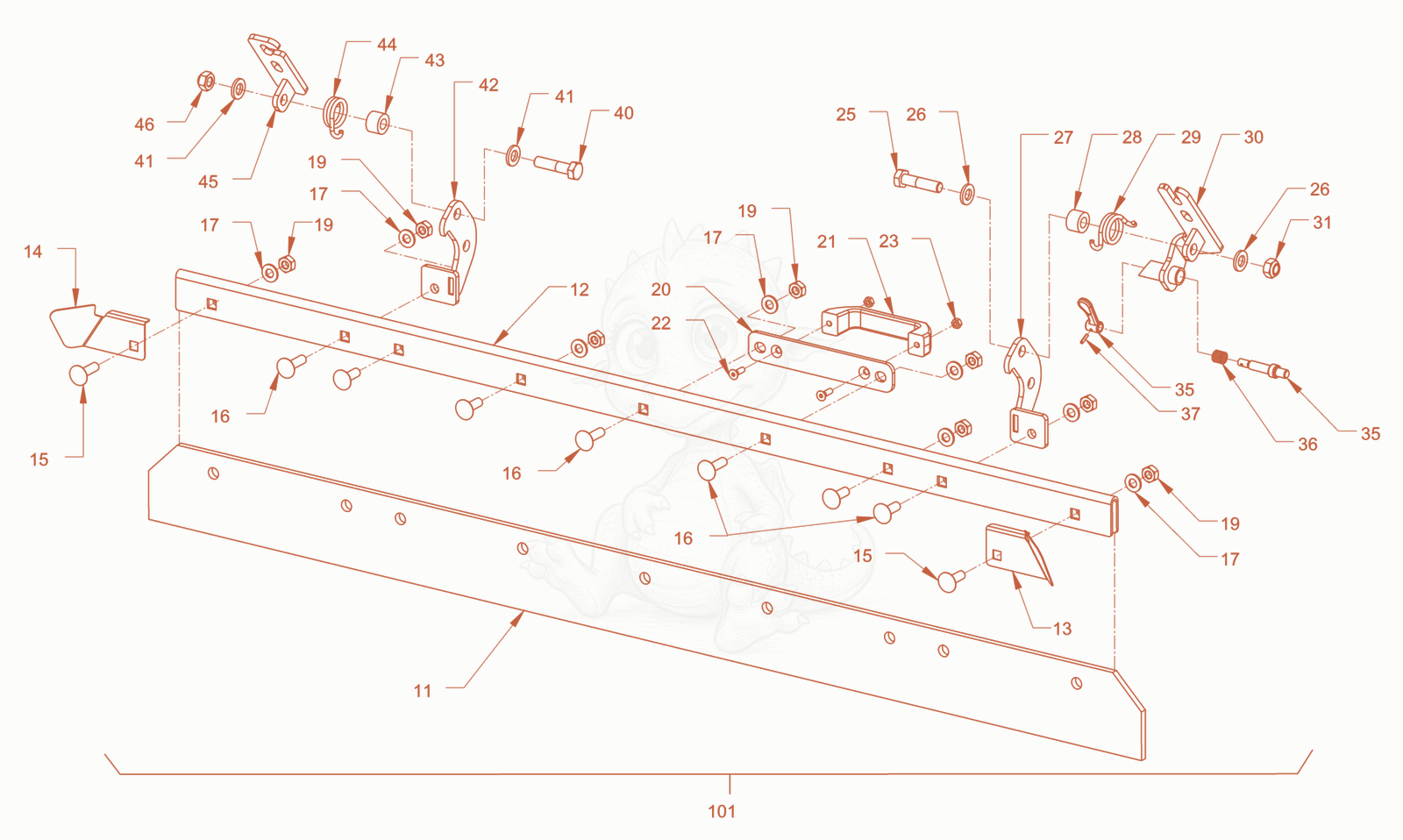

RD45-140O Foldable scraper Diagram

Exploded parts diagram of the Foldable scraper of a Wacker Neuson RD45-140O, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

115100011843
$158.66
Scraper - 5100011843×1
125100012043
$764.63
Metal plate - 5100012043×1
135100011939
$23.85
Metal plate - 5100011939×1
145100011940
$18.47
Metal plate - 5100011940×1
155100012085
$3.15
Mushroom head screw - 5100012085×5
165100011584
$2.88
Mushroom head screw - 5100011584×4
175100013521
$1.49
Washer - 5100013521×9
195100012547
$1.49
Hexagon nut - 5100012547×9
205100013040
$36.14
Bracket - 5100013040×1
215100012932
$44.61
Handle - 5100012932×1
225100012665
$1.49
Countersunk screw - 5100012665×2
235100012545
$1.57
Hexagon nut - 5100012545×2
255100011483
$2.33
Hexagon screw - 5100011483×1
265100013577
$1.57
Washer - 5100013577×2
275100013035
$88.74
Bracket - 5100013035×1
285100011682
$4.76
Bushing - 5100011682×1
295100013629
$31.21
Yoke spring - 5100013629×1
305100013033
$171.30
Bracket - 5100013033×1
315100012602
$1.57
Safety nut - 5100012602×1
355100013574
$30.94
Toggle with bolt - 5100013574×1
365100013575
$5.03
Compression spring - 5100013575×1
375100013576
$4.50
Grooved pin - 5100013576×1
405100011483
$2.33
Hexagon screw - 5100011483×1
415100013577
$1.57
Washer - 5100013577×2
425100013036
$171.91
Bracket - 5100013036×1
435100011682
$4.76
Bushing - 5100011682×1
445100013630
$37.24
Yoke spring - 5100013630×1
455100013037
$114.27
Bracket - 5100013037×1
465100012602
$1.57
Safety nut - 5100012602×1
1015100013031
$941.73
Scraper - 5100013031×1
