RD45-140o

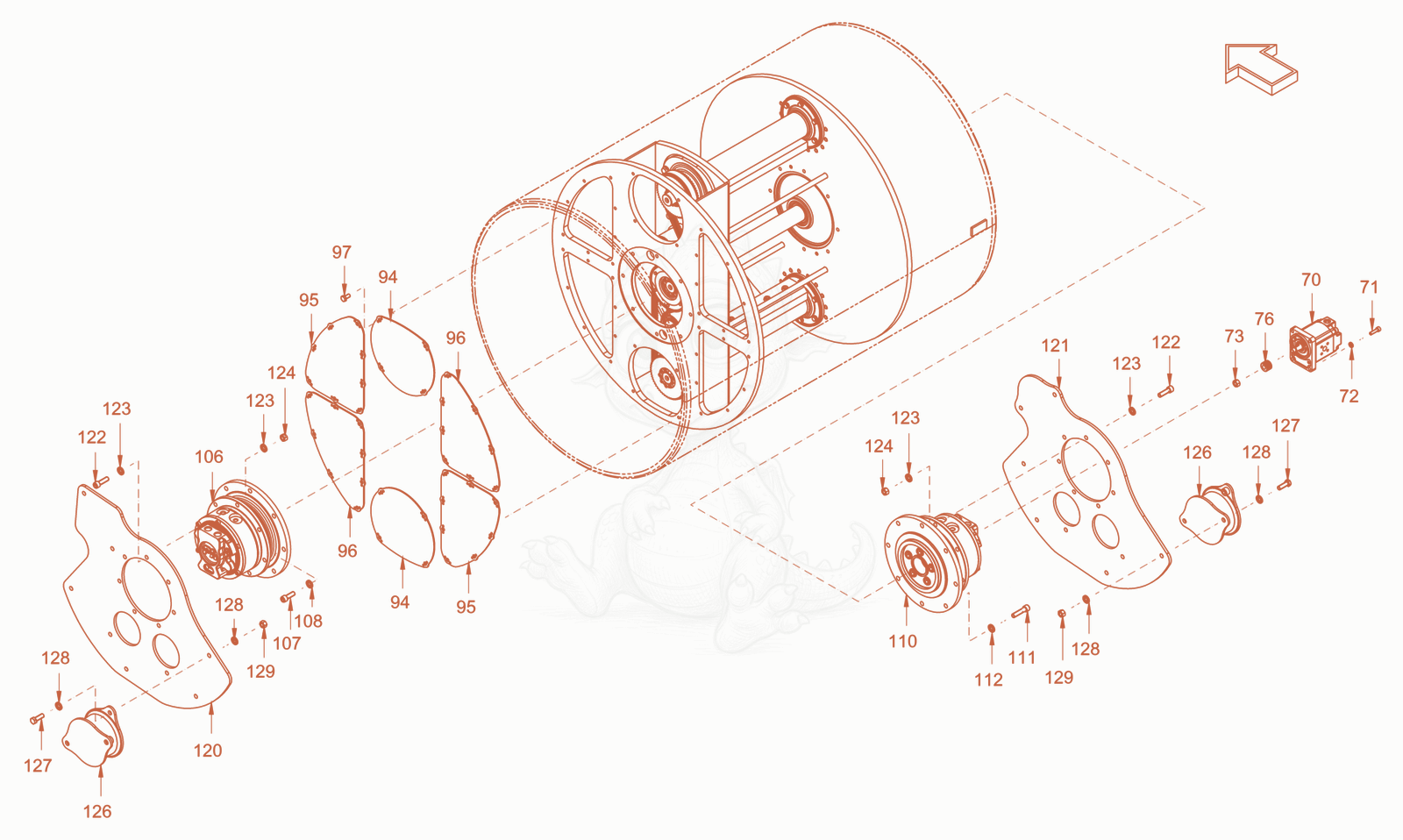

RD45-140O roller drum with oscillator Diagram

Exploded parts diagram of the roller drum with oscillator of a Wacker Neuson RD45-140O, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 705100012843
    $1,341.65
    Gear motor - 5100012843×1
  • 705100058556
    $1,072.06
    Gear motor - 5100058556×1
  • 715100012754
    $1.57
    Cheese-head screw - 5100012754×4
  • 725100012966
    $1.57
    Locking washer - 5100012966×4
  • 735100011646
    $4.72
    Hexagon nut - 5100011646×2
  • 735100011646
    $4.72
    Hexagon nut - 5100011646×1
  • 735100013445
    $2.71
    Hexagon nut - 5100013445×1
  • 765100018007
    $328.36
    hub - 5100018007×2
  • 945100025074
    $77.45
    lid - 5100025074×2
  • 955100025075
    $86.89
    lid - 5100025075×2
  • 965100025076
    $86.89
    lid - 5100025076×2
  • 975100012521
    $1.57
    Hexagon screw - 5100012521×40
  • 1065100059497Not stocked
    gear hub motor×1
  • 1065100065326Not stocked
    gear hub motor×1
  • 1075100012782
    $2.88
    Cheese-head screw - 5100012782×8
  • 1085100012968
    $1.57
    Locking washer - 5100012968×8
  • 1105100012317
    $5,688.17
    Gear hub motor - 5100012317Unknown×1
  • 1105100065327Not stocked
    gear hub motor×1
  • 1115100012789
    $3.71
    Cheese-head screw - 5100012789×8
  • 1125100012968
    $1.57
    Locking washer - 5100012968×8
  • 1205100013181
    $537.03
    Driver - 5100013181×1
  • 1215100013182
    $521.71
    Driver - 5100013182×1
  • 1225100012510
    $2.84
    Cheese-head screw - 5100012510Unknown×14
  • 1225100048107Not stocked
    cheese-head screw×14
  • 1235100012968
    $1.57
    Locking washer - 5100012968×14
  • 1235100012968
    $1.57
    Locking washer - 5100012968×28
  • 1245100012548
    $5.41
    Hexagon nut - 5100012548×14
  • 1265100011699
    $129.91
    Silentbloc - 5100011699×6
  • 1275100023184
    $3.15
    hexagon screw - 5100023184×12
  • 1285100012968
    $1.57
    Locking washer - 5100012968×24
  • 1295100012548
    $5.41
    Hexagon nut - 5100012548×12
