RD7Afb HRC

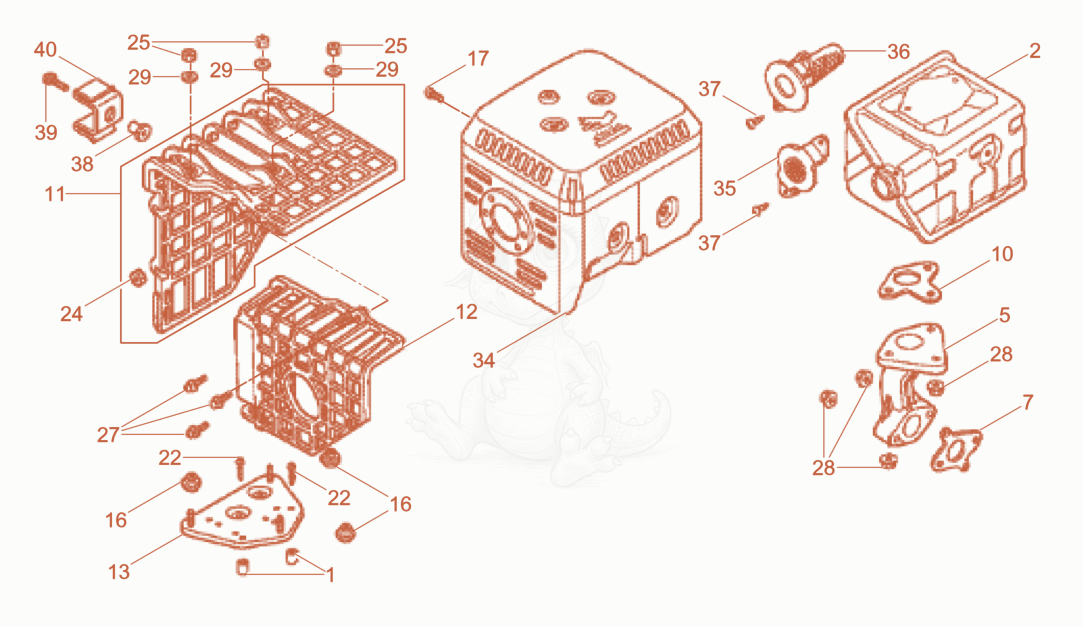

RD7AFBHRC Muffler Diagram
- SPACER-BUSHING - 5000207655×2
- Muffler Cpl. 5100039136×1
- Pipe-exhaust - 5200000448×1
- GASKET-EXHAUST - 5000162672×1
- Exhaust seal - 5100000411×1
- Covering - 5100000412×1
- Hood - 5100000413×1
- Bracket - 5100029236×1
- Spacer - 5000207659×3
- SCREW M6X10,TAPPING - 5000089284×1
- SCREW-SELF TAPPING 5 X 25 - 5000207666×2
- Nut - 5100000452×3
- NUT-HEX - 5000207667×3
- SCREW-6 X 20,W/WASHER - 5000207668×3
- NUT M8,HEX.FLANGE - 5000074738×5
- WASHER-5MM,PLAIN - 5000207669×3
- Housing cpl. - 5100000406×1
- FLANGE-MUFFLER BAFFLE - 5000075854×1
- protection - 5200000449×1
- SCREW M5 X 8,TAPPING - 5000071070×2
- Sleeve - 5100000420×1
- Screw - 5100000449×1
- Brace - 5100000415×1
