RD7Afb HRC

RD7AFBHRC Cylinder head Diagram

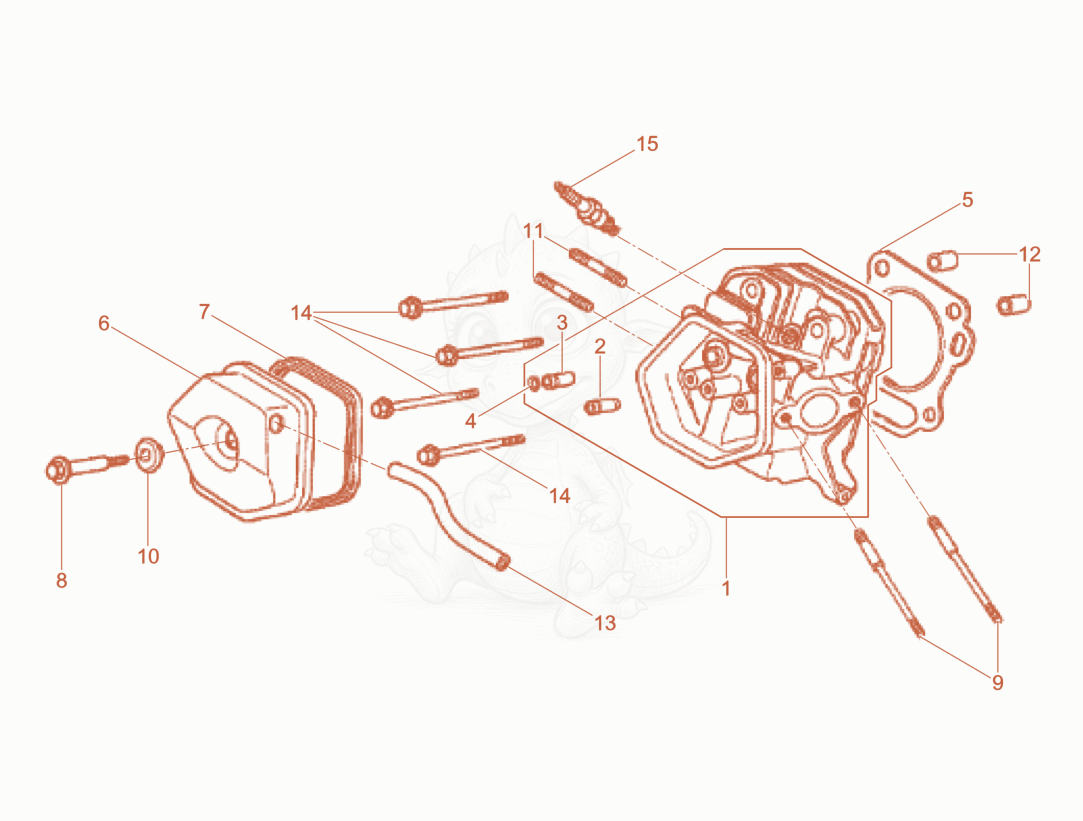

Exploded parts diagram of the Cylinder head of a Wacker Neuson RD7AFBHRC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100038229
    $955.90
    Cylinder Head cpl. - 5100038229×1
  • 25000110602
    $28.47
    GUIDE-VALVE,INTAKE - 5000110602×1
  • 35000074648
    $26.35
    GUIDE-EXHAUST VALVE - 5000074648×1
  • 45000074660
    $2.85
    RET.RING 11.9MM,FORM C - 5000074660×1
  • 55100000356
    $20.67
    Cylinder head gasket - 5100000356×1
  • 65000089273
    $77.37
    COVER-CYLINDER HEAD - 5000089273×1
  • 75000074645
    $15.43
    GASKET-CYLINDER HEAD COVER - 5000074645×1
  • 85100000450
    $3.30
    Bolt - 5100000450×1
  • 95000075798
    $10.71
    STUD M8 X 131.5 - 5000075798×2
  • 105000074657
    $7.71
    WASHER - 5000074657×1
  • 115000125833
    $3.41
    BOLT-THREADED,STUD - 5000125833Unknown×2
  • 115000217497Not stocked
    Stud bolt×2
  • 125000074652
    $3.70
    PIN 12 X 20,DOWEL - 5000074652×2
  • 135200000467
    $27.40
    Tube-breather - 5200000467×1
  • 145100003507
    $5.04
    Flange screw - 5100003507×4
  • 155000158498
    $3.67
    SPARK PLUG (BPR5ES)(NGK) - 5000158498×1
