RT820-TRENCH ROLLER

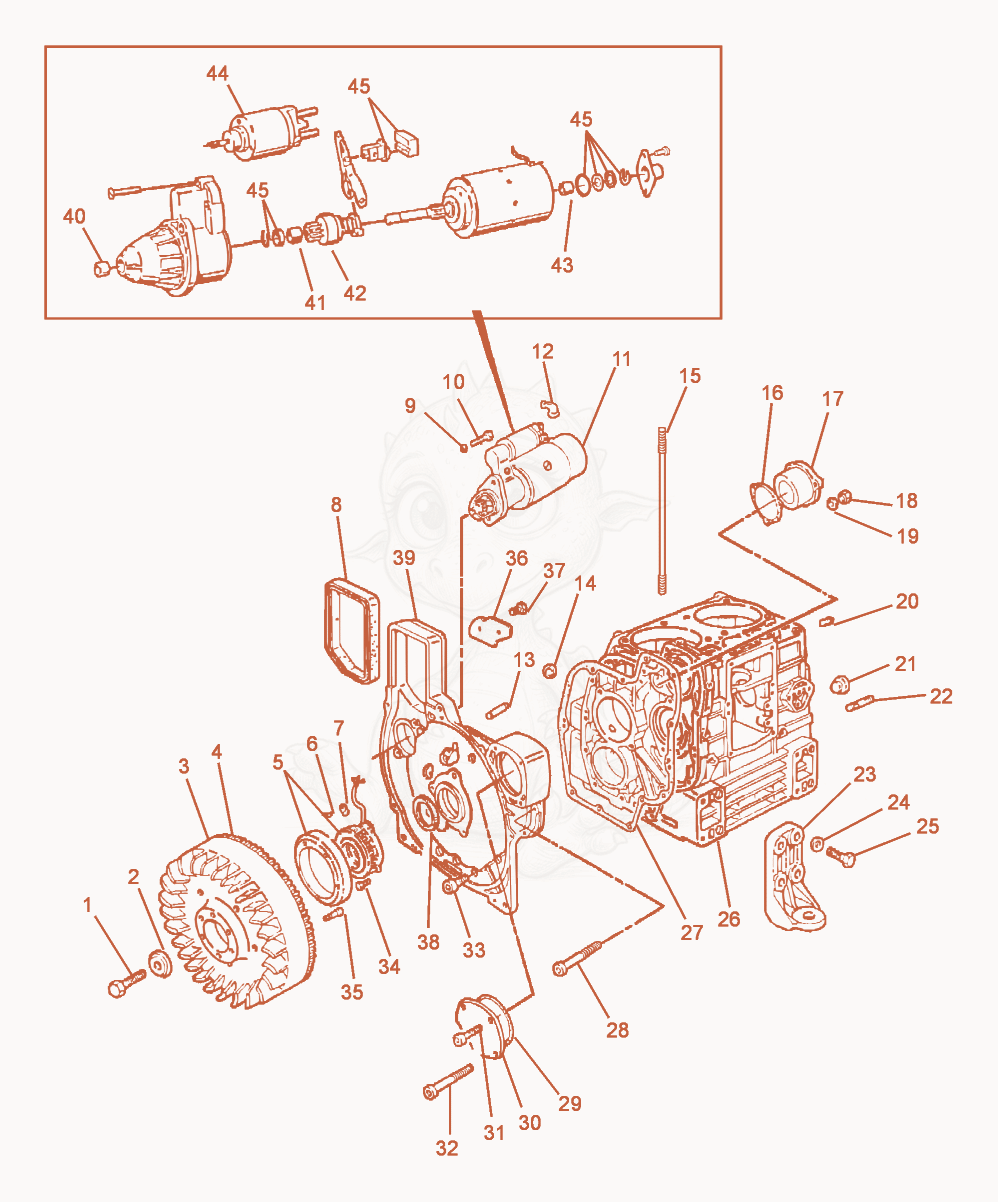

RT820 Engine Block/Alternator/Starter Diagram
- Screw - 5000082101×1
- Washer - 5000063645×1
- NLA FLYWHEEL - 5000096396×1
- GEAR-RING - 5000096397×1
- ALTERNATOR - 5000096395×1
- SCREW M6 X 12 - 5000084158×1
- PAD-STRIP - 5000082150×1
- MOLDING-RUBBER PROFILE - 5000063629×1
- Washer - 5000082289×2
- SCREW M10 X 30 - 5000084164×2
- STARTER-COMPLETE - 5000096398×1
- FITTING-ELBOW - 5000084165×1
- PIN-TAPER - 5000082318×2
- PLUG - 5000063642×1
- STUD - 5000096375×8
- GASKET - 5000063683×1
- Cover - 5000083850×1
- NUT M8 - 5000082140×3
- Washer - 5000082292×3
- Screw - 5000082362×1
- CAP-EXPANSION - 5000083851×1
- STUD M8 X 30 - 5000084167×6
- BRACKET-ENGINE MOUNT - 5000083684×4
- Washer - 5000082289×16
- SCREW M10 X 35 HX.HD. - 5000011438×16
- Crankcase - 5000096393×1
- GASKET - 5000063685×1
- SCREW M8 X 55 - 5000084168×1
- O-Ring - 5000097907×1
- Cover - 5000083845×1
- SCREW M8 X 20 - 5000084169×2
- SCREW M8 X 65 - 5000084170×2
- SCREW M8 X 35 - 5000084171×10
- SCREW M5 X 20 - 5000084172×4
- COVER-PLATE - 5000063641×1
- SCREW M6 X 10 - 5000084131×1
- SEAL-SHAFT 42 X 58 X 10,1B - 5000063681×1
- Housing Flange 5000096394×1
- BUSHING-METAL - 5000083961×1
- BUSHING-METAL - 5000083960×1
- 425000083959Not stockedClutch×1
- CLUTCH,OVER-RUN DRIVE,9 TOOTH - 5000115844×1
- BUSHING-METAL - 5000083962×1
- SWITCH-SOLENOID - 5000083963×1
- SOLENOID-STARTER - 5000115845×1
- STARTER-REPAIR KIT - 5000083964×1
