RT820-TRENCH ROLLER

RT820 Manifold cpl. Diagram

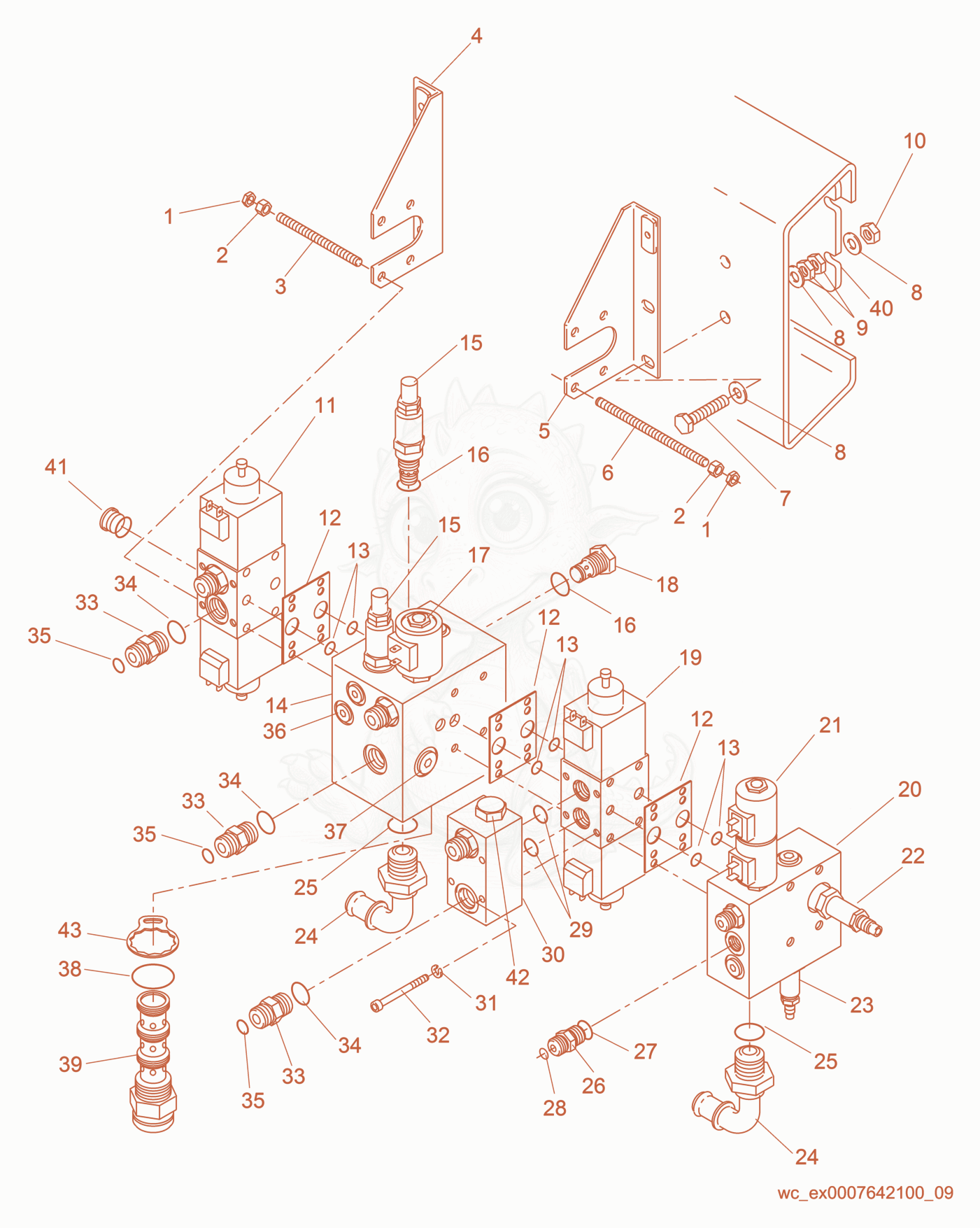

Exploded parts diagram of the Manifold cpl. of a Wacker Neuson RT820, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000010805
    $0.06
    NUT-M8,JAM - 5000010805×8
  • 25000010882
    $0.05
    NUT M8 8,HEX - 5000010882×8
  • 35000087821
    $4.79
    STUD M8 X 3.375 8.8 PL - 5000087821×4
  • 45000082539
    $63.56
    MANIFOLD-BRACKET,RIGHT - 5000082539×1
  • 55000082540
    $64.71
    MANIFOLD-BRACKET,LEFT - 5000082540×1
  • 65000087820
    $2.22
    STUD M8 X 5.625 8.8 PL - 5000087820×4
  • 75000011436
    $0.92
    SCREW M10 X 45 HX.HD. - 5000011436×4
  • 85000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×12
  • 95000010883
    $0.29
    NUT M10 8,HEX - 5000010883×8
  • 105000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 115000086328
    $295.20
    COIL-SOLENOID - 5000086328×1
  • 115000082544
    $2,058.63
    CONTROL-VALVE - 5000082544×1
  • 125000082542
    $36.65
    SPACER-PLATE - 5000082542×3
  • 135000082541
    $0.69
    O-RING .551 X.070 DURO70 2-015 - 5000082541×6
  • 145000081600
    $8,355.86
    MANIFOLD-EXCITER & DRIVE - 5000081600×1
  • 155000089635
    $177.51
    VALVE-RELIEF,3000 PSI,HYD - 5000089635×2
  • 165000080733
    $0.45
    O-RING .755 X.097 DURO90 3-910 - 5000080733×4
  • 175000083929
    $237.00
    VALVE-HYD. SOLENOID 2-WAY, NC - 5000083929×1
  • 185000083926
    $52.67
    VALVE-HYDRAULIC CHECK - 5000083926×1
  • 195000083043
    $6,239.16
    CONTROL-VALVE - 5000083043×1
  • 195000086328
    $295.20
    COIL-SOLENOID - 5000086328×1
  • 205000081599
    $2,112.19
    MANIFOLD-STEERING - 5000081599×1
  • 215000083933
    $484.08
    VALVE-HYD.SOLENOID 4-WAY 3 POS - 5000083933×1
  • 225000083935
    $242.43
    VALVE, HYD. FLOW REGULATOR - 5000083935×1
  • 235000083934
    $125.85
    VALVE, HYD. RELIEF - 5000083934×1
  • 245000088342
    $51.56
    FITTING 90 DEG. BEADED INSERT - 5000088342×2
  • 255000080734
    $0.56
    O-RING .924 X.116 DURO90 3-912 - 5000080734×2
  • 265000078816
    $4.99
    FITTING-MALE ADAPTER,STRAIGHT - 5000078816×2
  • 275000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×2
  • 285000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×2
  • 295000083970
    $0.37
    O-RING .926 ID X .070 THK.DIA - 5000083970×2
  • 305000083042
    $1,565.22
    VALVE-DUAL PILOT CHECK - 5000083042×1
  • 315000025647
    $0.03
    WASHER-LOCK 1/4,MED. - 5000025647×4
  • 335000081583
    $4.00
    FITTING #8 - 5000081583×6
  • 345000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×6
  • 355000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×6
  • 365000087067
    $6.00
    FITTING-SAE PLUG 06,SPECIAL - 5000087067×8
  • 365000087337
    $1.72
    O-ring - 5000087337×8
  • 375000087068
    $5.89
    FITTING-SAE PLUG 08,SPECIAL - 5000087068×4
  • 375000087338
    $2.61
    O-ring - 5000087338×4
  • 385000080735
    $0.77
    O-RING 1.171 X.116 DUR90 3-916 - 5000080735×1
  • 395000083927
    $225.46
    VALVE-3-WAY PILOT OPERATED - 5000083927×1
  • 405000086504
    $72.49
    PLATE-DECODER MOUNTING - 5000086504×1
  • 415000052947
    $1.63
    PLUG-HOLLOW HEX. - 5000052947×2
  • 425000080733
    $0.45
    O-RING .755 X.097 DURO90 3-910 - 5000080733×1
  • 435000110913
    $21.42
    KIT-LOCKING PLATE,VALVE - 5000110913×1
