Telehandlers

TH730(415-14) exhaust system Diagram

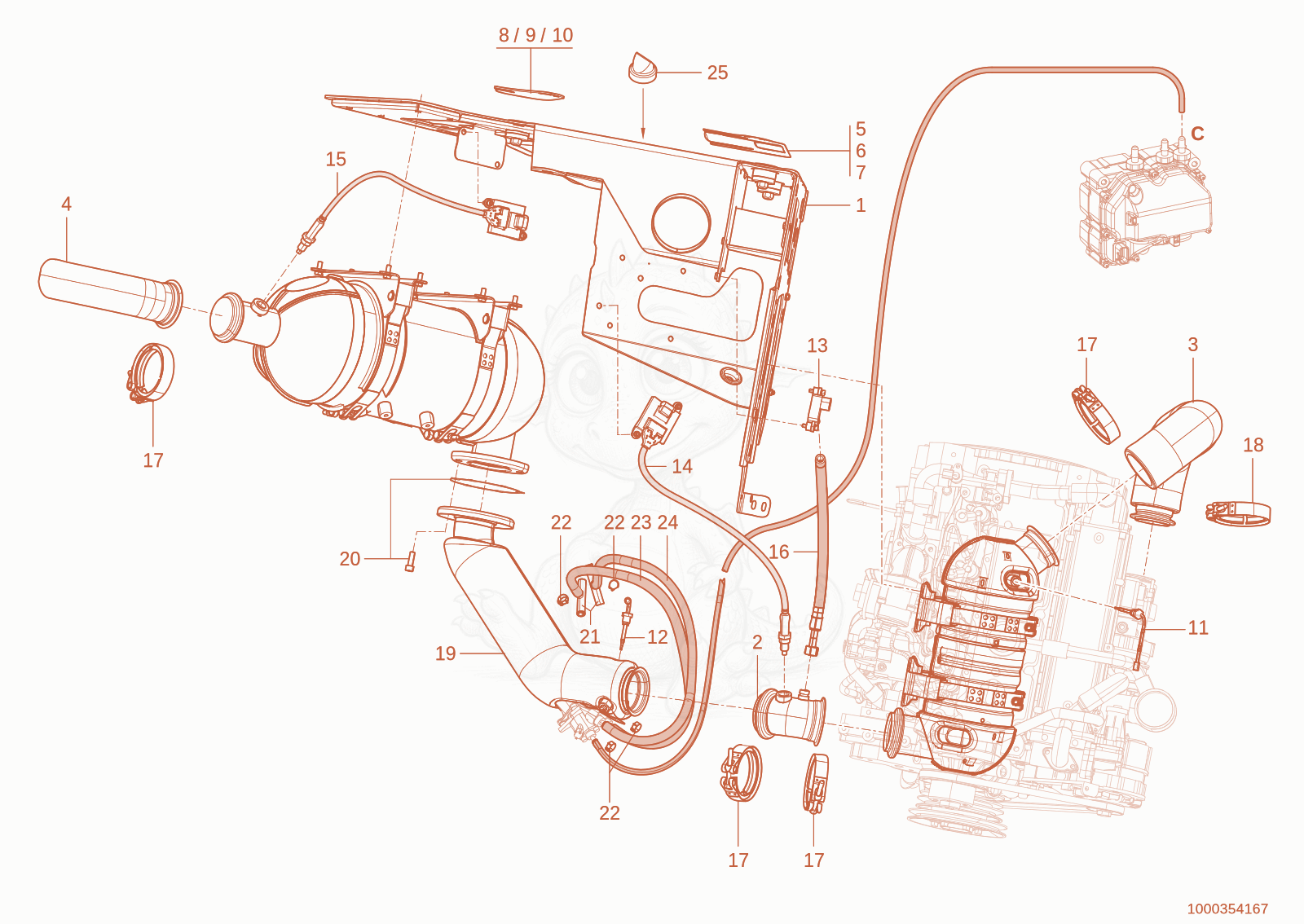

Exploded parts diagram of the exhaust system of a Wacker Neuson TH730(415-14), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000349487Not stocked
    console×1
  • 21000337492Not stocked
    exhaust pipe×1
  • 31000337861Not stocked
    exhaust pipe×1
  • 41000337839Not stocked
    exhaust pipe×1
  • 51000338708Not stocked
    shim×1
  • 61000338707Not stocked
    shim×1
  • 71000338047Not stocked
    shim×1
  • 81000338706Not stocked
    shim×1
  • 91000338705Not stocked
    shim×1
  • 101000338126Not stocked
    shim×1
  • 111000354179Not stocked
    temperature sensor×1
  • 121000354180Not stocked
    temperature sensor×1
  • 131000354211Not stocked
    pressure sensor×1
  • 141000354212
    $1,430.29
    Sensor - 1000354212×1
  • 151000354213
    $1,396.30
    Sensor - 1000354213×1
  • 161000354214Not stocked
    pipe line×1
  • 171000354215Not stocked
    clamp×4
  • 181000354216Not stocked
    clamp×1
  • 191000354217Not stocked
    exhaust pipe×1
  • 201000354218
    $237.71
    VERSCHRAUBUNG - 1000354218×1
  • 211000380468Not stocked
    connection piece×2
  • 221000282351Not stocked
    clamp×4
  • 231000331219Not stocked
    heater hose×0.8
  • 241000331219Not stocked
    heater hose×0.8
  • 251000352517Not stocked
    Dust cap×1
