Telehandlers

TH730(415-14) Drives cycle DPF Diagram

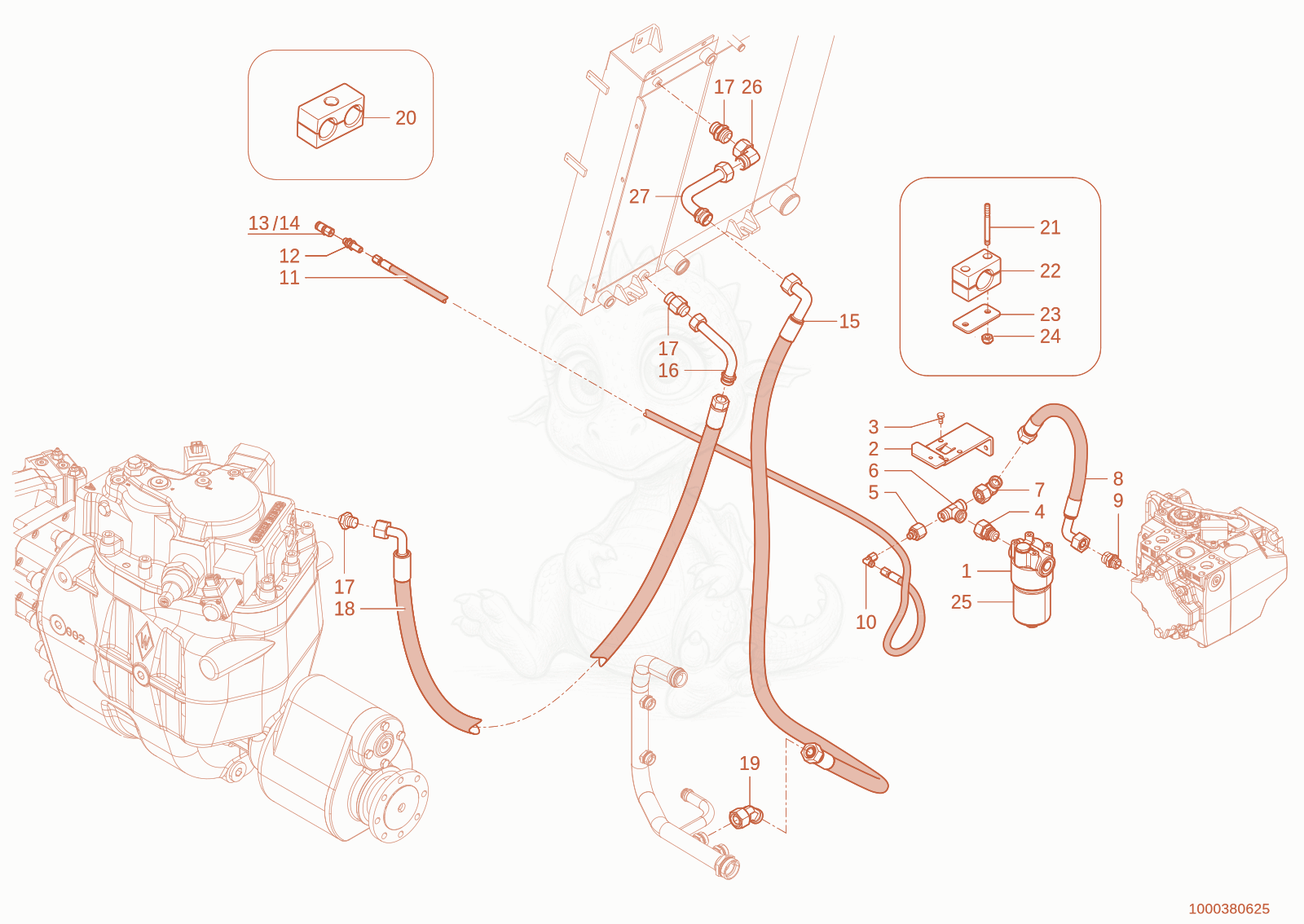

Exploded parts diagram of the Drives cycle DPF of a Wacker Neuson TH730(415-14), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155248
    $131.36
    Filter 1000155248×1
  • 21000271072Not stocked
    bracket×1
  • 31000019136Not stocked
    hex screw×1
  • 41000028724Not stocked
    screw joint×1
  • 51000028266Not stocked
    screw joint×1
  • 61000028618Not stocked
    screw joint×1
  • 71000015513Not stocked
    screw joint×1
  • 81000240463
    $58.36
    SLHYDR 2SC 16 PN18 0 PN18 90 L500,0 - 1000240463×1
  • 91000085044
    $23.63
    GE18L7/8UNFOMDA3C - 1000085044×1
  • 101000085055
    $7.50
    EW06LOMDA3C - 1000085055×1
  • 111000290036Not stocked
    Hose×1
  • 121000028417
    $2.76
    SV06-L - 1000028417×1
  • 131000270654Not stocked
    minimess point×1
  • 141000028660Not stocked
    minimess point×1
  • 151000290035Not stocked
    Hose×1
  • 161000283624Not stocked
    connection piece×1
  • 171000085056
    $6.47
    GE22LMEDOMDA3C - 1000085056×3
  • 181000290017Not stocked
    Hose×1
  • 191000186876
    $68.85
    EW45��22-L A3C - 1000186876×1
  • 201000052646Not stocked
    clamp×1
  • 211000048887
    $1.31
    STUD - 1000048887×2
  • 221000031124
    $4.90
    CLAMP - 1000031124×1
  • 231000031685Not stocked
    cover plate×1
  • 241000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 251000109115
    $42.69
    HYDRAULIC OILFILTER - 1000109115×1
  • 261000020261
    $17.85
    EW22LOMD - 1000020261×1
  • 271000283624Not stocked
    connection piece×1
