TH735

TH735(415-36) lubrication line Diagram

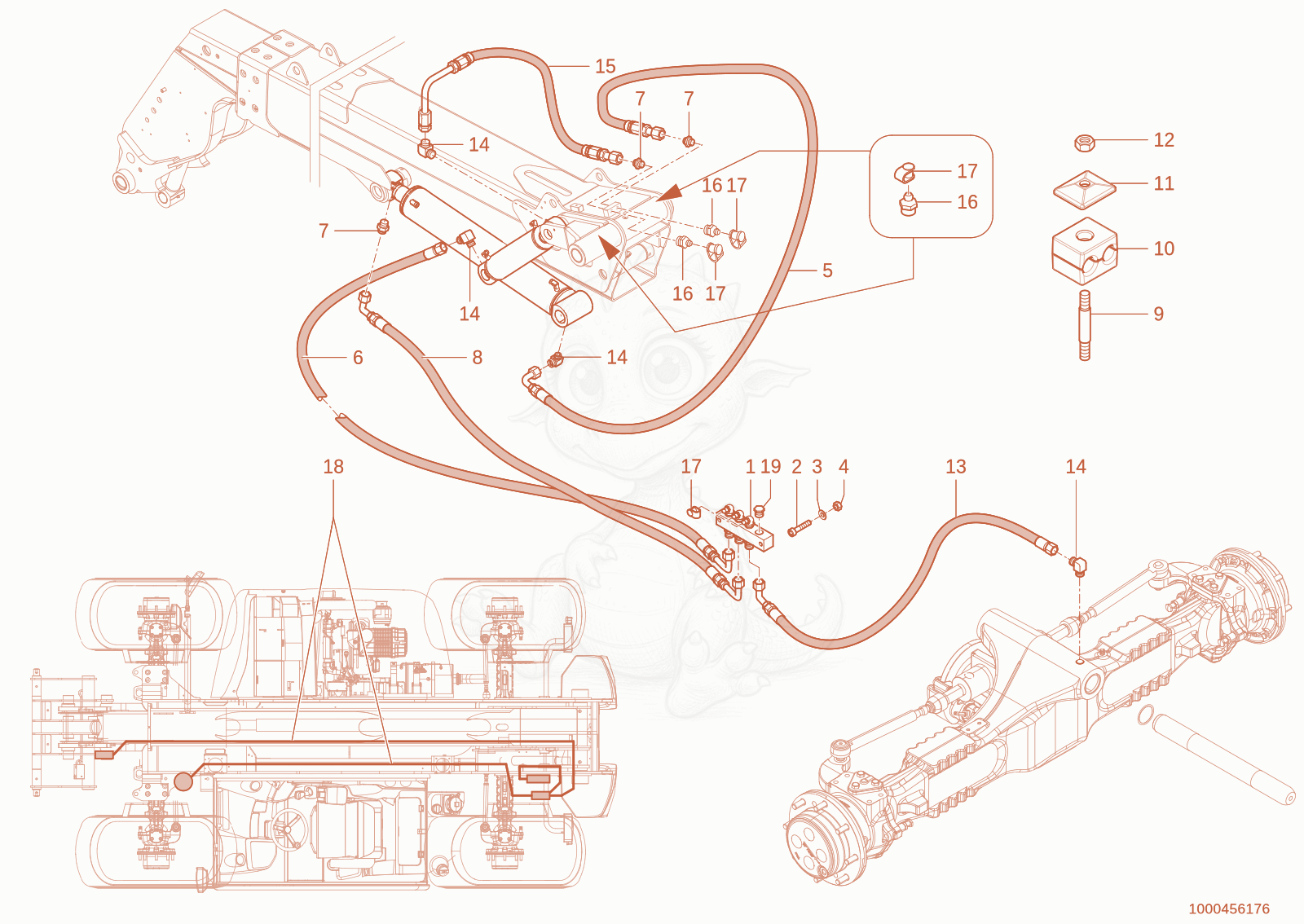

Exploded parts diagram of the lubrication line of a Wacker Neuson TH735(415-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000150149
    $168.74
    Nipple block - 1000150149×1
  • 21000126329
    $2.30
    CHEESE HEAD SCREW - 1000126329×2
  • 31000095342
    $1.22
    washer X-1000092302 - 1000095342×2
  • 41000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 51000279583Not stocked
    hp hose×1
  • 61000279583Not stocked
    hp hose×1
  • 71000150994
    $1.42
    GE06-LLM10X1K A3C - 1000150994×4
  • 81000279584Not stocked
    hp hose×1
  • 91000048884Not stocked
    stud×1
  • 101000280065Not stocked
    clamp×1
  • 111000031211Not stocked
    cover plate×1
  • 121000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 131000279583Not stocked
    hp hose×1
  • 141000028213Not stocked
    screw joint×4
  • 151000386432Not stocked
    hp hose×1
  • 161000050469
    $1.68
    grease nipple - 1000050469×2
  • 171000033455
    $0.30
    CAP - 1000033455×5
  • 181000322437Not stocked
    lubrication line×1
  • 191000236494
    $0.40
    LOCK PLUG - 1000236494×1
