TH735(415-36) Frame Diagram

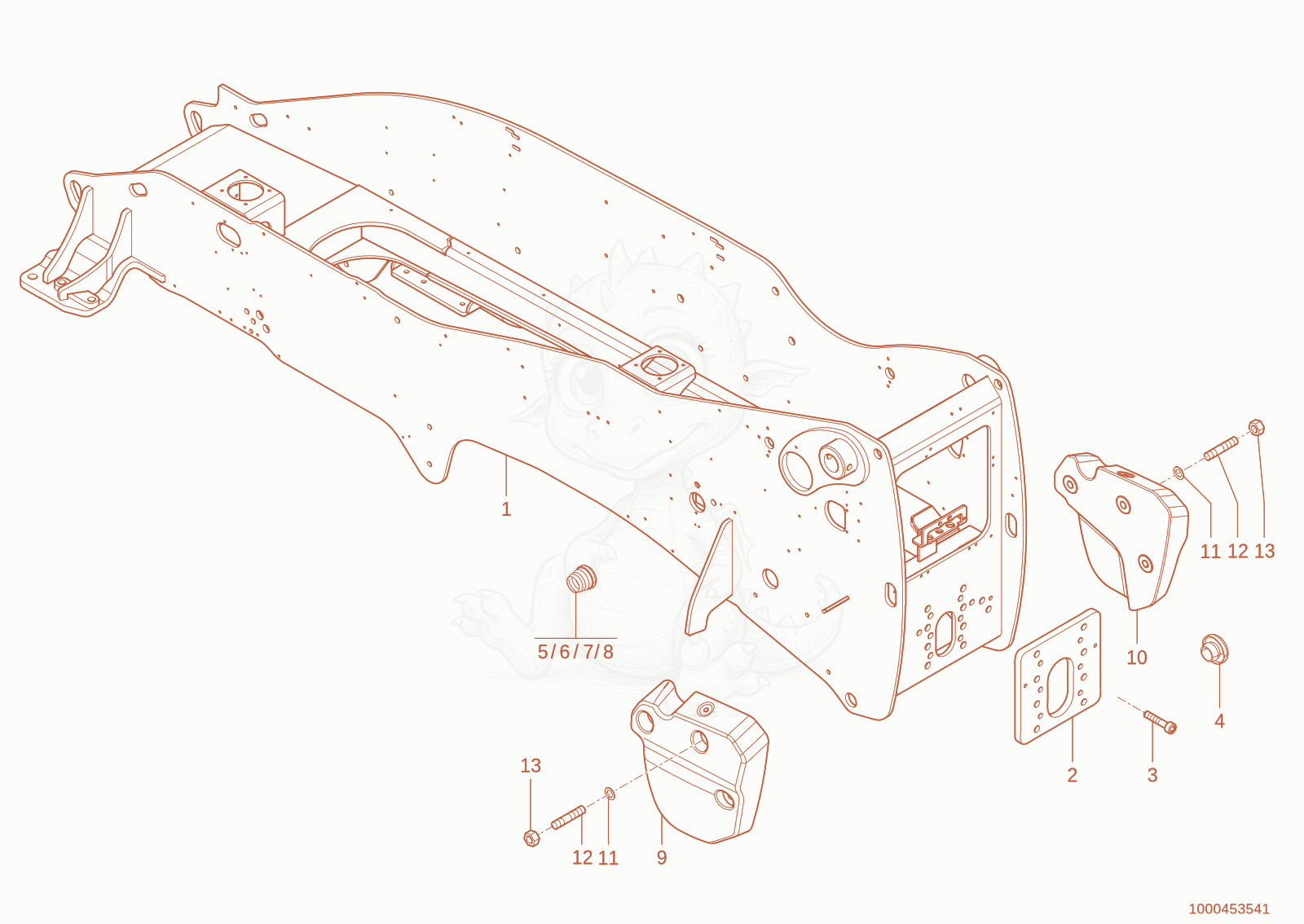

Exploded parts diagram of the Frame of a Wacker Neuson TH735(415-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000430637Not stocked
    frame×1
  • 21000285403
    $2,166.71
    Plate 1000285403×1
  • cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
  • PLUG - 1000099082×12
  • Plug - 1000438046×1
  • Plug - 1000307021×11
  • Plug - 1000153436×4
  • 81000153401
    $10.67
    Plug - 1000153401×6
  • 91000301012Not stocked
    ballast weight×1
  • 101000301007Not stocked
    ballast weight×1
  • 111000020782Not stocked
    washer×6
  • 121000191410
    $7.85
    STUD - 1000191410×6
  • 131000020788Not stocked
    hexagon nut×6
