Telehandler TH744

TH744(416-02) quickhitch plate Diagram

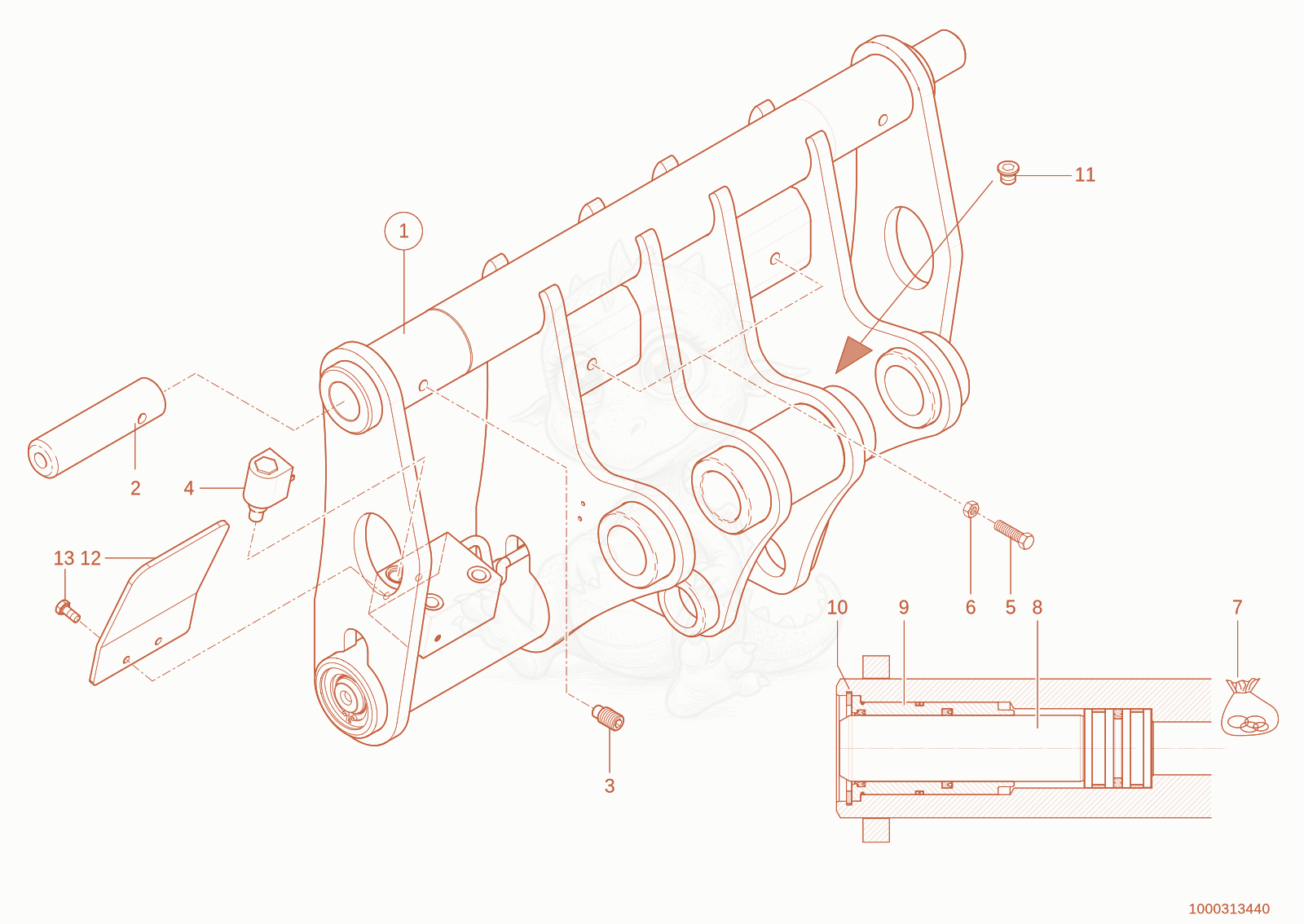

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH744(416-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000304701Not stocked
    quickhitch plate×1
  • 21000137212
    $414.68
    Pin 1000137212×2
  • 31000032970Not stocked
    thread pin×2
  • 41000027822Not stocked
    solenoid valve×1
  • 51000032955Not stocked
    limit stop×2
  • 61000048990Not stocked
    hexagon nut×2
  • 71000313438Not stocked
    seal kit×1
  • 81000269210
    $494.86
    Pistonrod 1000269210×2
  • 91000164943
    $121.90
    Guidetube 1000164943×2
  • 101000049586Not stocked
    lock ring×2
  • 111000100042
    $4.26
    LOCK SCREW - 1000100042×1
  • 121000290336Not stocked
    protection plate×1
  • 131000019136Not stocked
    hex screw×2
