Telehandler TH744

TH744(416-02) tilt ram Diagram

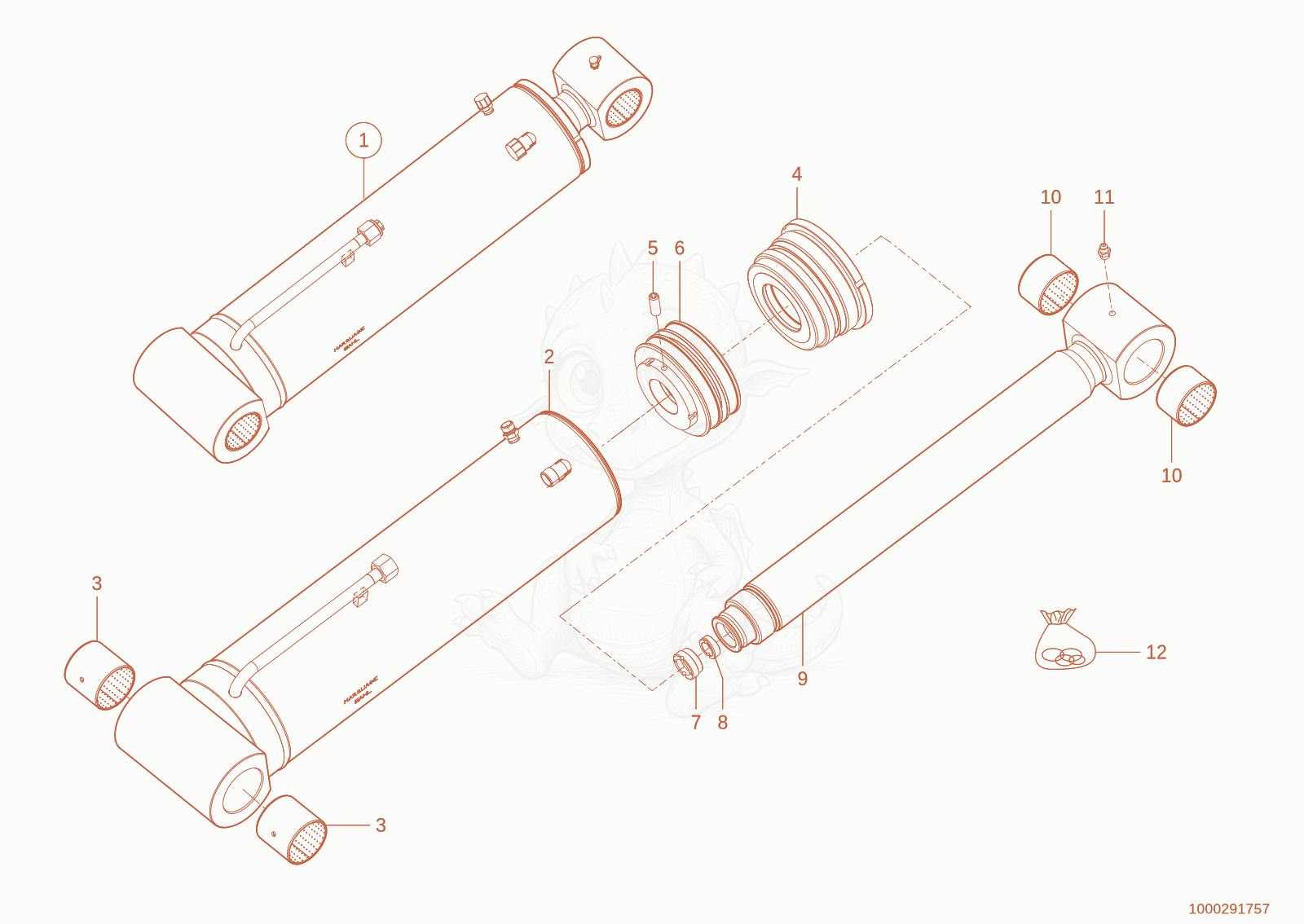

Exploded parts diagram of the tilt ram of a Wacker Neuson TH744(416-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000263810Not stocked
    tilt ram×1
  • 21000286105Not stocked
    cylinder pipe×1
  • 31000297837Not stocked
    bushing×2
  • 41000286106Not stocked
    guide bushing×1
  • 51000110750
    $2.45
    maggotscrew - 1000110750×1
  • 61000286108Not stocked
    piston×1
  • 71000153562Not stocked
    Circlip×1
  • 81000297839Not stocked
    ring×1
  • 91000286104Not stocked
    piston rod×1
  • 101000297838Not stocked
    bushing×2
  • 111000110743
    $24.87
    grease nipple - 1000110743×1
  • 121000286107Not stocked
    Sealing kit×1
