Telehandlers

TH755(416-14) trim Diagram

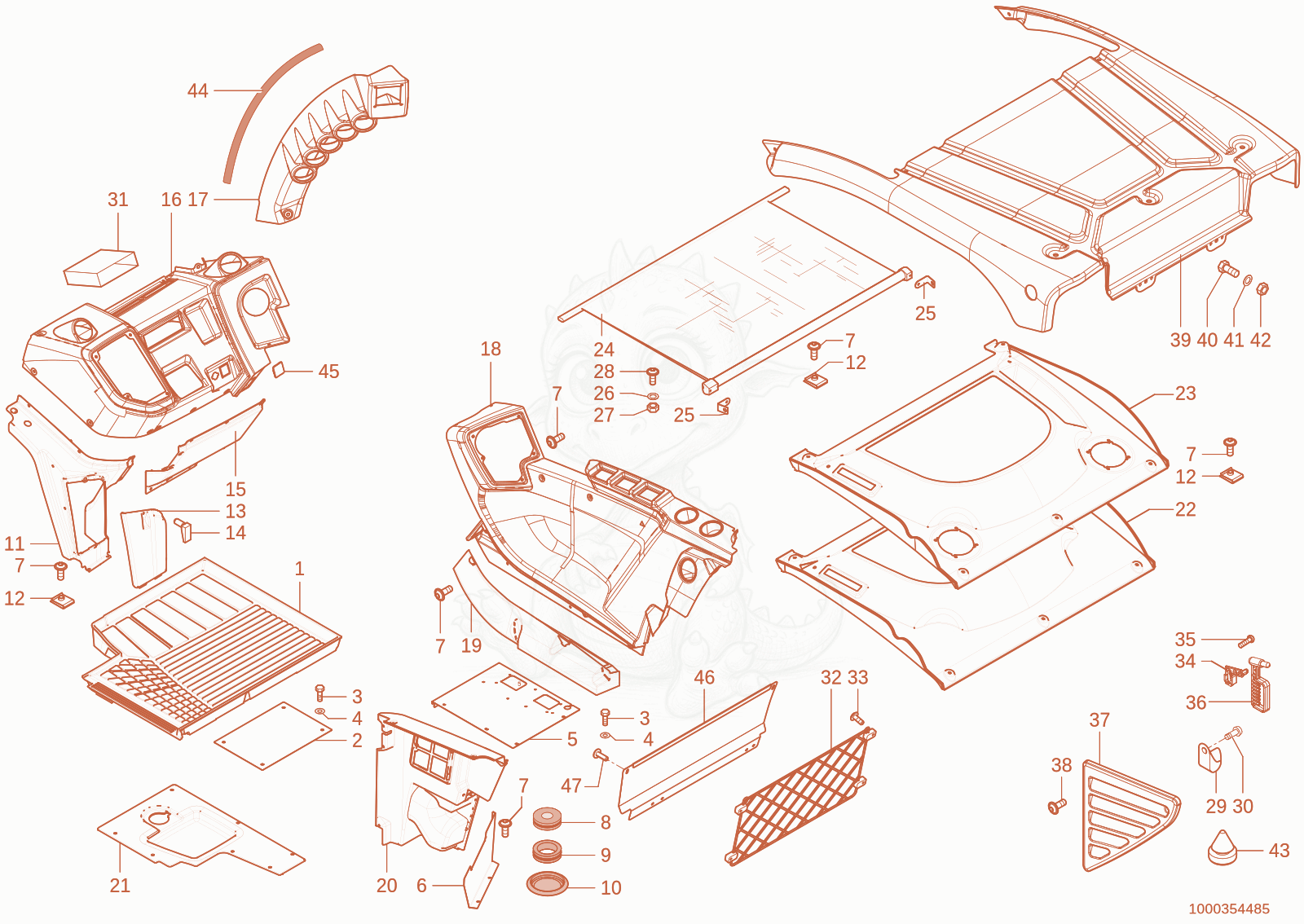

Exploded parts diagram of the trim of a Wacker Neuson TH755(416-14), with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000281875Not stocked
floor rubber mat×1
21000275300Not stocked
Maintenance cover×2
31000013008Not stocked
hex screw×8
41000015431Not stocked
washer×8
51000275302Not stocked
cover plate×1
61000284267Not stocked
seperating sheet×1
71000052670Not stocked
ovalhead screw×59
81000033605
$8.04
JUNCTION - 1000033605×5
91000106433
$5.34
JUNCTION - 1000106433×1
101000284307Not stocked
plug×1
111000281459Not stocked
trim×1
121000030414Not stocked
nut×21
131000281481Not stocked
cover×1
141000147884
$30.08
lock - 1000147884×1
151000281460Not stocked
trim×1
161000338565Not stocked
trim×1
171000349112Not stocked
trim×1
181000349113Not stocked
trim×1
191000281477Not stocked
air guide×1
201000281478Not stocked
Trim×1
211000281471Not stocked
trim×1
221000281458Not stocked
roof trim×1
231000284305Not stocked
roof trim×1
241000284270Not stocked
sun rollblind×1
251000284269Not stocked
angle bracket×2
261000092288
$3.28
WASHER - 1000092288×2
271000049057Not stocked
hexagon nut×2
281000052670Not stocked
ovalhead screw×2
291000103167
$5.08
Hook - 1000103167×1
301000085451
$0.70
allen screw M5x16-8.8 A2C DIN912 - 1000085451×1
311000034773
$32.03
REST - 1000034773×1
321000034772
$31.66
NET - 1000034772×1
331000052485Not stocked
countersunk screw×4
341000284266Not stocked
bracket×1
351000052485Not stocked
countersunk screw×3
361000284265Not stocked
emergency hammer×1
371000285252Not stocked
trim×1
381000187776
$1.11
SCREW - 1000187776×1
391000346496Not stocked
roof trim×1
401000013008Not stocked
hex screw×5
411000013027Not stocked
washer×7
421000013022Not stocked
hexagon nut×2
431000031821Not stocked
rubber buffer×1
441000097176
$5.09
EDGE PROTECTION - 1000097176×2
451000342481Not stocked
cover×1
461000342390Not stocked
cover plate×1
471000289762
$1.16
halfround screw - 1000289762×2
