TH755(416-14) Compressed air brake Diagram

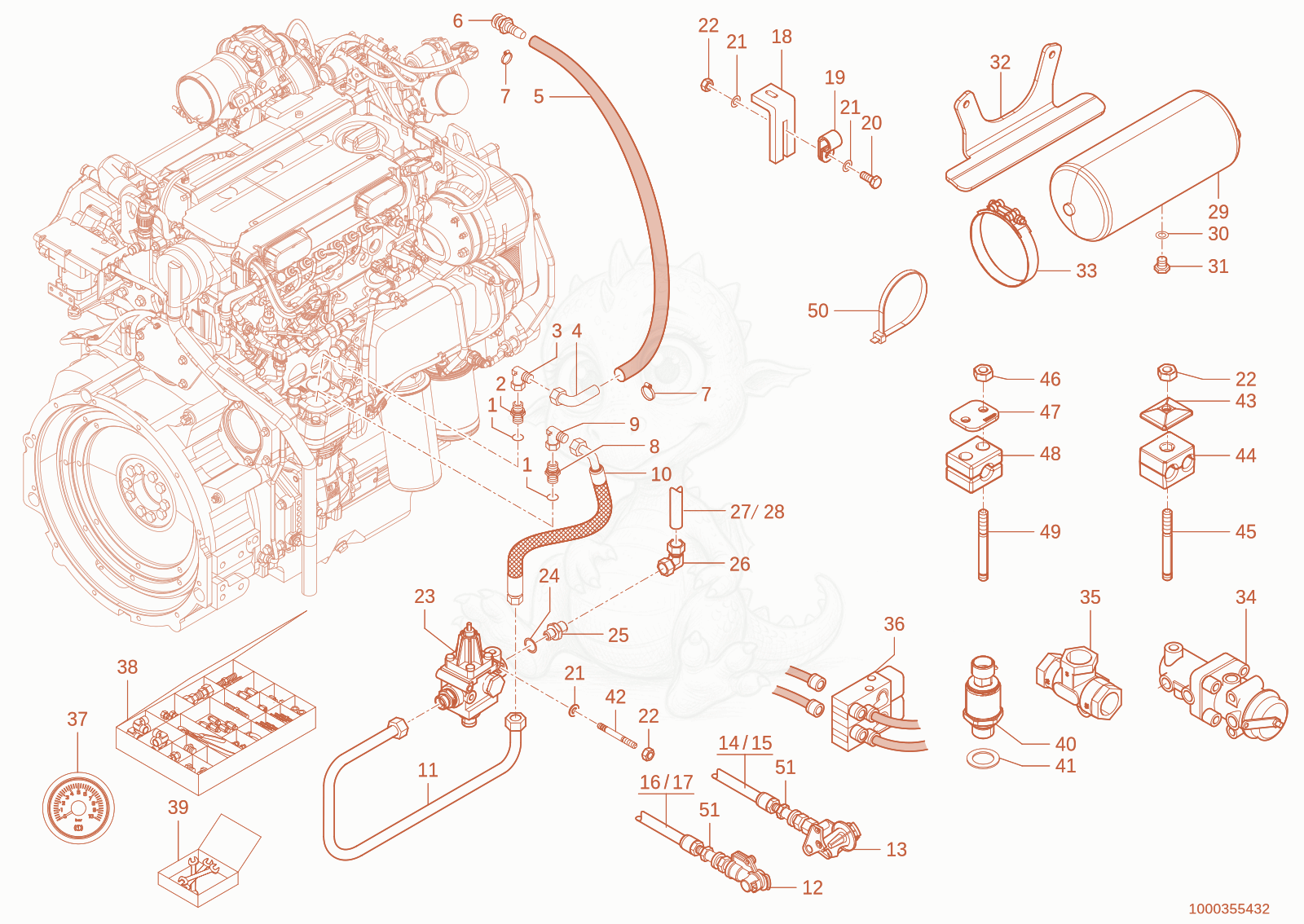

Exploded parts diagram of the Compressed air brake of a Wacker Neuson TH755(416-14), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000159757
    $2.15
    SEAL RING - 1000159757×2
  • 21000320787Not stocked
    screw joint×1
  • 31000015513Not stocked
    screw joint×1
  • 41000320804Not stocked
    pipe line×1
  • 51000159825
    $126.03
    Suction hose - 1000159825×1
  • 61000159620
    $68.90
    SUCTION JOINT - 1000159620×1
  • 71000159830
    $13.76
    Clamp - 1000159830×2
  • 81000320805Not stocked
    screw joint×1
  • 91000015512Not stocked
    screw joint×1
  • 101000159801Not stocked
    metal hose×1
  • 111000320788Not stocked
    pipe line×1
  • 121000159739
    $49.63
    COUPLING - 1000159739×1
  • 131000159740
    $51.62
    COUPLING - 1000159740×1
  • 141000319696Not stocked
    pipe line×1
  • 151000159809
    $8.47
    INSULATING PLASTIC TUBE - 1000159809×1
  • 161000320669Not stocked
    pipe line×1
  • 171000159809
    $8.47
    INSULATING PLASTIC TUBE - 1000159809×1
  • 181000320789Not stocked
    bracket×1
  • 191000264197
    $15.33
    Clamp - 1000264197×1
  • 201000015434Not stocked
    washer×1
  • 211000013027Not stocked
    washer×3
  • 221000013022Not stocked
    hexagon nut×5
  • 231000159641
    $930.42
    Pressure control valve - 1000159641×1
  • 241000159759
    $3.83
    SEAL RING - 1000159759×1
  • 251000251579
    $36.19
    Screw joint - 1000251579×1
  • 261000320790Not stocked
    plug-in connection×1
  • 271000320667Not stocked
    pipe line×1
  • 281000159809
    $8.47
    INSULATING PLASTIC TUBE - 1000159809×1
  • 291000159618Not stocked
    Compressed air tank×1
  • 301000251578
    $2.22
    pressure ring - 1000251578×1
  • 311000319695Not stocked
    valve×1
  • 321000273204Not stocked
    bracket×1
  • 331000159832Not stocked
    clamp×2
  • 341000159734
    $2,529.30
    Control valve - 1000159734×1
  • 351000251415
    $235.21
    replacement valve - 1000251415×1
  • 361000159737
    $614.22
    solenoid valve - 1000159737×2
  • 371000338644Not stocked
    indicator instrument×1
  • 381000251513
    $372.54
    Repair kit Pressure control valve - 1000251513×1
  • 391000251531
    $1,392.04
    Toolbag 1000251531×1
  • 401000282150
    $139.83
    Sensor - 1000282150×1
  • 411000050107Not stocked
    seal ring×1
  • 421000048895Not stocked
    stud×2
  • 431000031230Not stocked
    cover plate×1
  • 441000052646Not stocked
    clamp×1
  • 451000048885Not stocked
    stud×2
  • 461000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 471000031643Not stocked
    cover plate×2
  • 481000032192
    $4.55
    CLAMP - 1000032192×2
  • 491000048884Not stocked
    stud×4
  • 501000089965
    $0.11
    Cable tie 200x4,6 - 1000089965×2
  • 511000166291
    $21.88
    Screw joint - 1000166291×2
