TH755

TH755(416-34) hydraulic pump Diagram

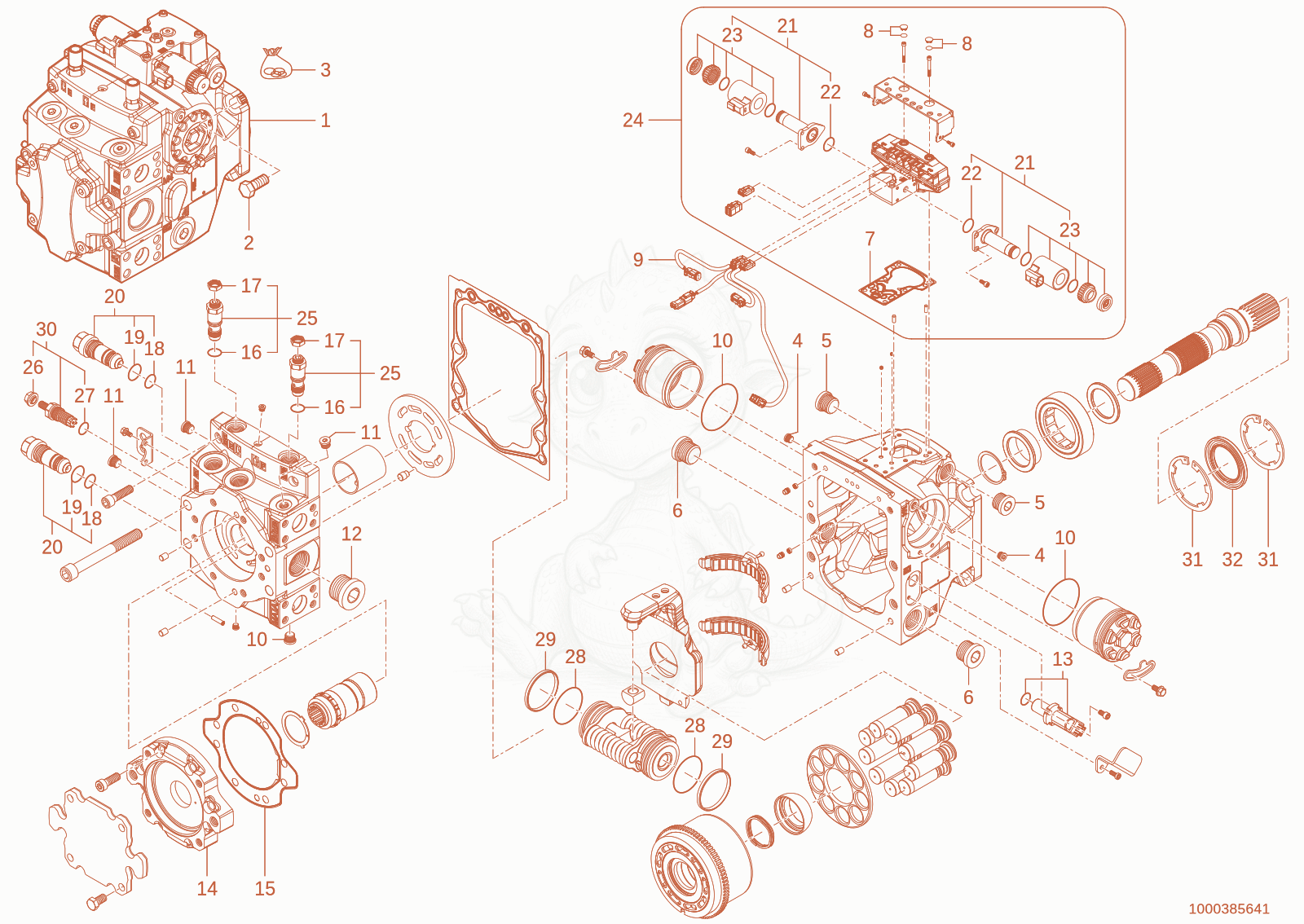

Exploded parts diagram of the hydraulic pump of a Wacker Neuson TH755(416-34), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000339541Not stocked
    displacement pump×1
  • 21000271040
    $17.44
    SCREW - 1000271040×4
  • 31000379751Not stocked
    seal kit×1
  • 41000445968Not stocked
    plug×2
  • 51000087350
    $28.60
    LOCK SCREW - 1000087350×2
  • 61000306072
    $55.30
    plug - 1000306072×2
  • 71000163476
    $24.26
    Seal - 1000163476×1
  • 81000352081Not stocked
    plug×2
  • 91000255509
    $499.19
    cable set - 1000255509×1
  • 101000306074
    $33.26
    O-ring - 1000306074×2
  • 111000255502
    $12.05
    PLUG - 1000255502×1
  • 121000438701Not stocked
    plug×1
  • 131000248725
    $553.36
    SENSOR - 1000248725×1
  • 141000306083
    $982.94
    Adapter - 1000306083×1
  • 151000306082
    $374.36
    Seal - 1000306082×1
  • 161000306058
    $14.67
    O-ring - 1000306058×2
  • 171000306059Not stocked
    hexagon nut×2
  • 181000305943
    $14.67
    O-ring - 1000305943×2
  • 191000305942
    $14.67
    O-ring - 1000305942×2
  • 201000445981Not stocked
    valve×1
  • 211000251079
    $620.24
    Solenoid valve - 1000251079×2
  • 221000251092
    $8.05
    O-ring - 1000251092×2
  • 231000251080
    $568.04
    MAGNET SPOOL - 1000251080×2
  • 241000379755Not stocked
    Service Kit AC Control×1
  • 251000364873Not stocked
    pressure limit reliefvalve×1
  • 261000379752Not stocked
    seal lock nut×1
  • 271000145673
    $5.83
    O-ring - 1000145673×1
  • 281000306071
    $14.67
    O-ring - 1000306071×2
  • 291000306060
    $93.50
    O-ring - 1000306060×2
  • 301000445991Not stocked
    valve×1
  • 311000306078
    $29.08
    Circlip - 1000306078×2
  • 321000306077Not stocked
    shaft seal×1
