TH755

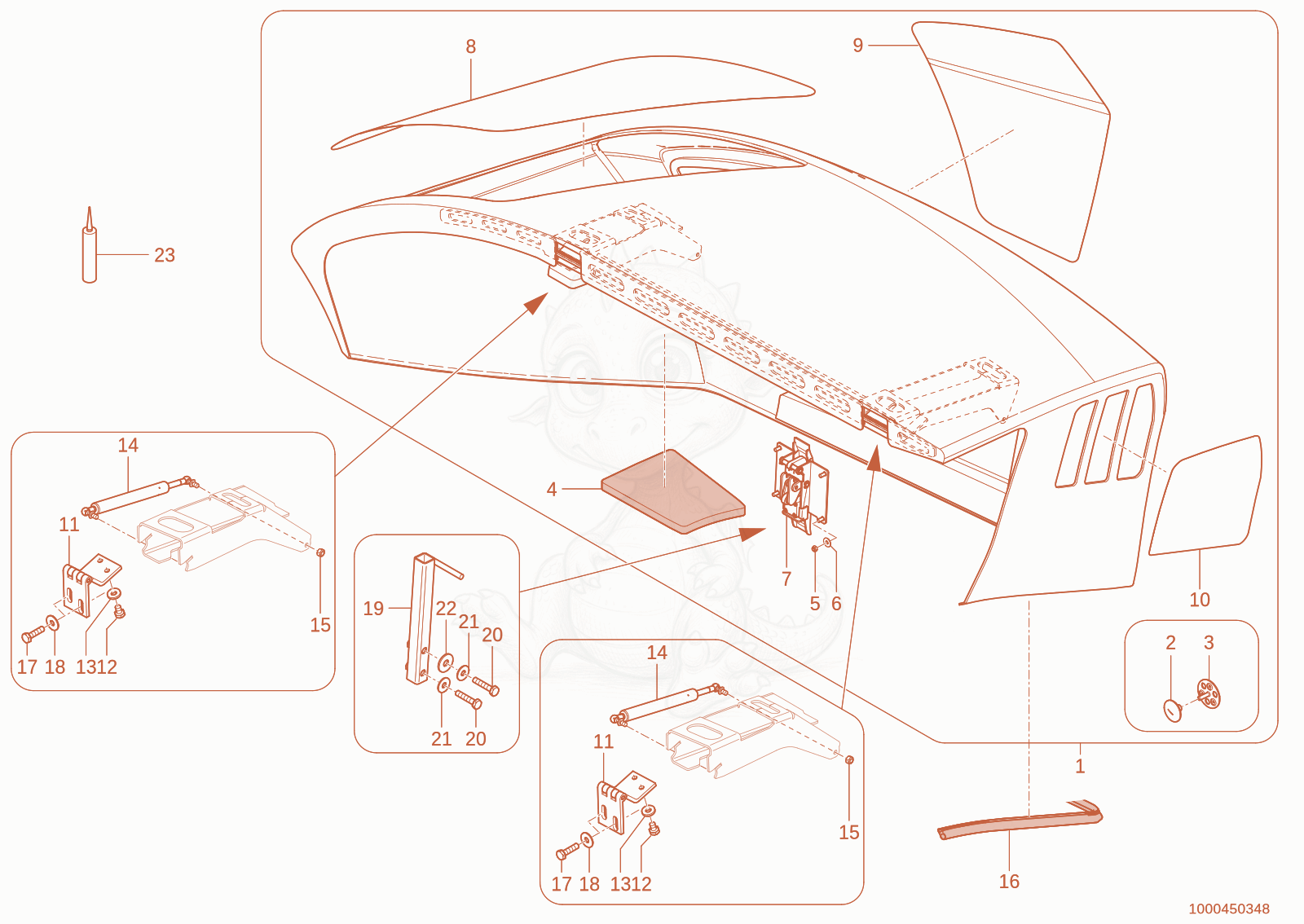

TH755(416-34) engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson TH755(416-34), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000417525Not stocked
    engine hood×1
  • 21000222669
    $13.65
    Clip - 1000222669×14
  • 31000222673
    $76.48
    MOUNTING - 1000222673×14
  • 41000365759Not stocked
    insulating mat×1
  • 51000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 61000049283Not stocked
    bearing disc×4
  • 71000379492
    $195.31
    Lock - 1000379492×1
  • 81000344148Not stocked
    screen×1
  • 91000344150Not stocked
    screen×1
  • 101000373827Not stocked
    screen×1
  • 111000154691
    $65.87
    Hinge - 1000154691×2
  • 121000013009Not stocked
    hex screw×4
  • 131000049278Not stocked
    washer×4
  • 141000503590
    $48.61
    Gas spring 1000N - 1000503590×2
  • 151000013022Not stocked
    hexagon nut×2
  • 161000097173
    $26.59
    Profile - 1000097173×4
  • 171000015346Not stocked
    hex screw×6
  • 181000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×6
  • 191000148162
    $109.87
    bar - 1000148162×1
  • 201000085414
    $0.98
    hex screw - 1000085414×2
  • 211000092291
    $0.80
    WASHER - 1000092291×2
  • 221000085613
    $0.10
    washer - 1000085613×1
  • 231000052895
    $47.64
    sealing compound - 1000052895×1
