VP2050AW Single Direction Vibratory Plate

VP2050AWUS Camshaft Diagram

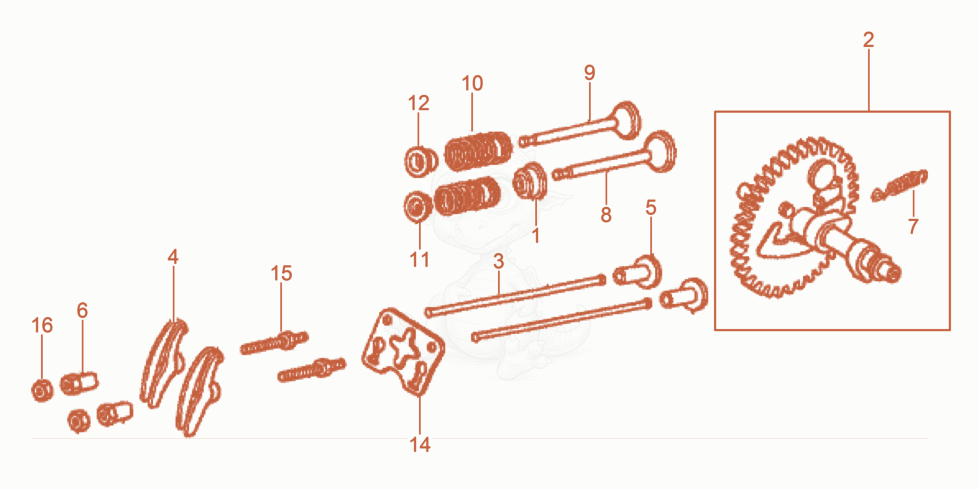

Exploded parts diagram of the Camshaft of a Wacker Neuson VP2050AWUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100005349
    $9.08
    Gasket - 5100005349×1
  • 25100005439Not stocked
    Camshaft cpl.×1
  • 35100005440Not stocked
    Push rod×2
  • 45000070986
    $9.08
    ROCKER ARM-VALVE,ENGINE - 5000070986×2
  • 55000070990
    $17.34
    TAPPET-VALVE,ENGINE - 5000070990×2
  • 65000070985
    $7.60
    PIVOT-ROCKER ARM - 5000070985×2
  • 75000151028
    $3.98
    SPRING-WEIGHT RETURN - 5000151028×1
  • 85100005441Not stocked
    Intake valve×1
  • 95100005442Not stocked
    Outlet valve×1
  • 105000081760
    $5.49
    SPRING-ENGINE VALVE - 5000081760×2
  • 115000070996
    $1.47
    Cup spring - 5000070996×1
  • 125000070996
    $1.47
    Cup spring - 5000070996×1
  • 145100005443Not stocked
    Guide plate×1
  • 155000072778
    $10.09
    STUD-ROCKER ARM PIVOT - 5000072778×2
  • 165000070984
    $4.97
    NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×2
