VP2050Y-VIBROPLATE (EPA)

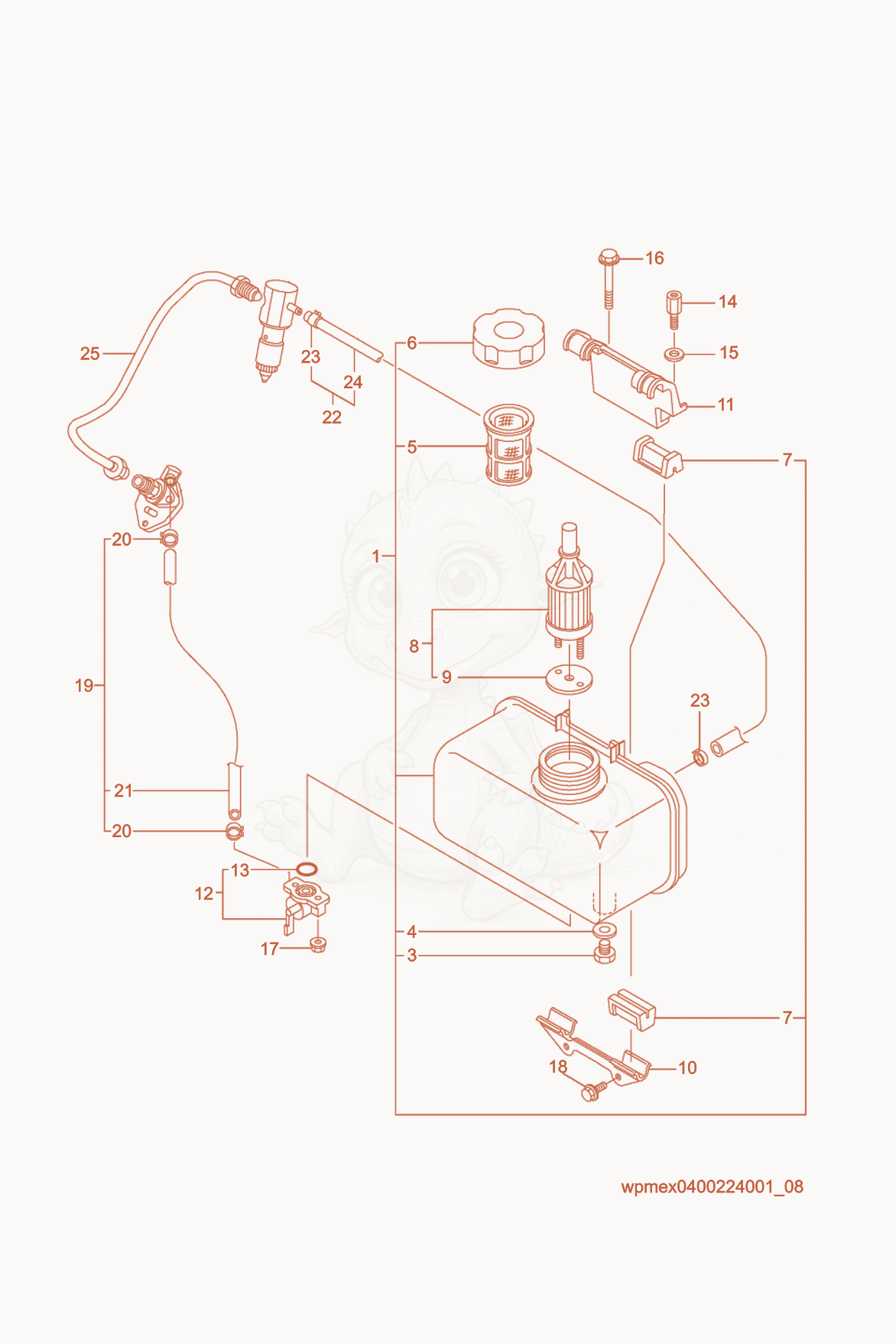

VP2050Y Fuel Tank cpl. Diagram
- Fuel tank - 5000213265×1
- DRAIN PLUG - 5000213242×1
- GASKET - 5000119882×1
- Fuel filter - 5000213243×1
- CAP-ASSY,FUEL TANK - 5000213241×1
- MOLDING-RUBBER,EDGE PROTECTOR - 5000073747×4
- FILTER-FUEL - 5000095950×1
- seal - 5000073746×1
- BRACKET-TANK,LOWER - 5000119886×1
- BRACKET-TANK,UPPER - 5000119887×1
- VALVE-FUEL,SHUTOFF - 5000153991×1
- O-RING 15 X 1.3 (S-15) - 5000073751×1
- Bolt - 5000213244×1
- washer - 5000085567×1
- SCREW M8 X 45,HEX.FLANGE - 5000085536×1
- NUT-M6 - 5000119722×2
- SCREW M6 X 16,HX.FLANGE - 5000073659×2
- PIPE ASSY,FUEL OIL - 5000210560×1
- CLIP-HOSE - 5000210561×2
- HOSE-FUEL OIL - 5000119891×1
- Pipe - 5000213257×1
- Clamp - 5000073714×2
- PIPE-FUEL - 5000073719×1
- PIPE-INJECTION,FUEL - 5000119706×1
