VP2050Y-VIBROPLATE (EPA)

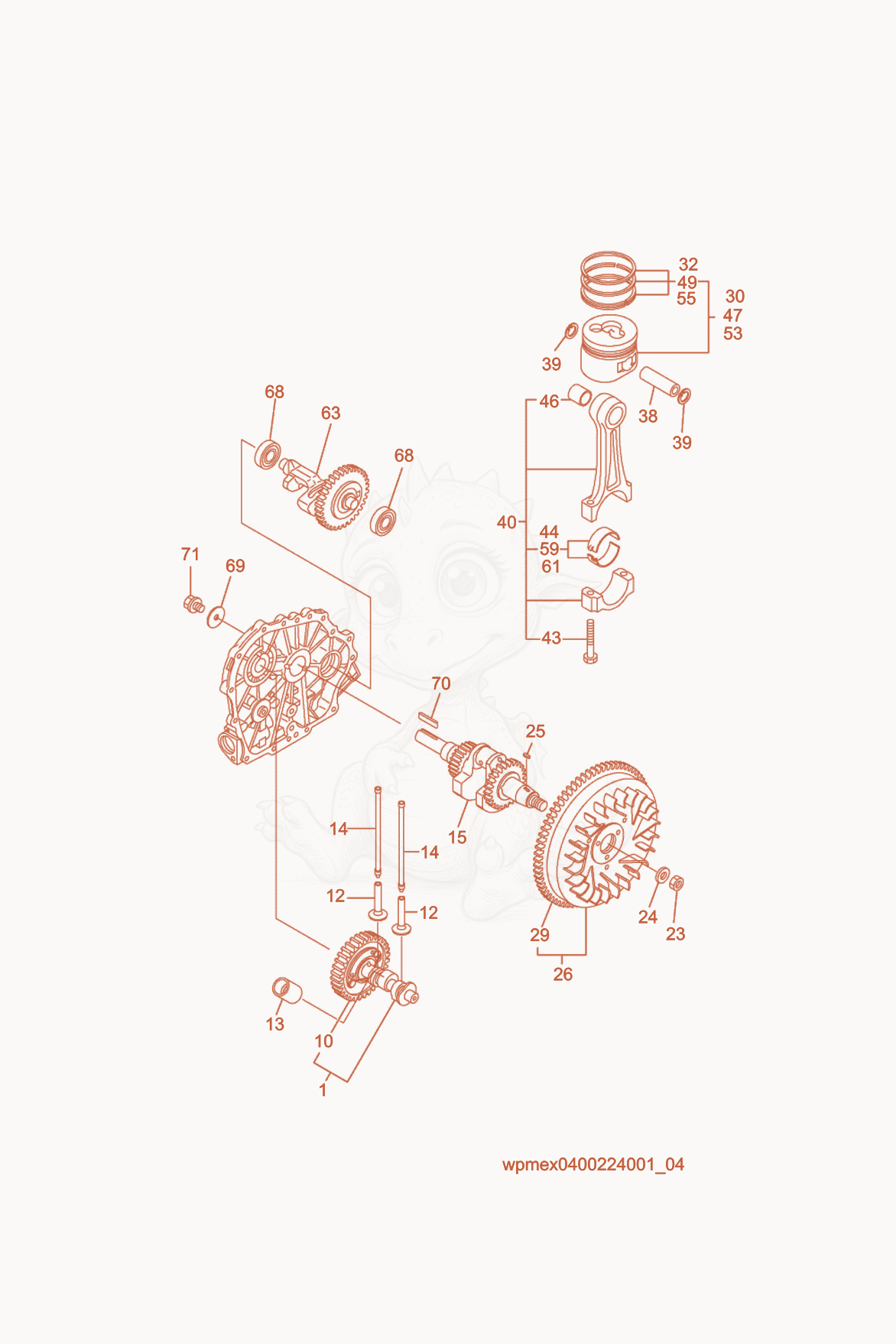

VP2050Y Piston/Crankshaft Diagram
- CAMSHAFT ASSEMBLY - 5000119699×1
- spring - 5000119743×1
- Tappet - 5000213235×2
- tappet - 5000119744×1
- PUSHROD - 5000096737×2
- CRANKSHAFT CPL - 5000213267×1
- NUT - 5000210505×1
- WASHER,FLYWHEEL - 5000210508×1
- KEY 4 X 4 X 12 - 5000073670×1
- FLYWHEEL CPL - 5000213236×1
- Ring gear - 5000213237×1
- PISTON W/RINGS - 5000213263×1
- 325000213256Not stockedPiston Ring Set×1
- PIN - 5000096727×1
- RET.RING - 5000085602×2
- CONNECTING ROD COMPLETE,STEEL - 5000153431×2
- bolt - 5000119749×2
- BEARING-CRANKPIN - 5000119747×1
- BUSHING-PISTON PIN - 5000119750×1
- Piston w/ring - 5000213262×1
- Ring Set - 5000213259×1
- Piston w/ring - 5000213261×1
- RING SET - 5000213260×1
- BEARING-PIN U.S.=0.25 - 5000119724×1
- BEARING-PIN U.S.=0.50 - 5000119740×1
- Shaft - 5000213266×1
- Ball bearing - 5000210519×2
- washer - 5000073674×1
- KEY-CRANKSHAFT 5X30 - 5000153979×1
- BOLT M8X20,PLATED - 5000153980×1
