VP2050Y-VIBROPLATE (EPA)

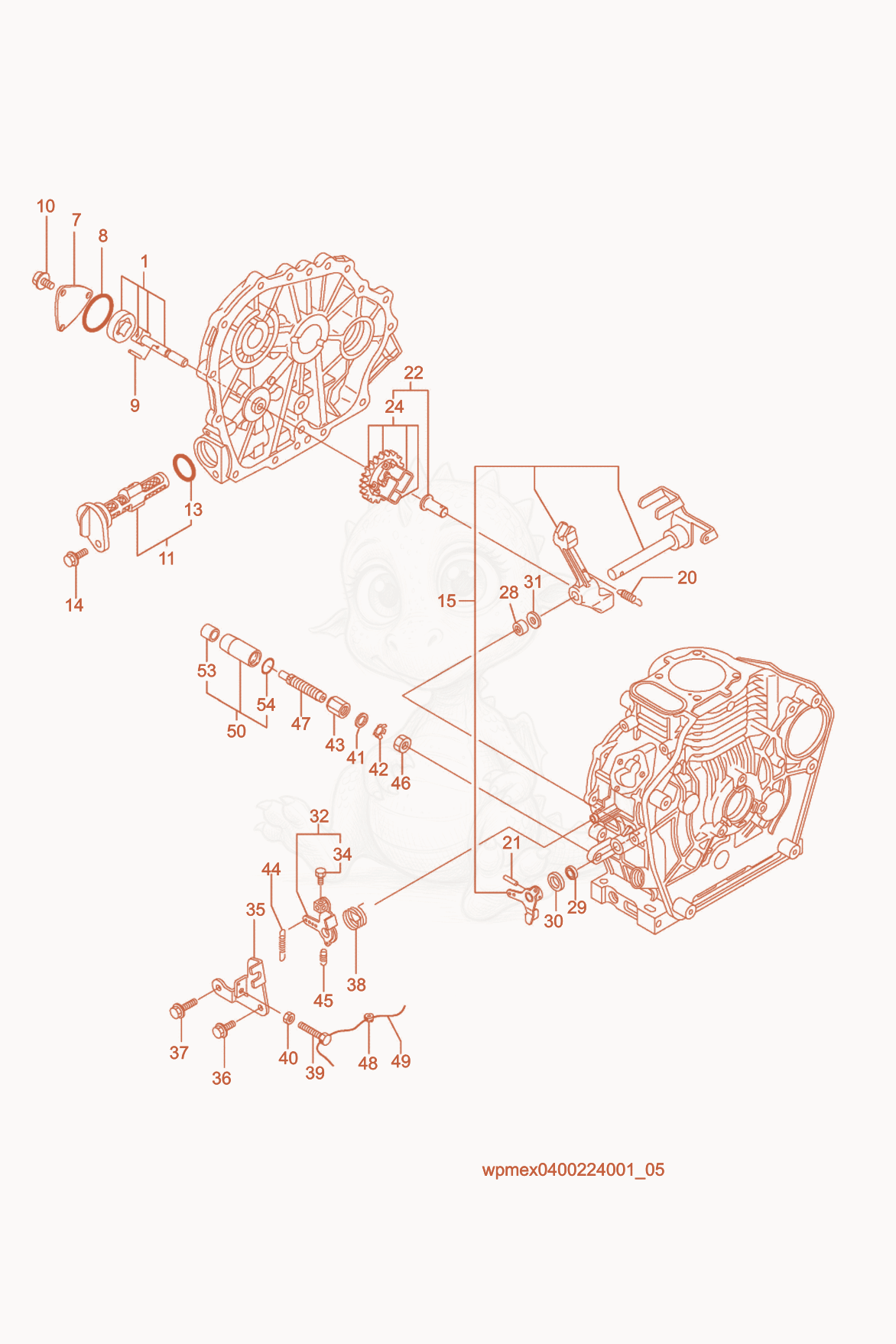

VP2050Y Oil Pump/Governor Diagram
- PUMP-OIL CIRCULATION - 5000073698×1
- COVER,LUB.OIL PUMP - 5000210520×1
- O-RING,COVER - 5000210618×1
- PIN 3 X 16 - 5000073648×1
- BOLT-M6 X 12 - 5000119897×3
- FILTER-OIL - 5000096745×1
- O-RING 22.4 X 1.8 (S-22.4) - 5000073693×1
- SCREW M6 X 16,HX.FLANGE - 5000073659×1
- GOVERNOR LEVER CPL - 5000213213×1
- Spring - 5000213253×1
- PIN-TAPER 3 X 20 - 5000119854×1
- GOVERNOR ASSEMBLY - 5000119855×1
- WEIGHT-ASSEMBLY,GOVERNOR - 5000153981×1
- Bearing - 5000213214×2
- SEAL-OIL - 5000210526×1
- WASHER-THRUST - 5000087375×1
- WASHER,GOVERNOR - 5000210527×1
- Handle - 5000213205×1
- SCREW-INNER WIRE - 5000210529×1
- Bracket - 5000213255×1
- BOLT M6X14,PLATED - 5000210533×1
- BOLT M6X20 - 5000150361×1
- SPRING RETURN - 5000210536×1
- BOLT-ADJUSTING - 5000210538×1
- NUT-LOCK M6,HEX. - 5000073638×1
- 415000213215Not stockedWasher×1
- Plate - 5000155336×1
- Nut - 5000213216×1
- SPRING-TENSION - 5000096756×1
- SPRING RETURN - 5000210534×1
- Nut - 5000213219×1
- FUEL LIMITER ASSY,14MM - 5000155338×1
- Cable holder - 5000213254×1
- WIRE-0.6 - 5000119859×1
- PROTECTOR - 5000213218×1
- Spacer - 5000213217×1
- O-RING 18 X 2.2 (P-18) - 5000073609×1
