VPA1340 Baseplate/Console cpl. Diagram

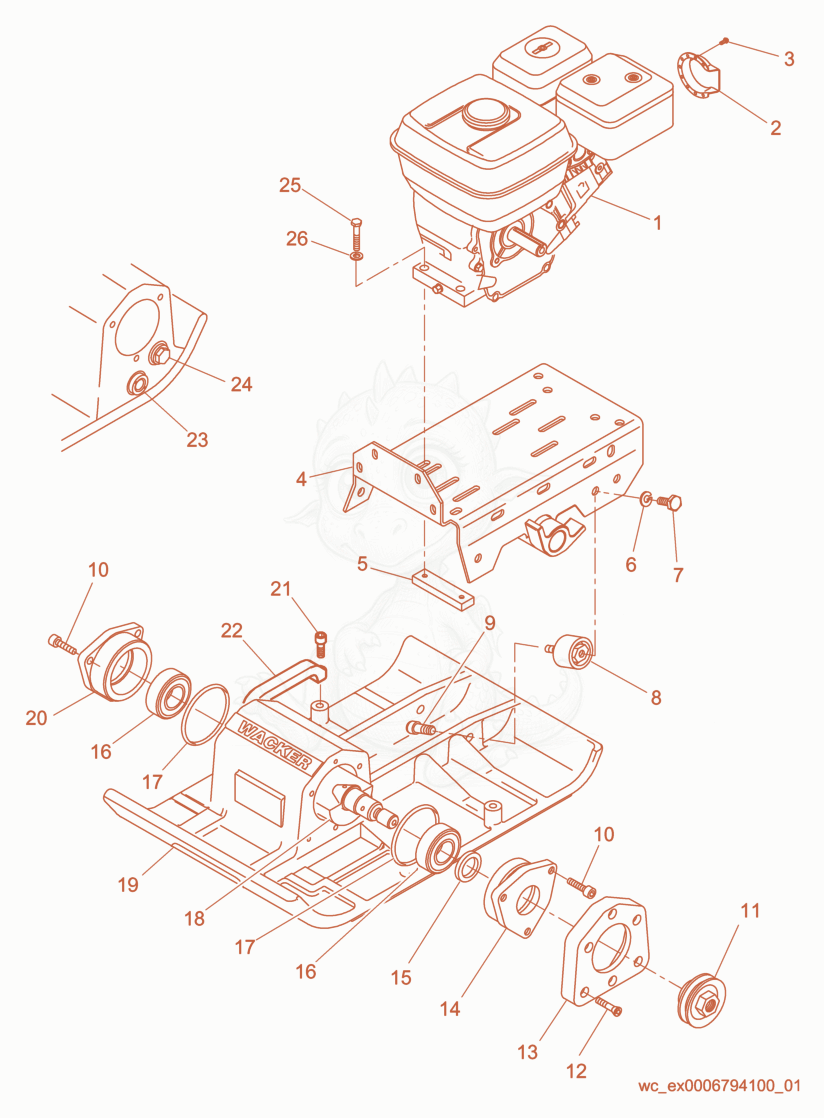

Exploded parts diagram of the Baseplate/Console cpl. of a Wacker Neuson VPA1340, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000089226Not stocked
Honda engine×1
25000081756
$30.82
BAFFLE-EXHAUST - 5000081756×1
35000071073
$0.12
SCREW M4 X 6,C - 5000071073×2
45000079714
$202.02
NLA-PLATE-CONSOLE - 5000079714×1
55000078832
$22.37
CONSOLE-BAR - 5000078832×2
65000012648
$0.14
WASHER-LOCK B12 - 5000012648×4
75000012368
$0.52
SCREW M12 X 20 HX.HD. - 5000012368×4
85000073124
$111.76
SHOCKMOUNT 50 X 54-78SH,FORM C - 5000073124×4
95000081333
$4.70
SCREW M12 X 20 12.9,SOC - 5000081333×4
105000072758
$3.73
SCREW M10 X 20 12.9,SOC - 5000072758×6
115000071173
$54.24
PULLEY-EXCITER DRIVE - 5000071173×1
125000081259Not stocked
Flat head screw×3
135000081343Not stocked
Wear plate×1
145000088697
$307.13
COVER-BEARING HOLDER,EXCITER - 5000088697×1
155000077352
$11.37
SEAL-SHAFT 30 X 47 X 7,2B - 5000077352×1
165000073427
$173.54
BEARING-CYL.ROLLER,NJ2207 ECP/C3 - 5000073427×2
175000051483Not stocked
O-Ring×2
185000071155
$331.82
NLA SHAFT-EXCITER DRIVE,13KN-RED - 5000071155×1
195000088429
$1,376.63
BASEPLATE 40CM - 5000088429×1
205000088698
$114.51
COVER-BEARING HOLDER,EXCITER - 5000088698×1
215000011535
$0.59
SCREW M10 X 25 SOC.HD. - 5000011535×4
225000077718
$30.29
CASTING-LIFTING HANDLE,VPX - 5000077718×2
235000013971
$13.13
SIGHTGLASS - 5000013971×1
235000032006
$2.09
SEAL-RING 26 X 31 - 5000032006×1
245000024838
$30.76
PLUG M26 X 1.5 HX.HD. - 5000024838×1
245000032006
$2.09
SEAL-RING 26 X 31 - 5000032006×1
255000011454
$0.22
SCREW M8 X 40 HX.HD. - 5000011454×4
265000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×4
