VPA1340-VIBROPLATE

VPA1340 Guide Handle cpl. Diagram

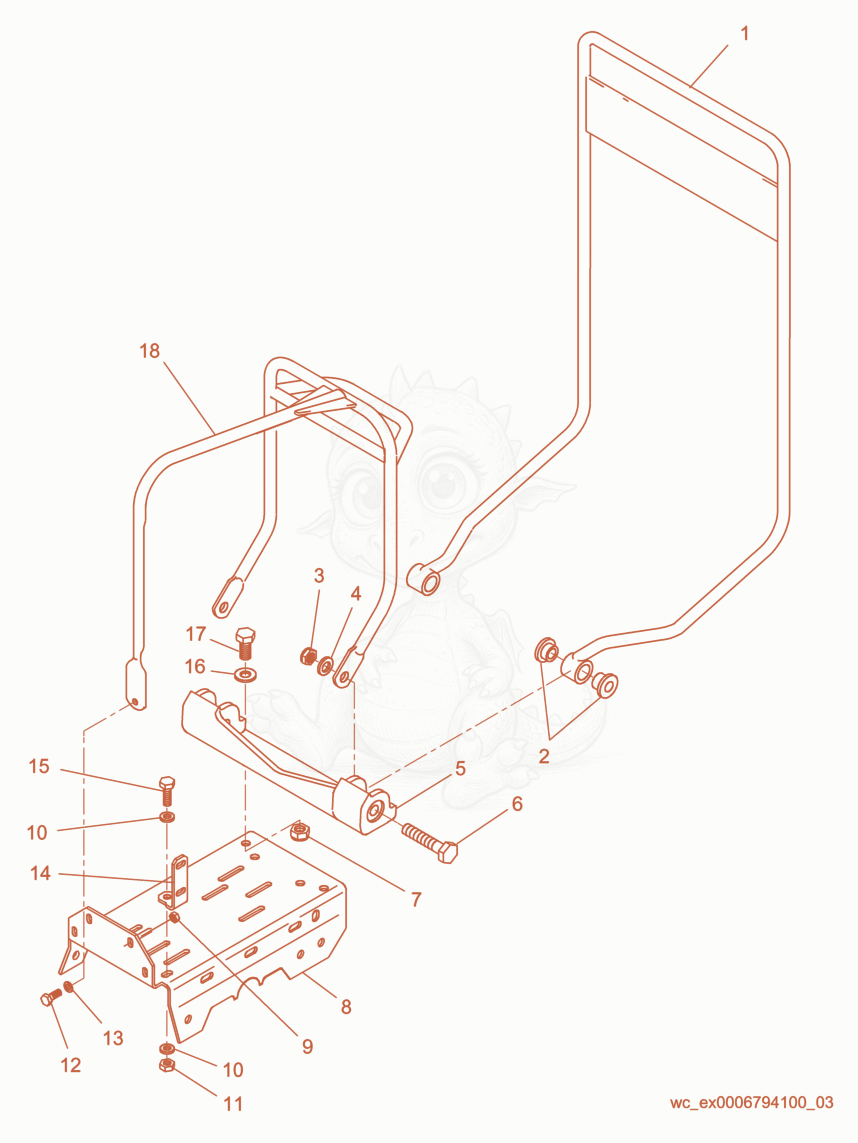

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson VPA1340, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110576
    $600.20
    HANDLE-GUIDE P-5000112007 - 5000110576×1
  • 25000079712
    $1.20
    Bushing - 5000079712×4
  • 35000013496
    $0.97
    NUT-LOCK M16 HEX. - 5000013496×2
  • 45000010618
    $0.28
    WASHER B17 FLAT - 5000010618×2
  • 55000118634
    $221.02
    NLA HANDLE-MOUNT - 5000118634×1
  • 65000011382
    $2.18
    SCREW M16 X 90 HX.HD. - 5000011382×2
  • 75000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 85000079714
    $202.02
    NLA-PLATE-CONSOLE - 5000079714×1
  • 95000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×1
  • 105000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×2
  • 115000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 125000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 135000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 145000079968
    $16.95
    BRACKET-MOUNT,BACKPLATE - 5000079968×1
  • 155000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×1
  • 165000010620
    $0.26
    WASHER B13 FLAT - 5000010620×4
  • 175000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 185000079708
    $471.50
    FRAME-LIFT CAGE P-5000112007 - 5000079708×1
