VPG165V-VIBROPLATE,18 WIDE

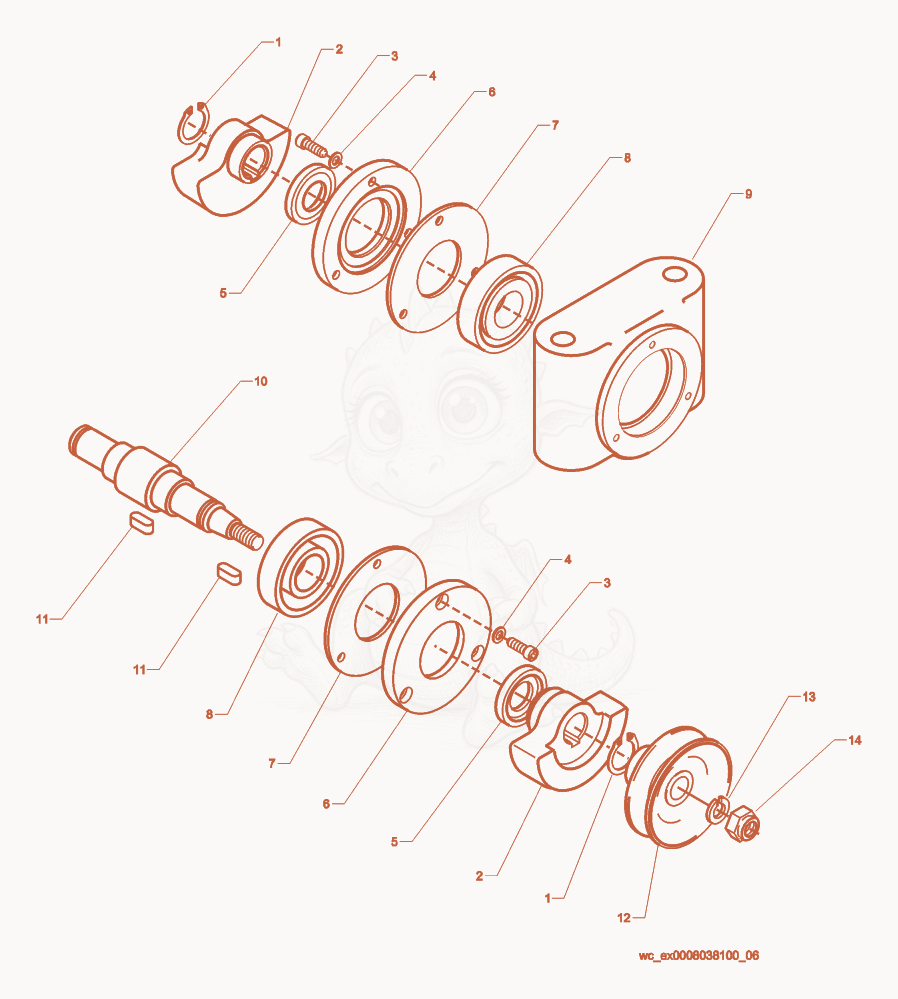

VPG165V Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson VPG165V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15002001837
    $0.35
    Circlip(RET.RING-EXT 24MMX1.2MM, - 5002001837×2
  • 25003006111
    $196.77
    WEIGHT-ECCENTRIC - 5003006111×2
  • 35000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×9
  • 45000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×6
  • 55000029292
    $4.38
    SEAL-SHAFT 35X47X7 - 5000029292×2
  • 65000029032
    $141.89
    COVER-EXCITER BEARING - 5000029032×2
  • 75003009772
    $4.69
    GASKET - 5003009772×2
  • 85002005631
    $294.36
    BEARING-CYL.ROLLER,NJ306ECP C3 - 5002005631×2
  • 95000028999
    $817.76
    HOUSING-EXCITER PILLOW BLOCK - 5000028999×1
  • 105000029033
    $367.22
    SHAFT-EXCITER DRIVE - 5000029033×1
  • 115002001531
    $0.44
    KEY A8 X 7 X 20 - 5002001531×2
  • 125000088616
    $199.16
    PULLEY-EXCITER DRIVE - 5000088616×1
  • 135000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×1
  • 145000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×1
