VPG165V-VIBROPLATE,18 WIDE

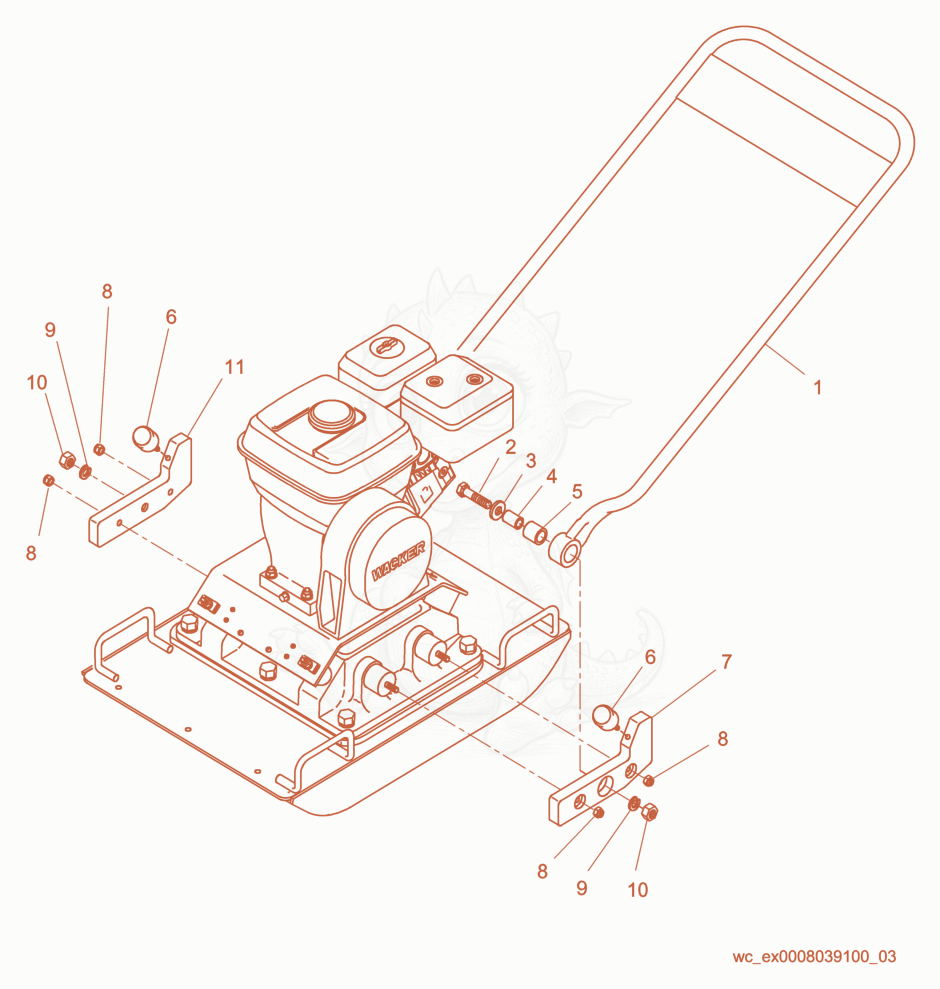

VPG165V Guide Handle cpl. Diagram

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson VPG165V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110179
    $403.26
    GUIDE HANDLE-WELDMENT P-5000112007 - 5000110179×1
  • 25000011301
    $0.85
    SCREW M12 X 50 HX.HD. - 5000011301×2
  • 35000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×2
  • 45000029001
    $7.07
    BUSHING-HANDLE MOUNTING - 5000029001×2
  • 55003007042
    $0.62
    BUSHING-NYLON - 5003007042×2
  • 65000058648
    $7.08
    SHOCKMOUNT 25 X 8.5,FORM D - 5000058648×2
  • 75000110173
    $257.53
    BRACKET-HANDLE MOUNT,LEFT - 5000110173×1
  • 85000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 95000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×2
  • 105000010884
    $0.26
    NUT M12 8,HEX - 5000010884×2
  • 115000110174
    $257.53
    BRACKET-HANDLE MOUNT,RIGHT - 5000110174×1
